ADJ Saber Spot WW

(0)No Reviews yet
$164.99
SKU: ADJ SAB605

Details

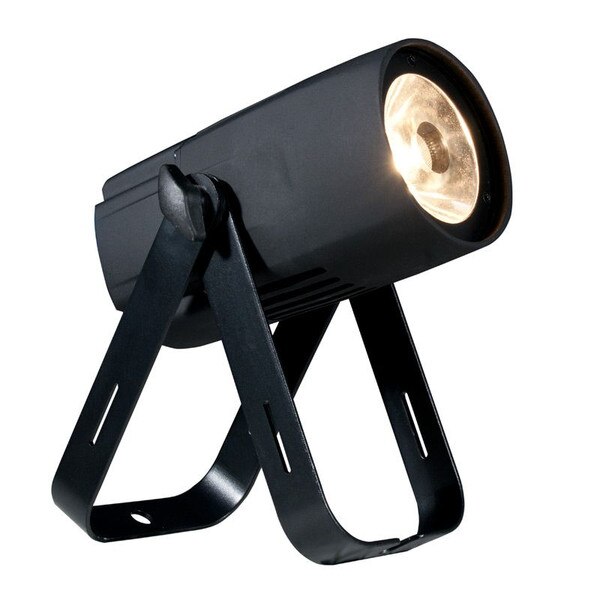

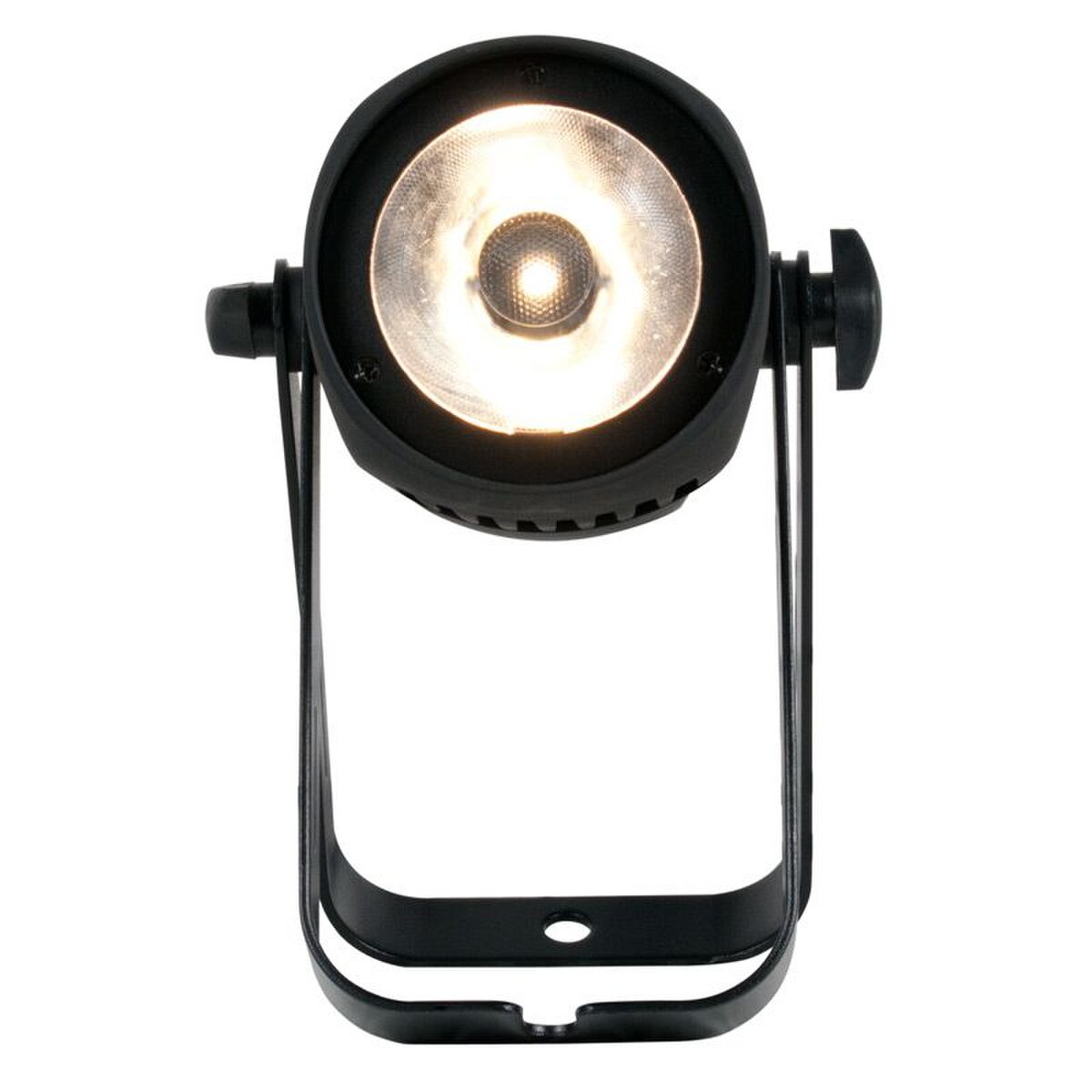

The Saber Spot WW is a compact Pinspot with a 15-Watt warm white LED. Features DMX-512, flicker-free operation, strobing, electronic dimming and has a 4-Button DMX display system on the rear panel. Its built-in ACL lens produces a razor sharp 4-degree beam angle.


The Saber Spot WW has a scissor bracket system that allows the fixture to be hung or set on the ground, and is ideal for performance stages, installations, table spotting, lighting retail stores.

Specifications:
Optical:

  • Light Source: 15-Watt Warm White LED
  • LED Life Expectancy: 10,000 Hrs
  • Beam Angle: 4-degrees

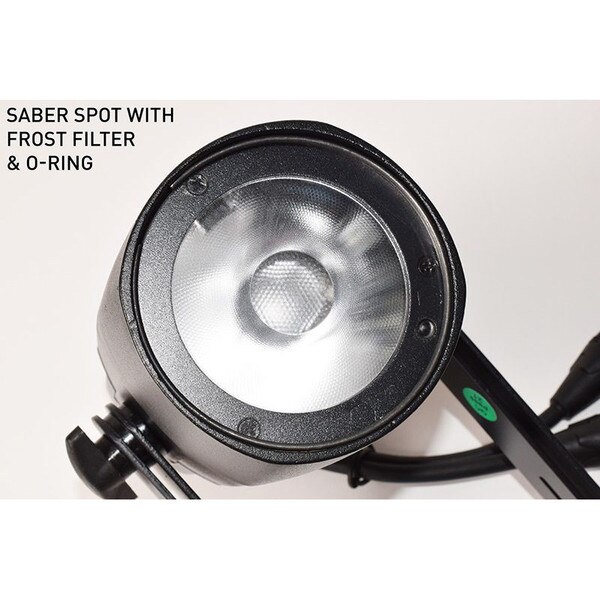

  • Includes 2 interchangeable frost filter lens (10-degree & 45-degree)
  • Refresh Rate: 3.6KHz

Technical Features:

  • 4-button Digital Display for easy navigation
  • Electronic Dimming 0 – 100%
  • Flicker Free
  • Includes a scissor yoke to be hung or set on the ground

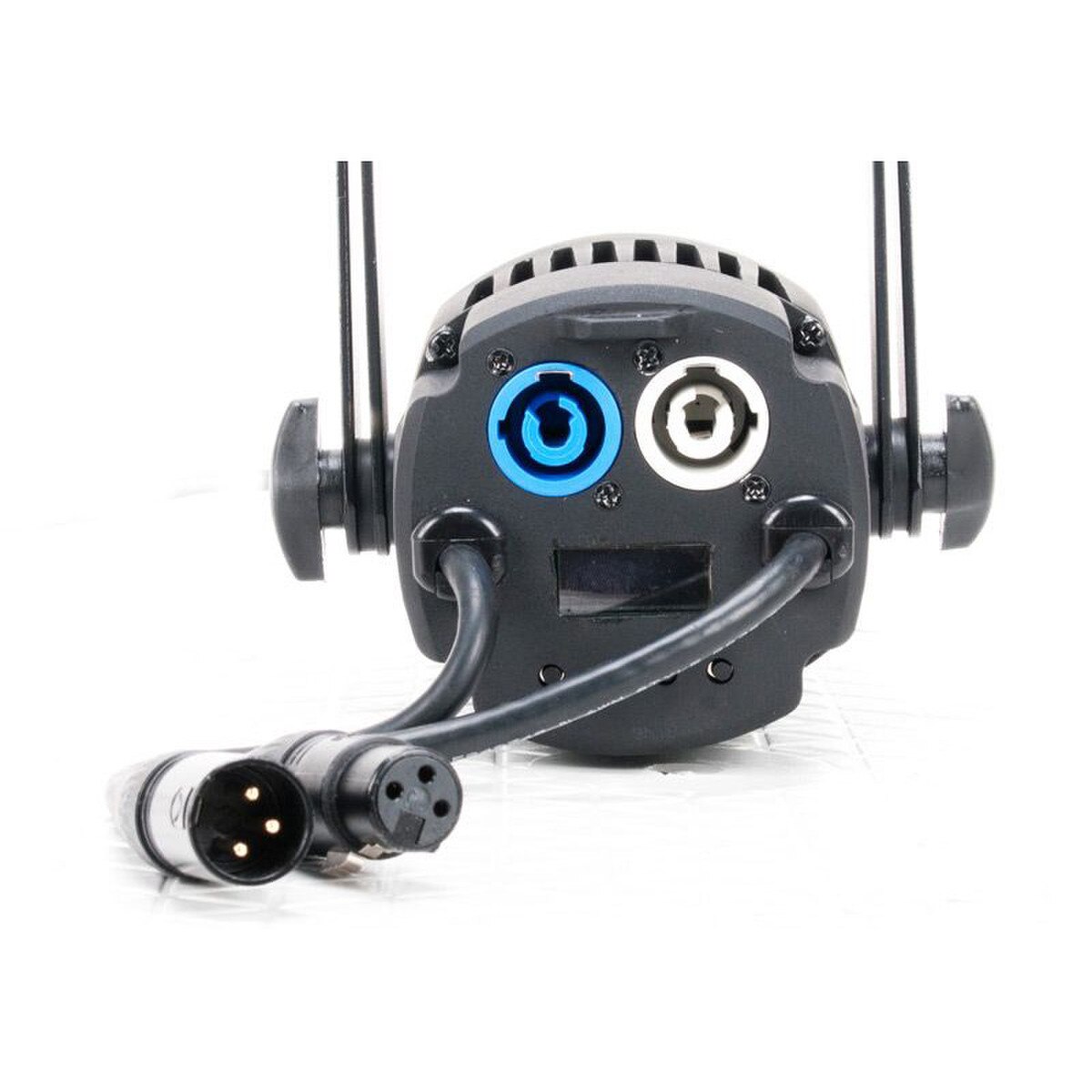

Connections:

  • Power Input: locking connection
  • Power Pass through: locking connection
  • Control: 3 Pin DMX In/Out pigtails
  • With Wired Digital Communication Network

Control:

  • 2 DMX Channel Modes: 1 or 2
  • RDM (Remote Device Management)

Electrical:

  • Input Voltage: 100-240V 50Hz/60Hz (Auto Sensing)
  • Power draw 120V 60Hz: 15W, 0.13 Amps
  • Power draw 220V 50Hz: 15W, 0.07 Amps

Physical:

  • Dimensions (LxWxH): 3.5” x 6.75” x 3.5” / 88 x 170 x 87mm
  • Weight: 2.6 lbs / 1.2 kg.
  • Metal Black Housing

Certifications:

  • ETL Approved, UL, CE
  • IP 20: Dry area, No liquids

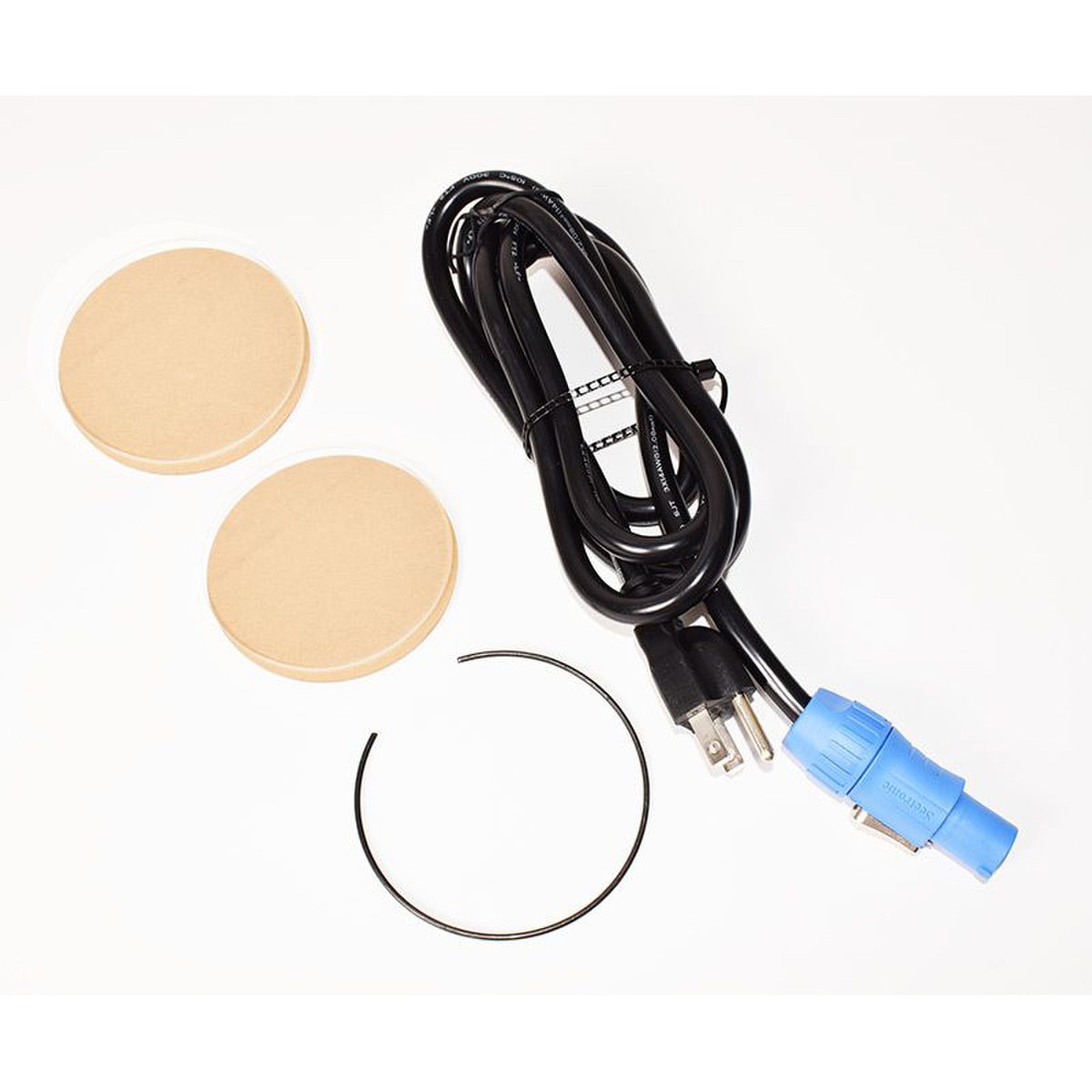

What’s Included:

  • Manual
  • Locking power cord
  • 2 frost filter lens (10-degree & 45-degree)
  • O-ring for frost filter lens

Optional Accessories:

  • PLC 3,PLC 6, PLC 10 (powerCON passthrough cables)






ADJ Saber Spot WW Cut Sheet.pdf
ADJ Saber Spot WW User Manual.pdf
ADJ Saber Spot WW Photometric Test Reports.pdf
ADJ Saber Spot CAD Drawing.pdf
