Blizzard Komply DMX 4 Channel RGBW Dimmer and Strobe Controller

(0)No Reviews yet
$99.99
SKU: Blizzard Komply DMX

Details

At A Glance:

  • Easy to mount and configure
  • DMX address configurable via dip switches
  • 256 level brightness control

4-channel DMX Decoder:

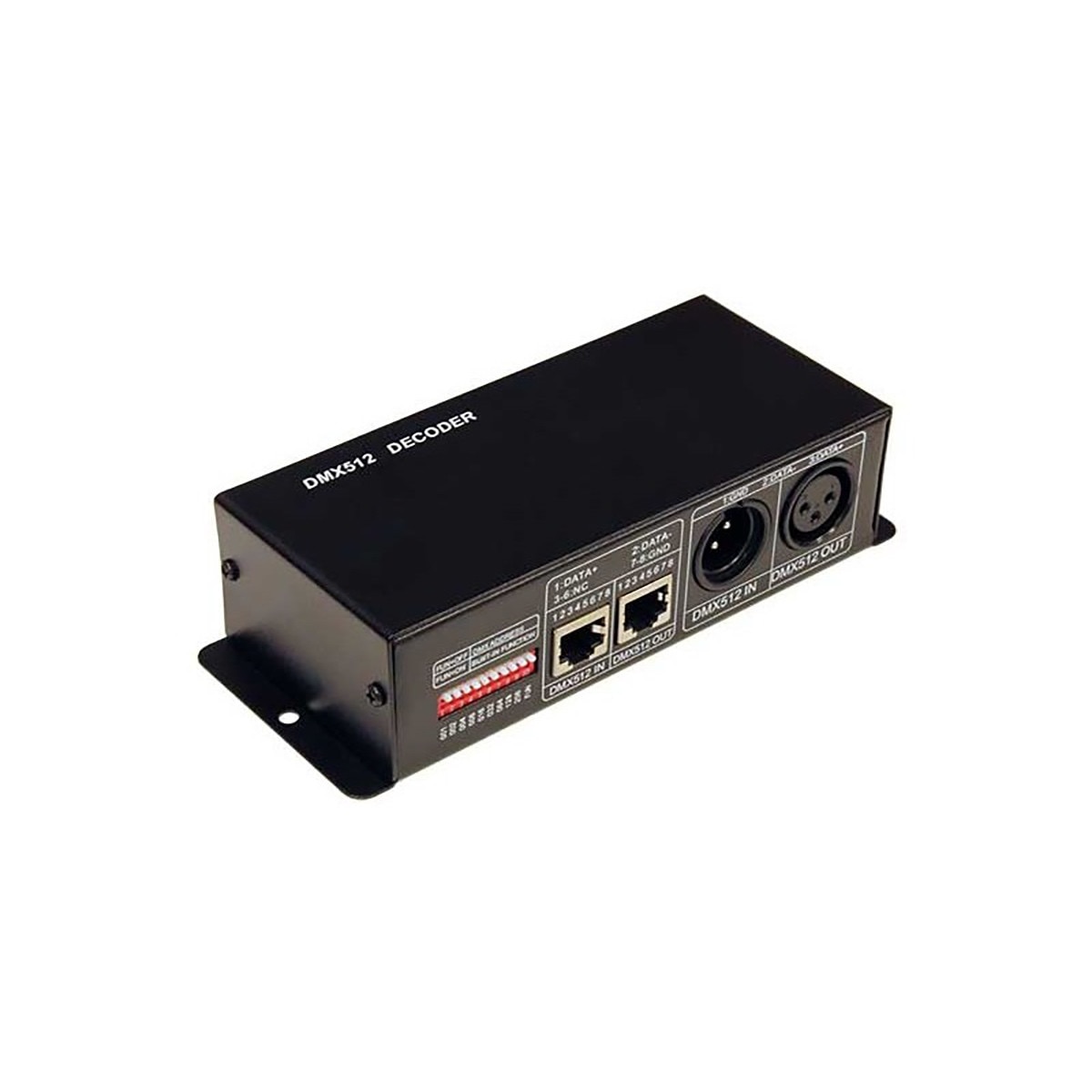

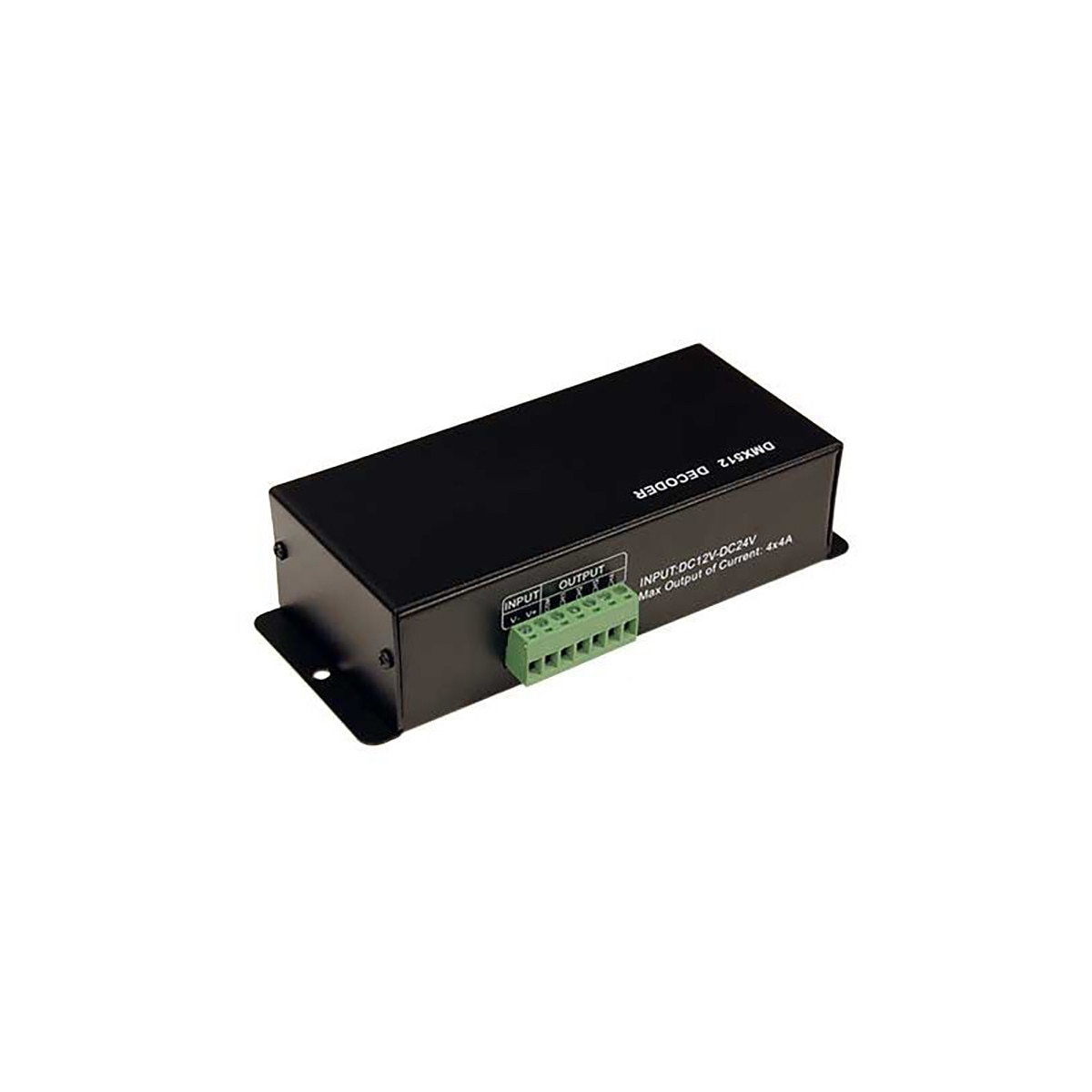

This is a 4-channel DMX512 decoder that can control up to 4 different 12V LED ribbon products or any one RGB(W) LED strip. It can run in stand-alone mode by via the DIP switches or under DMX512 control using XLR or RJ45 DMX512 Input/Output connections.

It converts DMX signal to PWM signal, which can be controlled by a DMX512 console with 256-grayscale levels per channel. It also includes one male, and one female 3-pin XLR connector.

Overview:

  • DMX In/Out: RJ45 and XLR
  • 7x static colors + auto in standalone
  • Grayscale: 256/channel

Power:

  • Input voltage: 12V to 24V
  • Input DMX Signal: DMX512/1990 digital
  • Output Signal: 4 channels @ up to 4A per channel
  • Output power: 12V:<108W, 24V:<192W

Warranty:

  • 2-year limited warranty

Dimensions & Weight:

  • 6.5" L x 2.6" W x 1.6" H
  • 0.9 lbs

komply-dmx_manual_rev_b.pdf
komply-dmx_cutsheet.pdf
