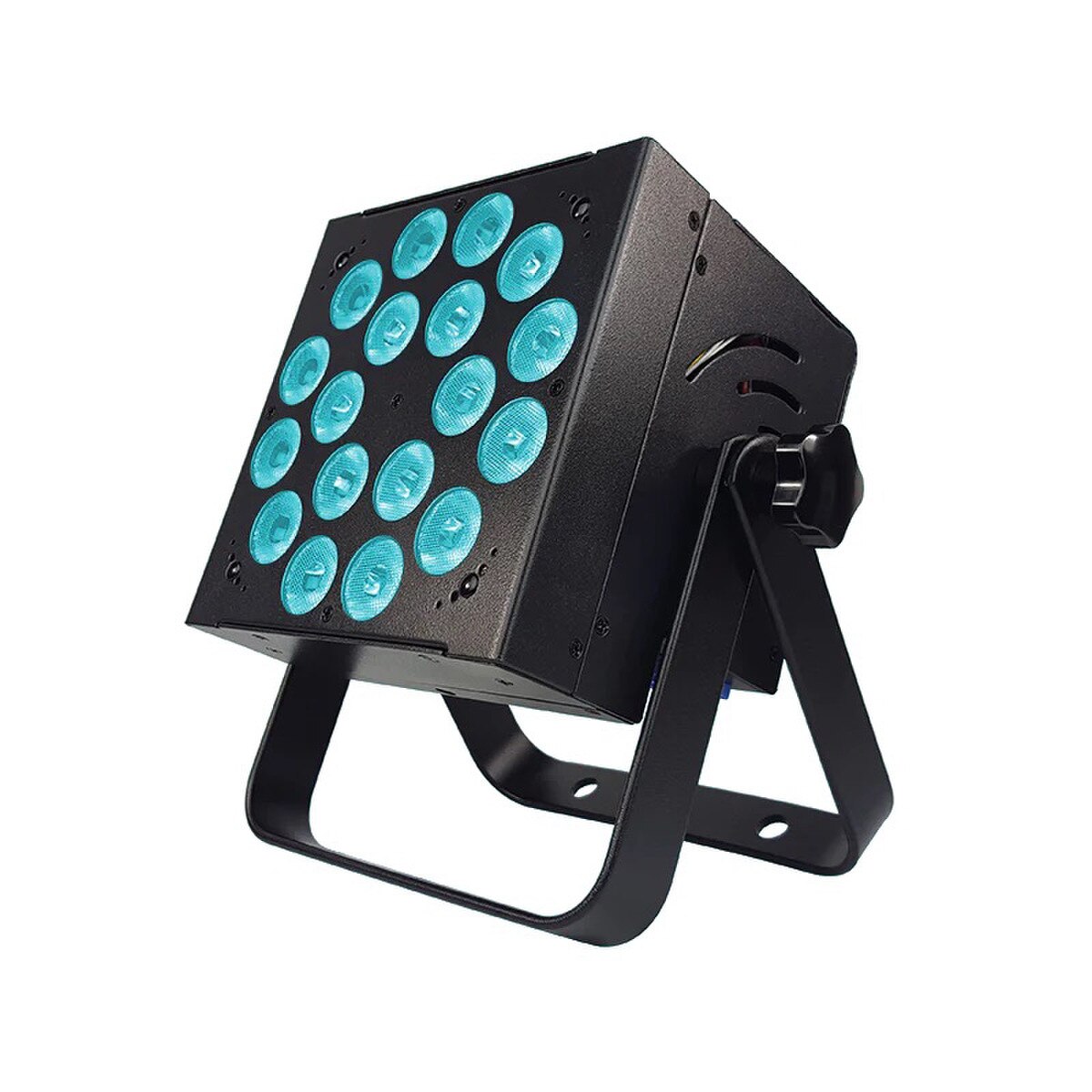

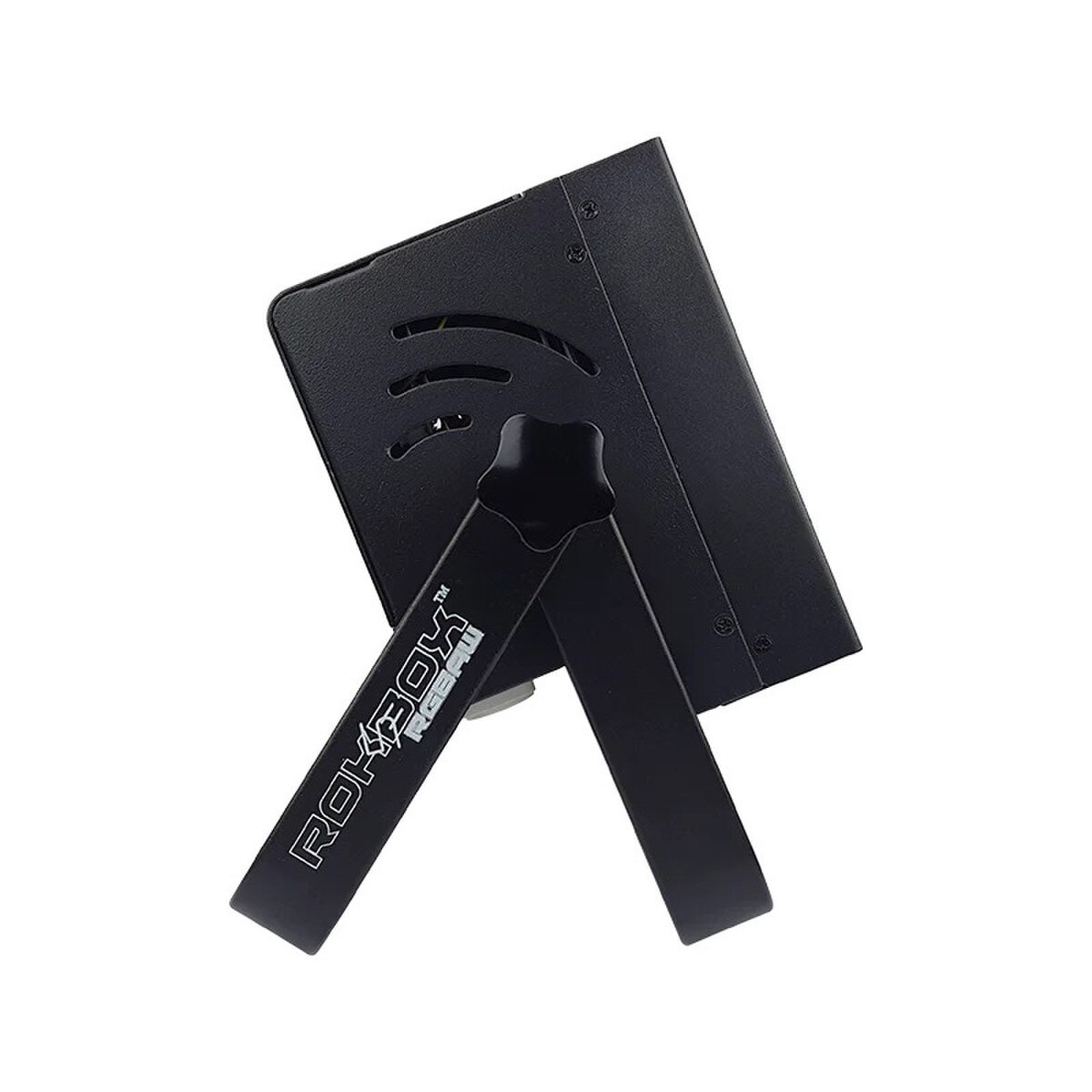

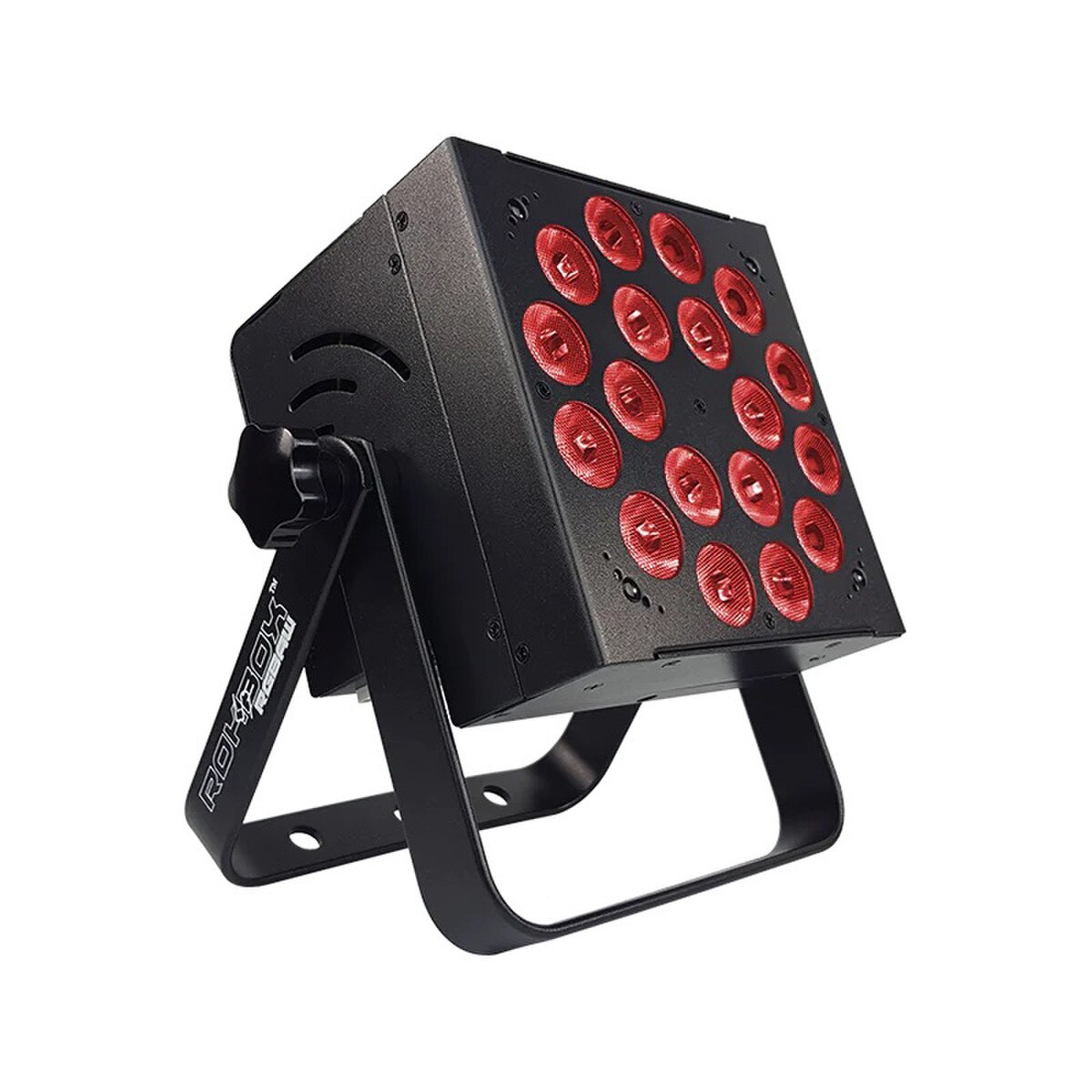

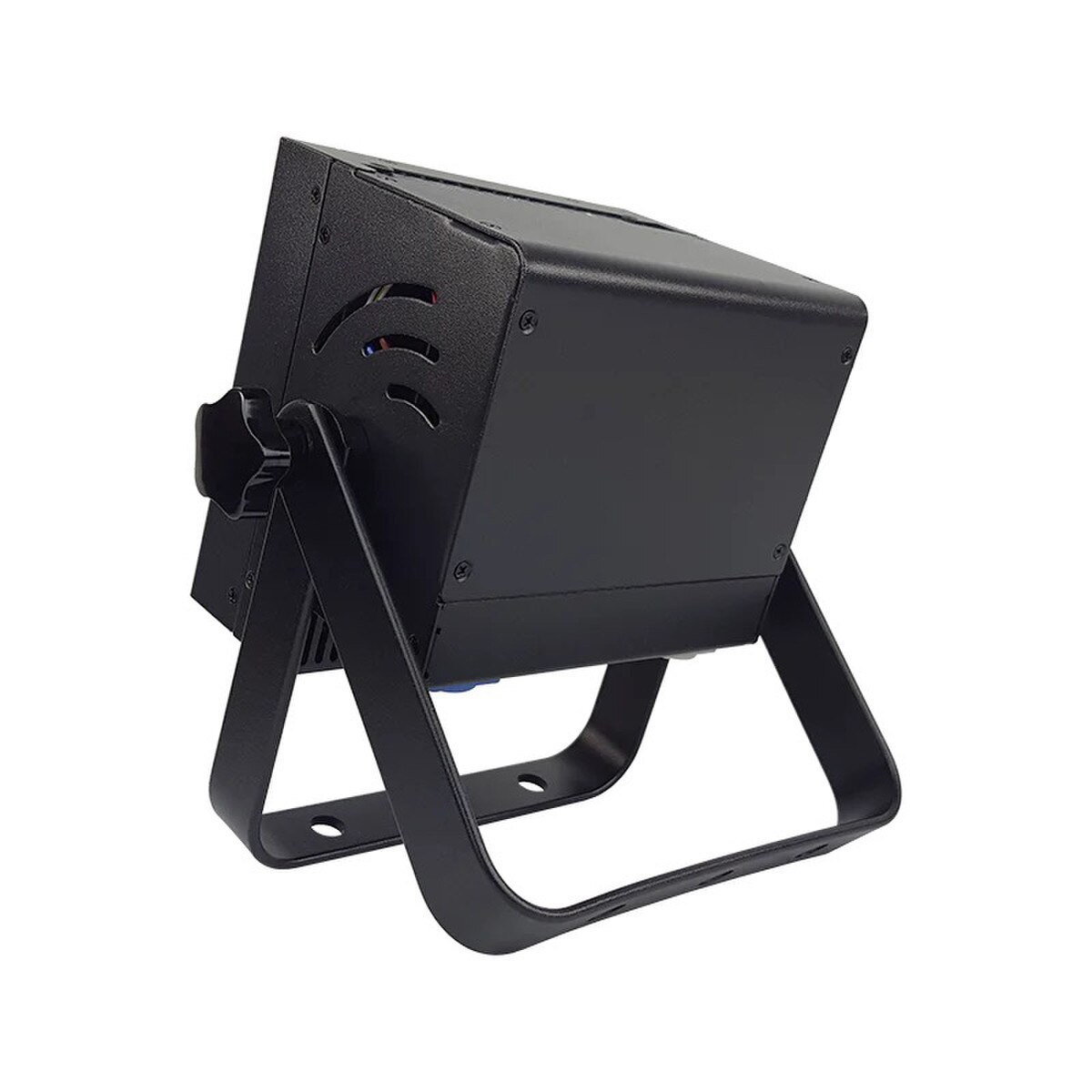

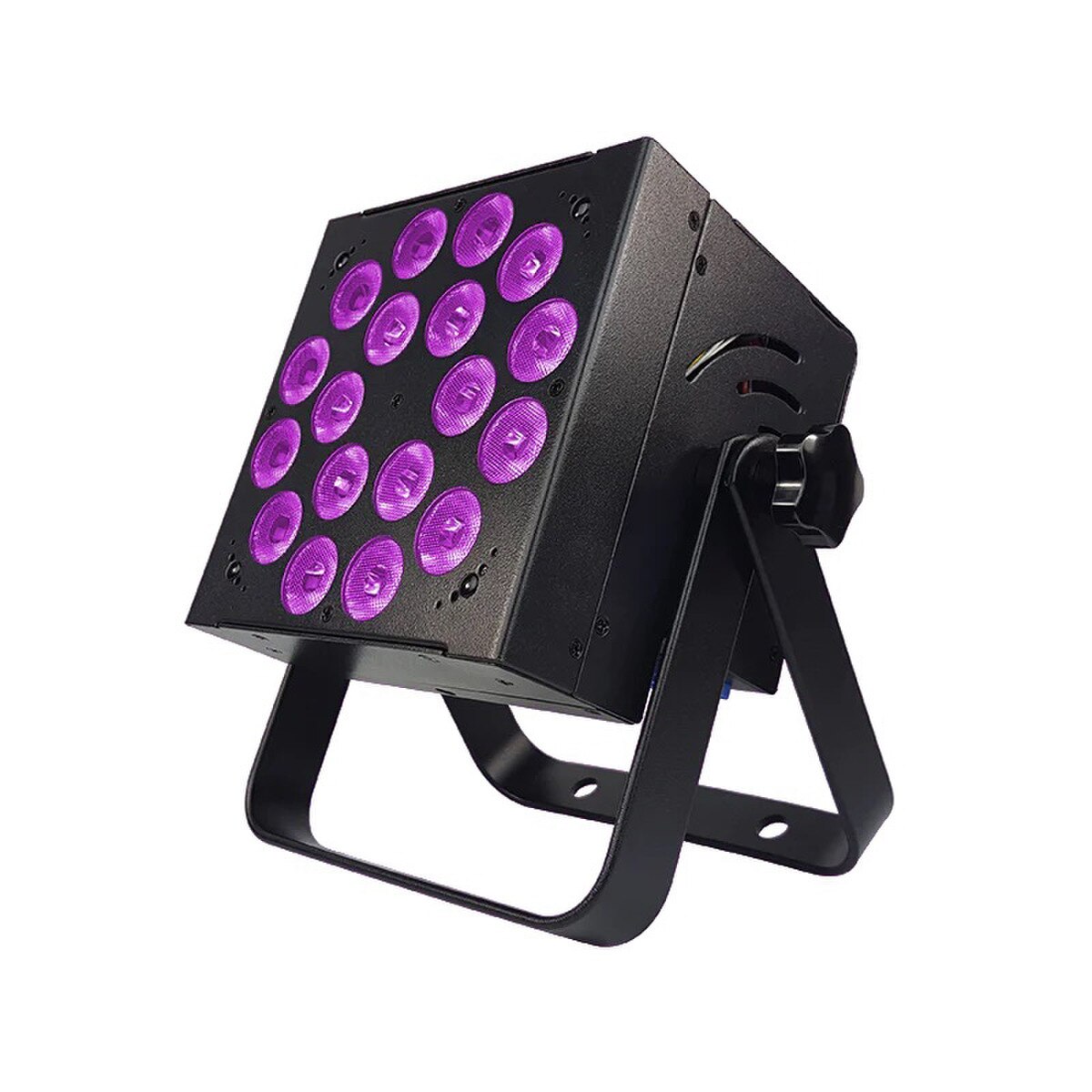

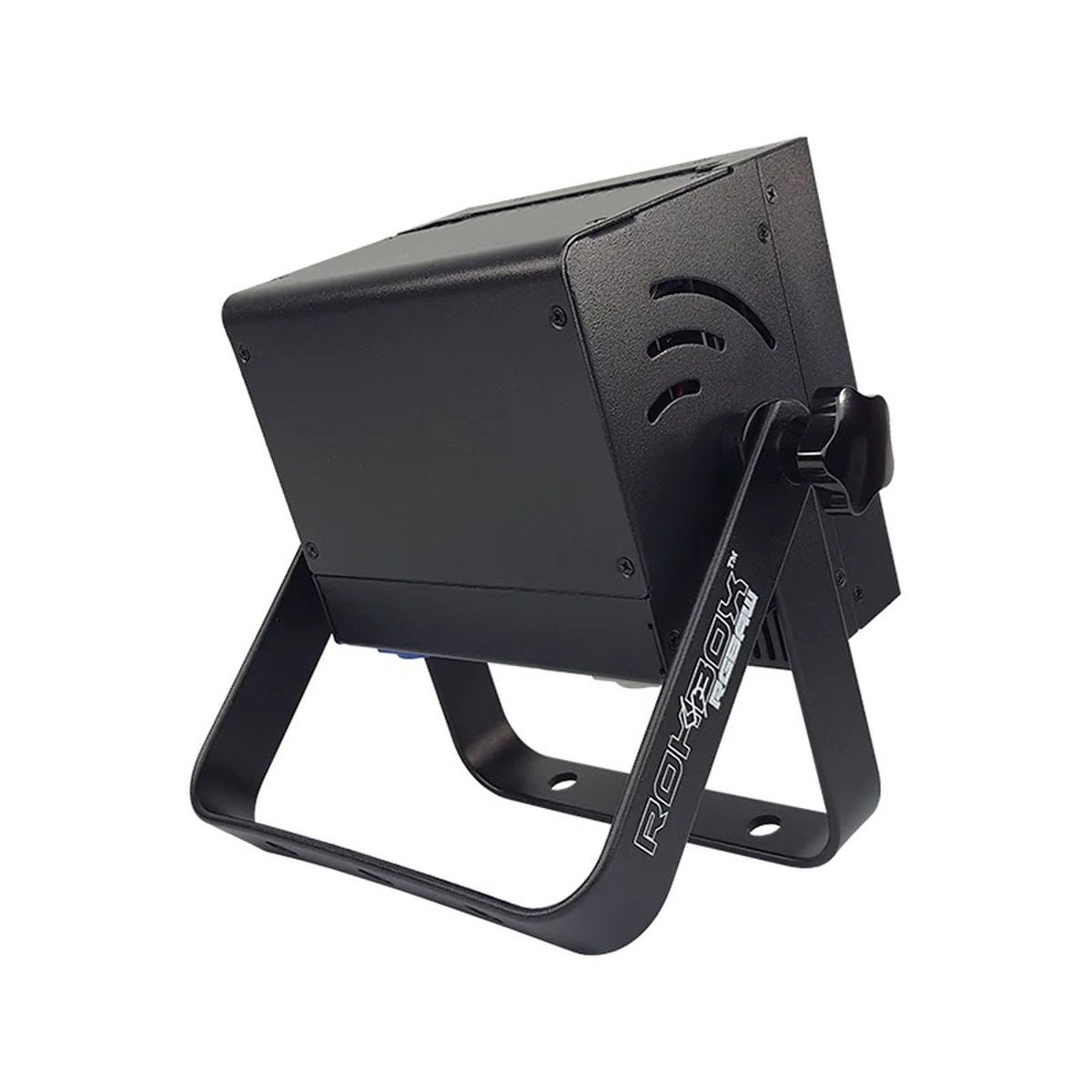

Blizzard RokBox 5 LED RGBAW 5-In-1 Par Fixture w/ DMX Dimmer & Strobe Effects
Details
The RokBox 5 RGBAW features 4/5/9 or 10 DMX channel modes, which means it works great with any type of controller, including Blizzard's 4-channel Klimate Kontrol lighting controller. You'll have full control of all that RokBox 5 has to offer such as RGBAW color mixing, 31 built-in programs, ultra smooth flicker-free 32-bit dimming (5 user-selectable dimming curves), and even easy HSV color mixing ability in 4-channel mode.
Features:
- RGBWA color mixing via 18x 15W Red/Green/Blue/Amber/White 5-in-1 LEDs
- 5 user-selectable 32-bit dimming curves
- Variable electronic dimming and strobe
- Built-in color and chase macros via DMX
- Built-in automated programs via master/slave
- Built-in sound active programs
- RGBAW color mixing ability in standalone mode
- Super-quiet variable-speed internal fan cooling
- Dual mounting brackets for positioning flexibility
- Flicker-free constant-current 400hz LED driver
- 3-pin male input and 3-pin female output
- PowerCon compatible AC power In/Out connectors
Specifications:
- Operating Voltage: 90-230VAC, 50-60 Hertz
- Fuse: 3A 250V
- Power Consumption: 154W
- LED: 18x 15W 5-in-1 LEDs 100,000 hours
- Beam Angle: 25 degrees optics standard, 26 degrees beam, 30 degrees field
- Max. Operating Temp.: 104 degrees F (40 degrees C) ambient
- Protocol: USITT DMX-512
- DMX Channels: 4/5/9/10
- Input: 3-pin XLR Male
- Output: 3-pin XLR Female
- HSV (4-Ch), RGBAW (5-Ch), Extended (9-Ch), and Extended plus 32-bit Dimming (10-Ch) DMX Profiles
- Operating Modes: Standalone, Master/Slave, Sound Active, Color Preset
- Length: 9.22" (234 mm)
- Width: 6.5" (165 mm)
- Height: 8.98" (228 mm)
- Weight: 7.28 lbs (3.3 kg)
- 2-year limited warranty, does not cover malfunction caused by damage to LED's
