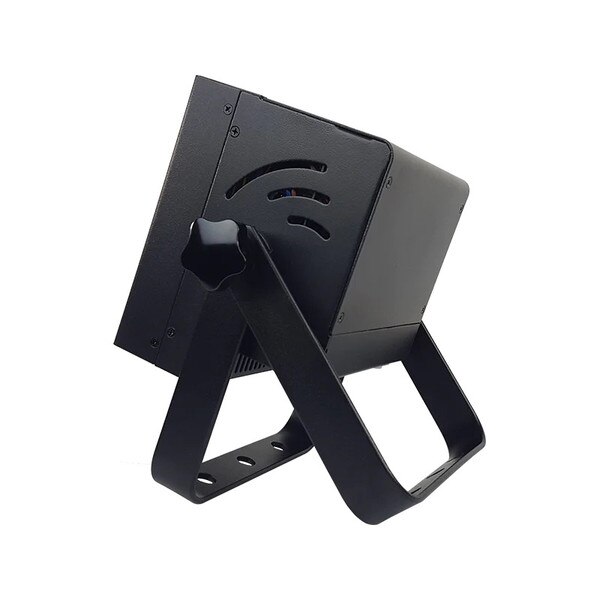

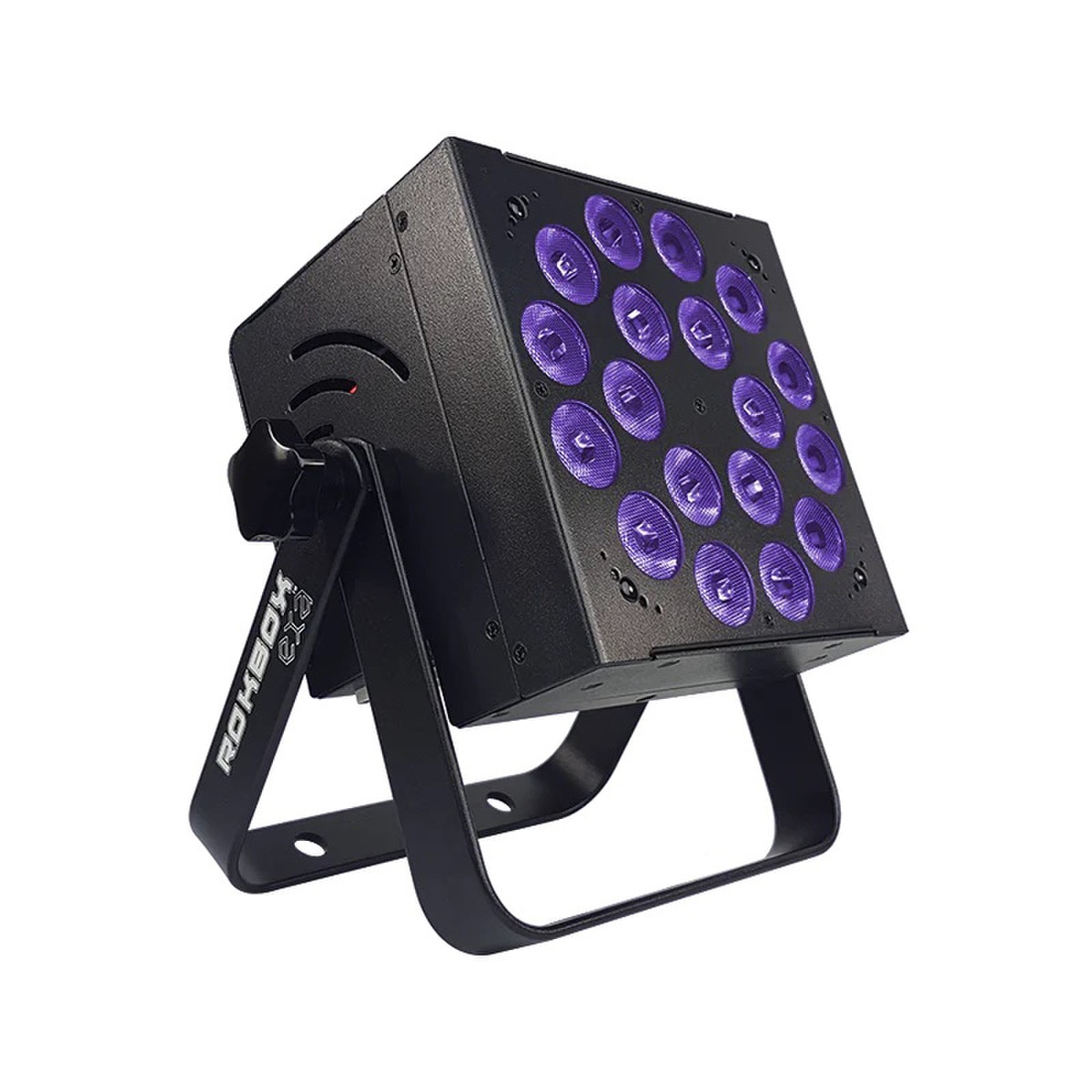

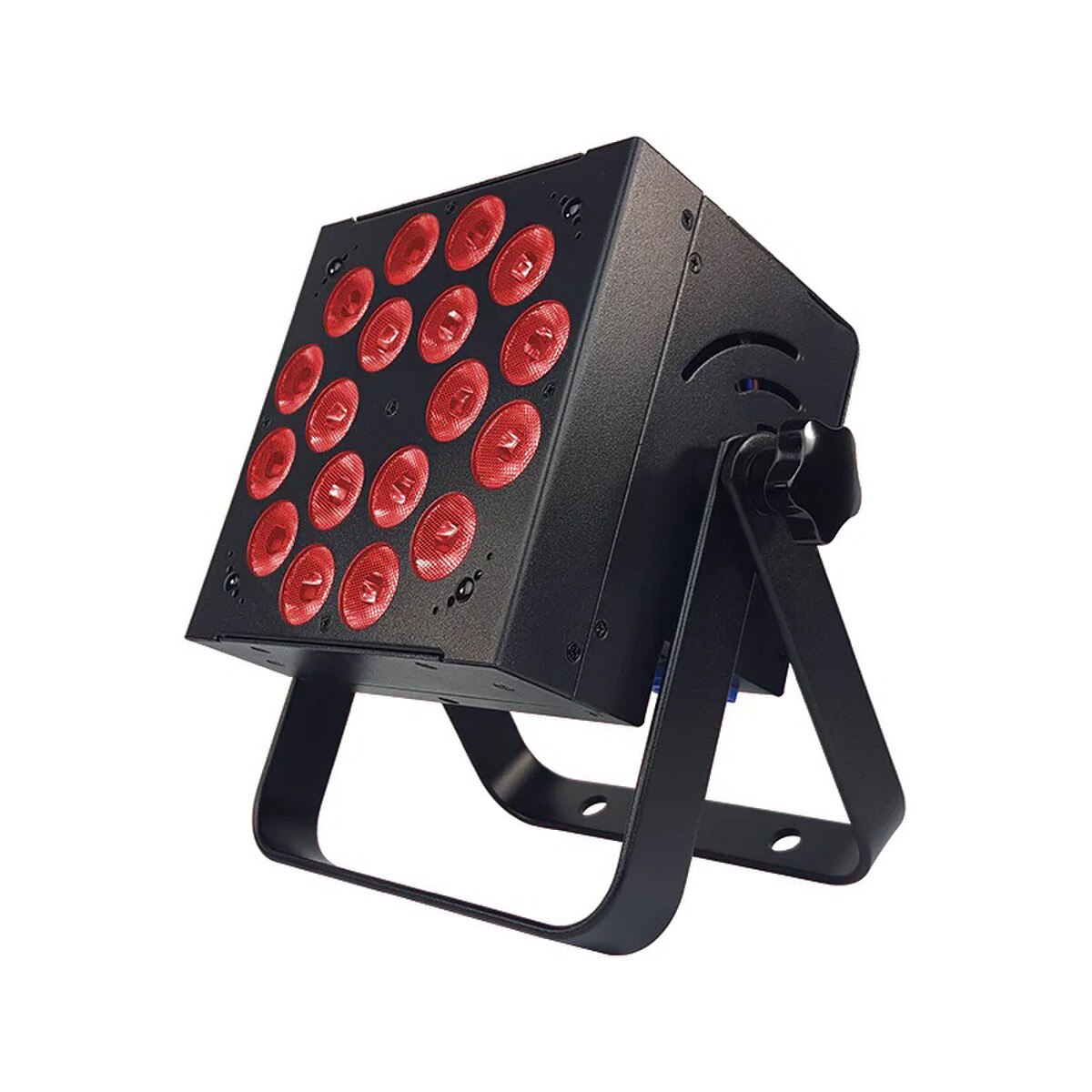

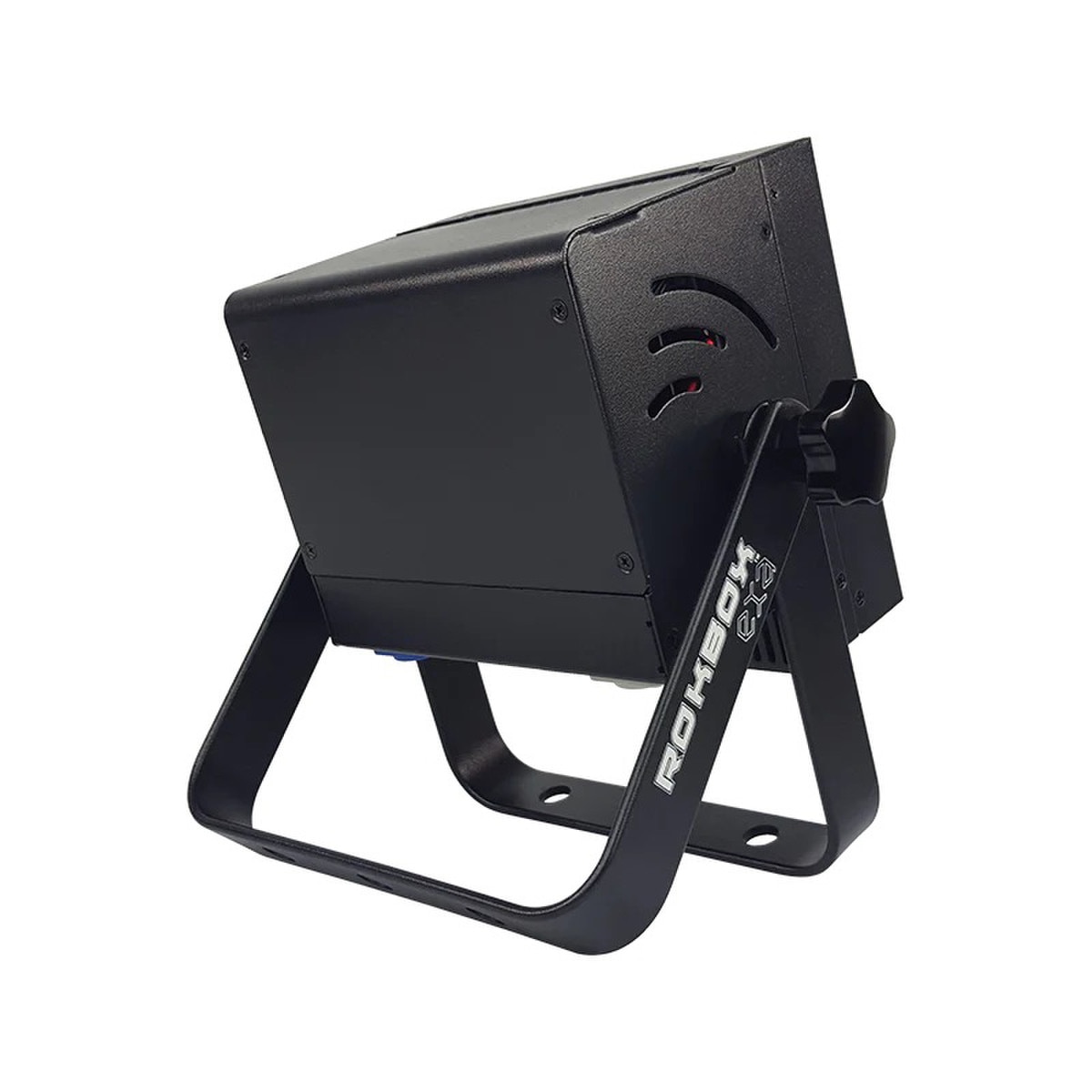

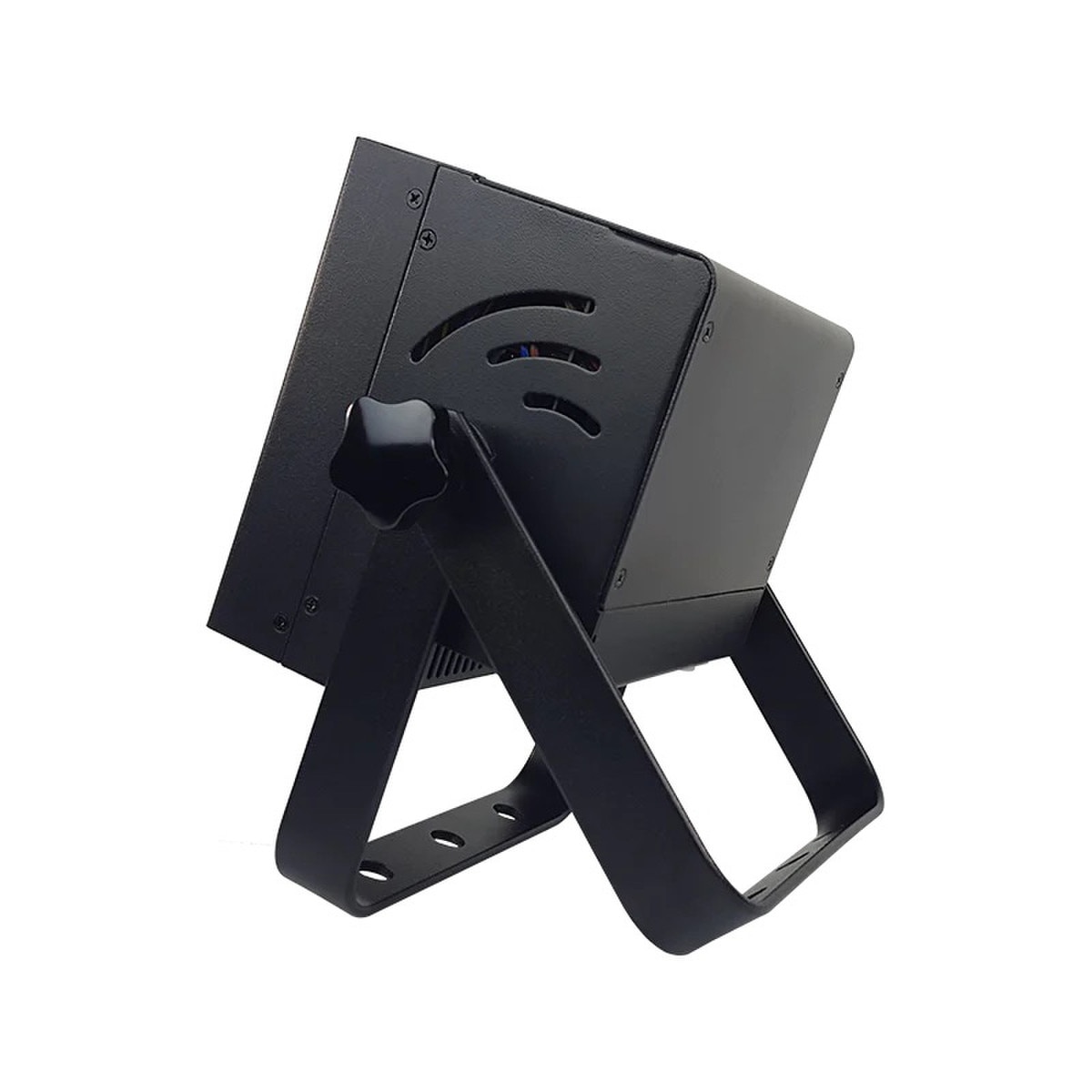

Blizzard SkyBox 5 LED RGBAW Par Fixture w/Rechargeable Battery & Wireless DMX
Details
The SkyBox 5 features 5/6/7 and 10-channel control modes which works great with any type of controller, especially Blizzard's very own built-in Skywire wireless DMX receiver with built-in wireless transmitter. Plus, the built-in 4 character/4 button LCD control panel allows total control over the fixture, including master/slave, auto mode, fade, strobe settings, manual color adjustment, sound active mode, wireless ID settings, IR remote control mode, and power output mode settings.
The SkyBox 5's Lithium-Ion internal battery system which allows the user to select one of 3 power output mode settings.
Features:
- Color mixing via 7x 15W Red/Green/Blue/Amber/White 5-in-1 LEDs
- 2.4Ghz built-in wireless DMX receiver
- Intelion lithium-ion battery system
- 3 battery power modes
- IR remote control (sold separately)
- 5 user-selectable 32-bit dimming curves
- Variable electronic dimming and strobe
- Built-in color and chase macros via DMX
- Built-in automated programs via master/slave
- Built-in sound active programs
- RGBAW color mixing ability in standalone mode
- Rugged and well-built
- Super-quiet variable-speed internal fan cooling
- Dual mounting brackets for positioning flexibility
- Flicker-free constant-current 400hz LED driver
- 3-pin male input and 3-pin female output
- PowerCon compatible AC power In/Out connectors
Specifications:
- Operating Voltage: 90-230VAC, 50-60 Hertz
- Power Consumption: 84W, 13A
- LED: 7x 15-watt, 5-in-1 RGBAW LED's
- Beam Angle: 25 degrees , 29 degrees field
- Max. Operating Temp.: 104 degrees F (40 degrees C) ambient
- Protocol: USITT DMX-512
- DMX Channels: 5/6/7/10 (User Selectable)
- Input: 3-pin XLR Male
- Output: 3-pin XLR Female
- Operating Modes: Standalone, Master/Slave, Sound Active, Color Preset
- Length: 9.02" (229 mm)
- Width: 6.5" (165 mm)
- Height: 9" (228 cm)
- Weight: 9.9 lbs (4.5 kg)
Wireless Receiver:
- Transmission band: 2.4Ghz ISM (2.4-2.525Ghz)
- Channels: 512
- Frequency Groups: 7
- Receiver sensitivity: -94dBm
Warranty:
- 2-year limited warranty, does not cover malfunction caused by damage to LED's
