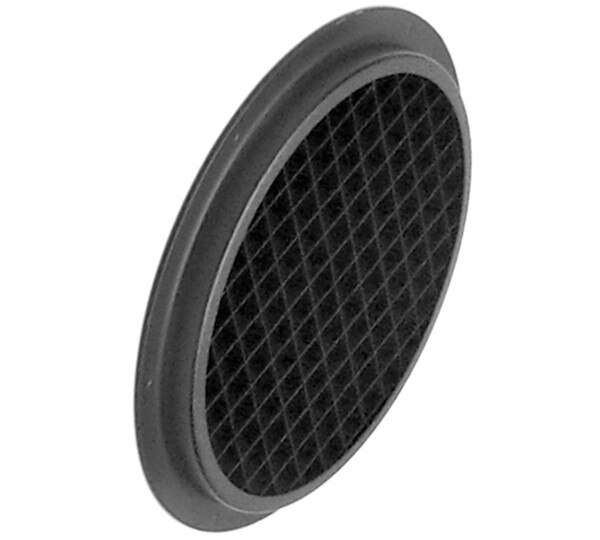

City Theatrical D-22 Egg Crate Louver White

Egg Crate Louvers serve a similar function to a Top Hat, but do so in only 1/2" of depth. A 45 degrees cut-off is obtained by using cells that are 1/2" x 1/2", by 1/2" deep. Egg Crate Louvers drop into Accessory Holders, and give a sleek appearance to the lighting fixture while providing good beam control.

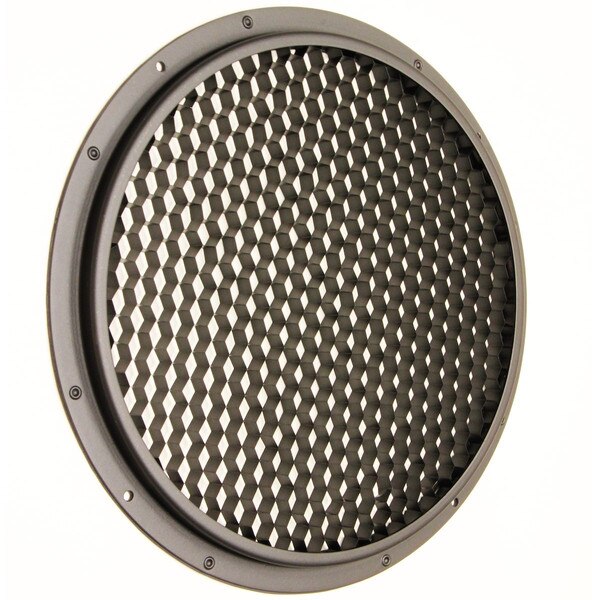

Note: City Theatrical can create custom Egg Crate and Hexcel Louvers for any lighting fixture. Call for information.

Features:

• Prevents lens glare-provides 45 degrees cutoff angle
• Designed for architectural applications with Source Four PAR fixtures
• White finish
• Round shape for clean appearance
• 1/2” by 1/2” grid, 1/2” deep
• Fabricated from light gauge steel

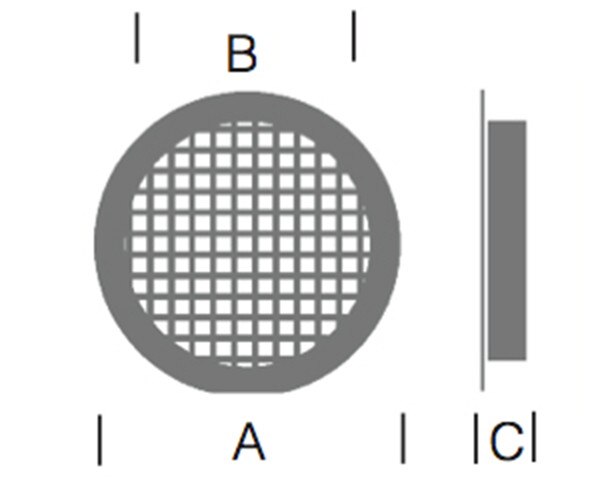

Specifications:

• A: 5.55"
• B: 4.69"
• C: 0.3125"

Beam-Control-Accessory-Sizing-for-ETC-Lenses (3).pdf
