City Theatrical DMXcat Multi-Function Test Tool

City Theatrical‘s DMXcat^® Multi Function Test Tool system is designed for use by the lighting professional who is involved with the planning, installation, operation, or maintenance of theatrical and studio lighting equipment. The system consists of a small hardware interface device and a suite of mobile applications. Together, they combine to bring  DMX/RDM control plus several other functionalities to the user’s smartphone for use wherever and whenever they are needed. Developed with input from designers and technicians, the DMXcat is an indispensable tool for lighting users.

DMXcat can function in seven languages: Spanish, French, German, Italian, Korean, Japanese, and English. DMXcat works with: Android,  iPhone, and Amazon Fire.

DMXcat hardware is built into every Multiverse® Transmitter. This means you can now access, configure, and control your Multiverse Transmitter with the free DMXcat app. DMXcat technology means that you no longer have to touch or even be close to your Multiverse Transmitter to make changes to it. Update your current DMXcat app or download it today to connect your Multiverse Transmitter.

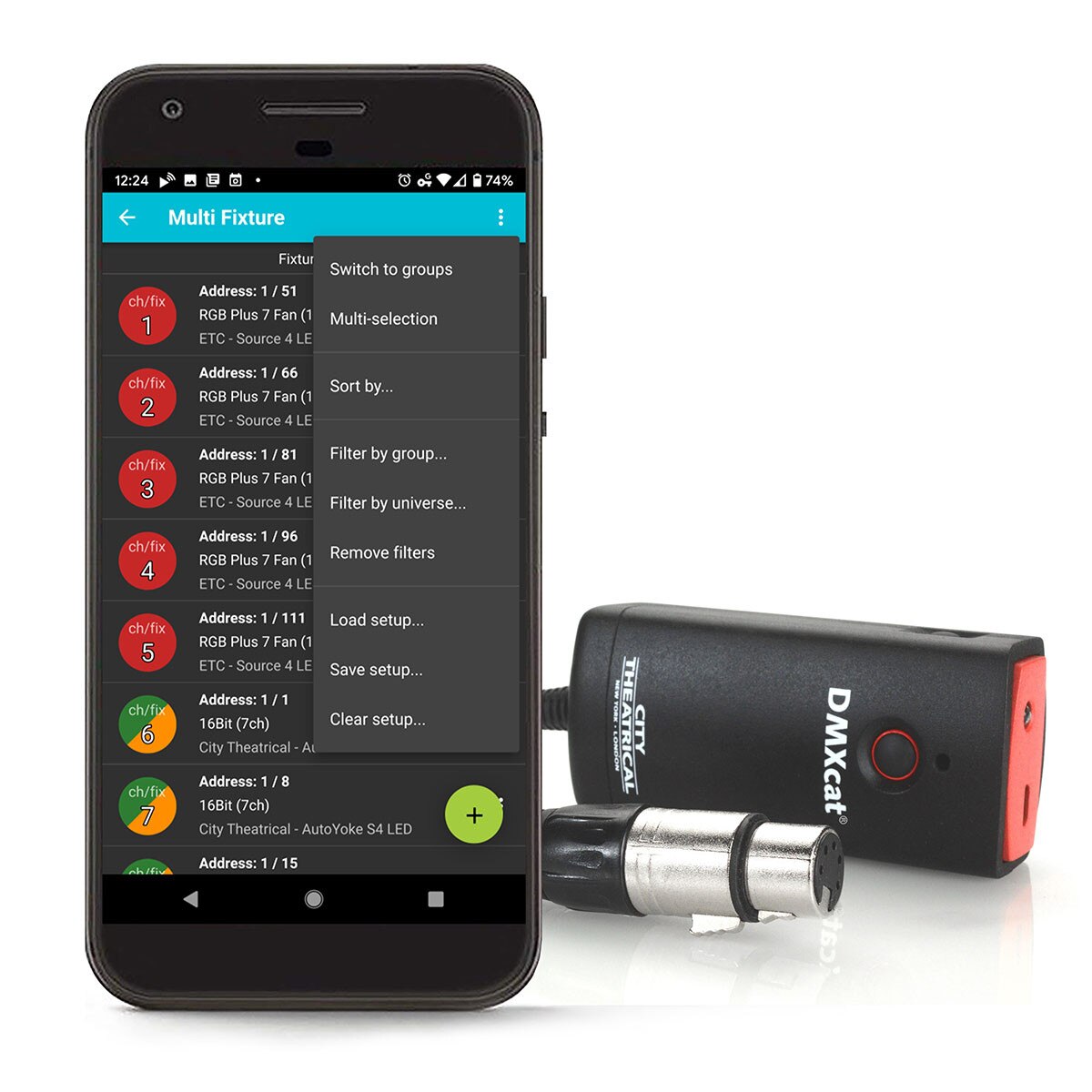

DMXcat’s Multi Fixture feature includes a patch that can be implemented to group and control lighting fixtures together to save time and improve workflows. This patch also allows users to assign numbers to channels or fixtures, which can be useful in creating a consistent and simplified numbering system between creative and technical teams of a given production or installation project. DMXcat users can use the patch to save, name, and re-load setups across various rigs, for use on future projects. To learn how to get started, read the Getting Started With DMXcat Multi Fixture pdf below.


DMXcat technology is covered by U.S. Patent # 10,129,964 B1 and other U.S and foreign patents pending.

Features:

• Interface device is a compact battery powered device unit
• Bluetooth LE technology for communication with smartphone/ applications
• 5 pin XLRF connector/ cable assembly allows it to be connected to a point in a DMX data chain
• USB to Micro-USB cable and charger

Included:

• DMX Controller
• Fixture Controller
• RF Spectrum Analyzer
• DIP Switch Calculator
• Light Meter (Android only)
• RDM Controller
• DMX Tester

Software Applications:

• DMX Controller - a single universe (512) DMX channel controller with two user interfaces.

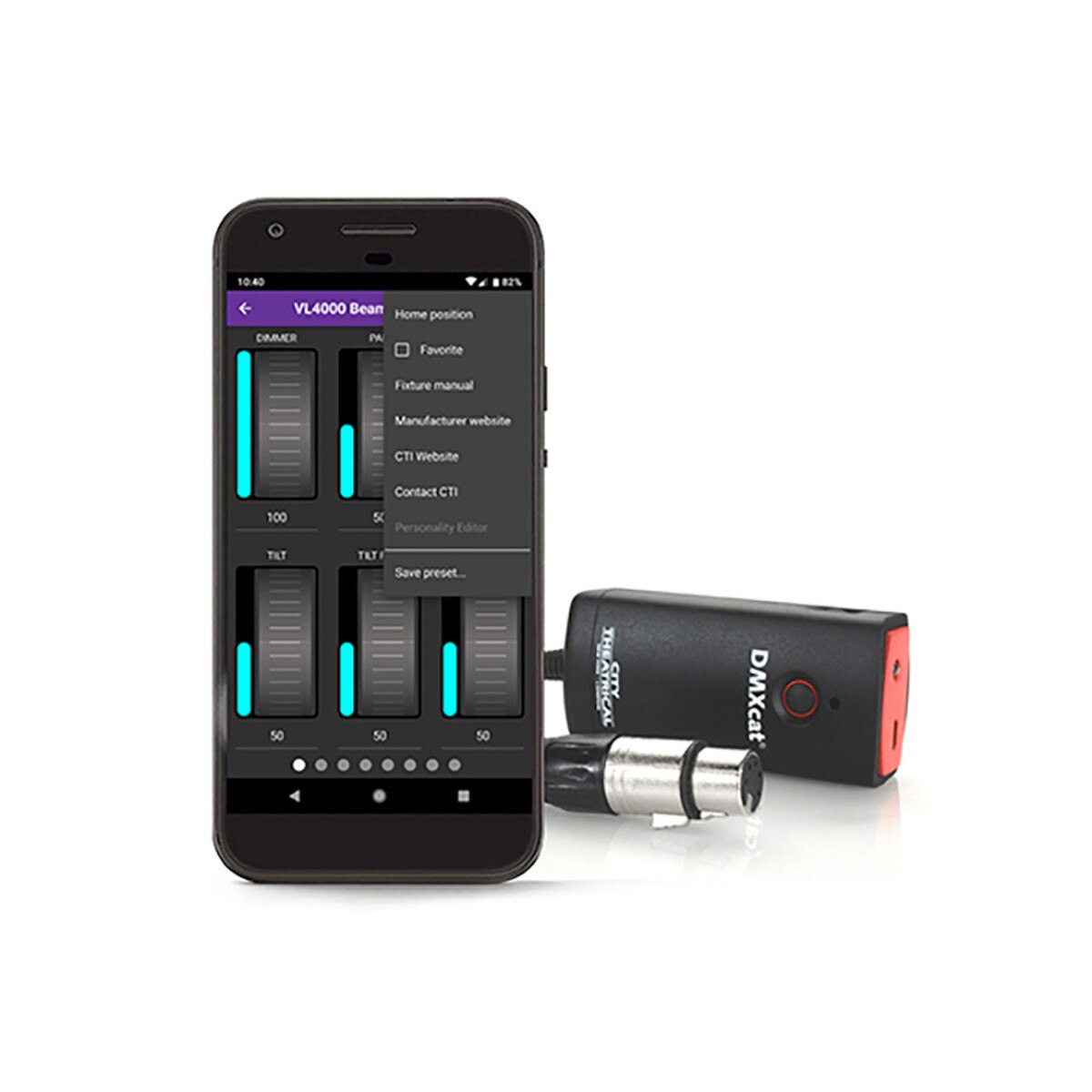

• Fixture ControllerDMX - test app for multi-attribute fixtures with built in database of lighting fixtures.
• RDM Controller - App for bi-directional communication/control of RDM enabled devices.
• DMX Tester - Permits users to analyze and or adjust settings for transmitting or receiving DMX.
• RF Spectrum Analyzer (Android only) - For surveying and visualizing Wi-Fi networks.
• DIP switch calculator - This app simplifies the configuring of DIP switches used for setting DMX addresses.
• Light Meter (Android only) - Useful for setting light levels for on-camera use.

Specifications:

• CTI Part No. 6000
• Wireless communication: Bluetooth LE
• Range: 50’ (15m)
• Status LED indicator: Multicolor
• Flashlight: White LED
• Charging port: Micro USB
• DMX connection: 5PXLRF
• Apps: 7- Android and 6- iOS
• Construction: NEMA 1 ABS enclosure
• Compliance: CE, RoHS, FCC
• Weight: 0.3 lbs (0.14kg)
• Dimensions (W x L x H): 1.63 x 3.75 x 0.94” (41.4 x 95.3 x 23.9mm)

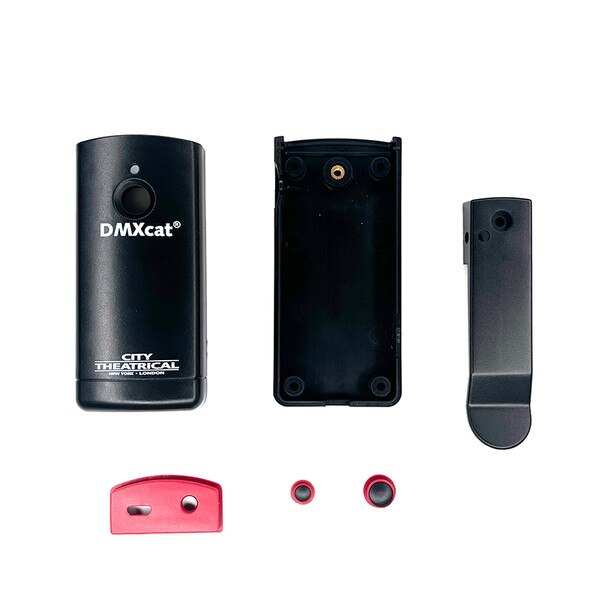

Hardware

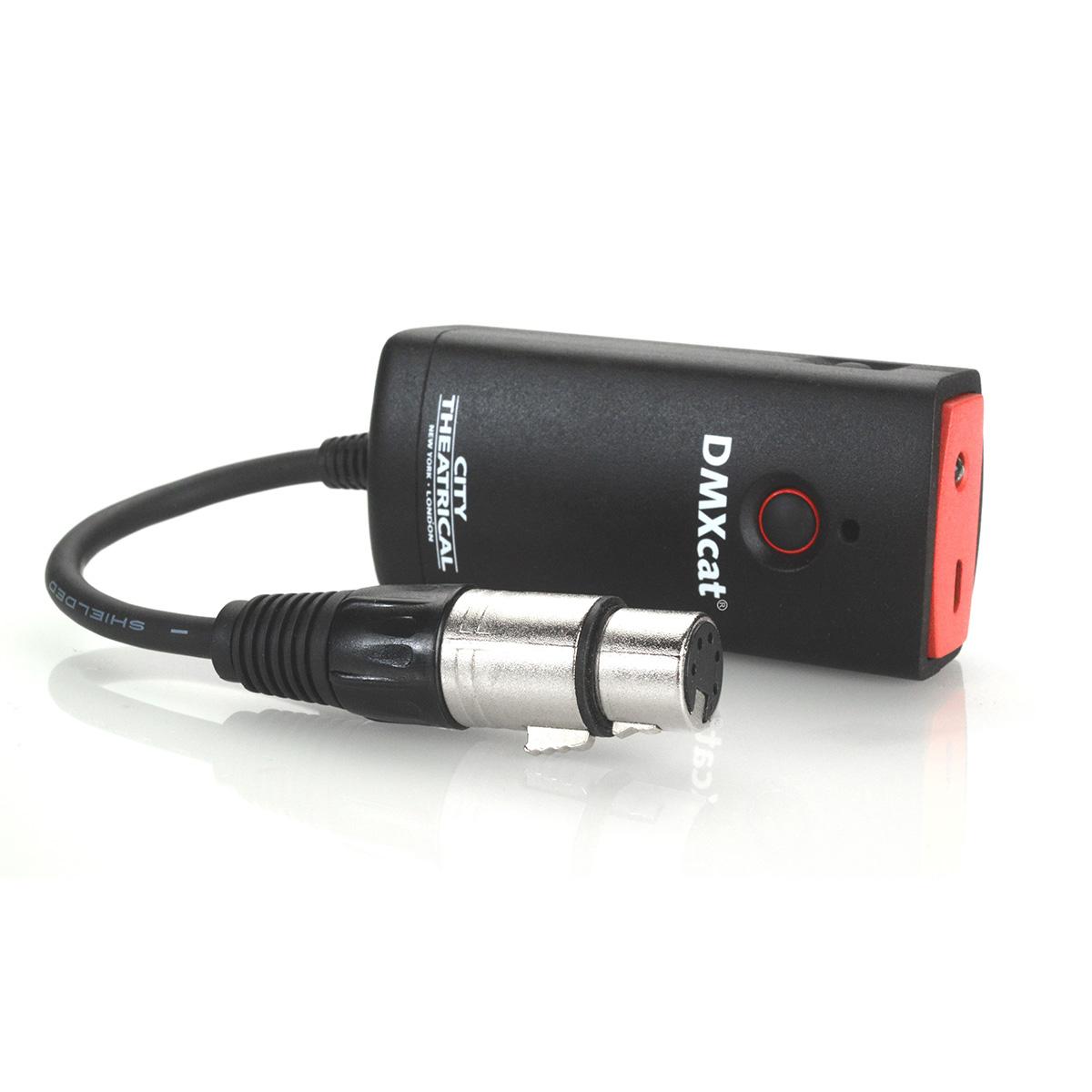

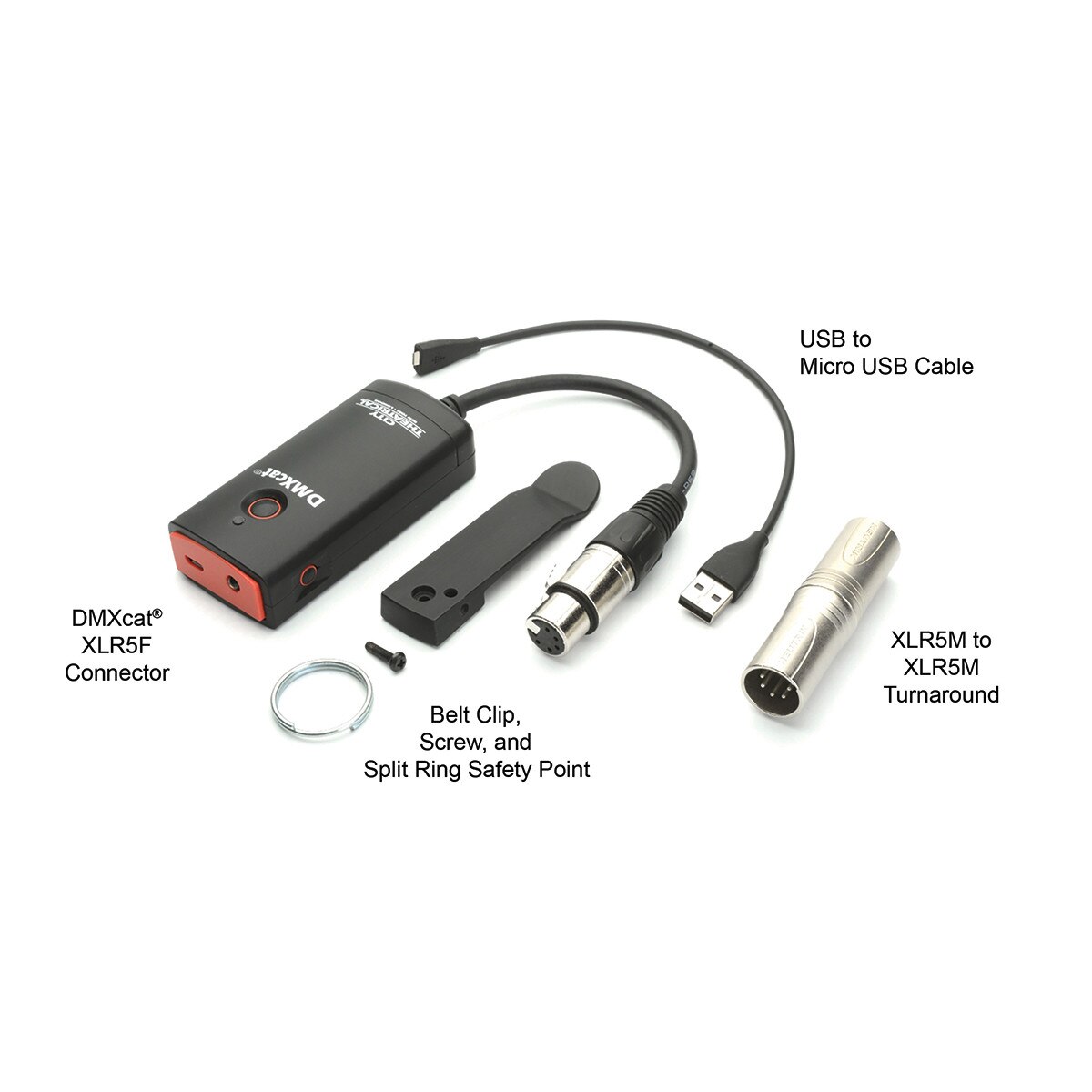

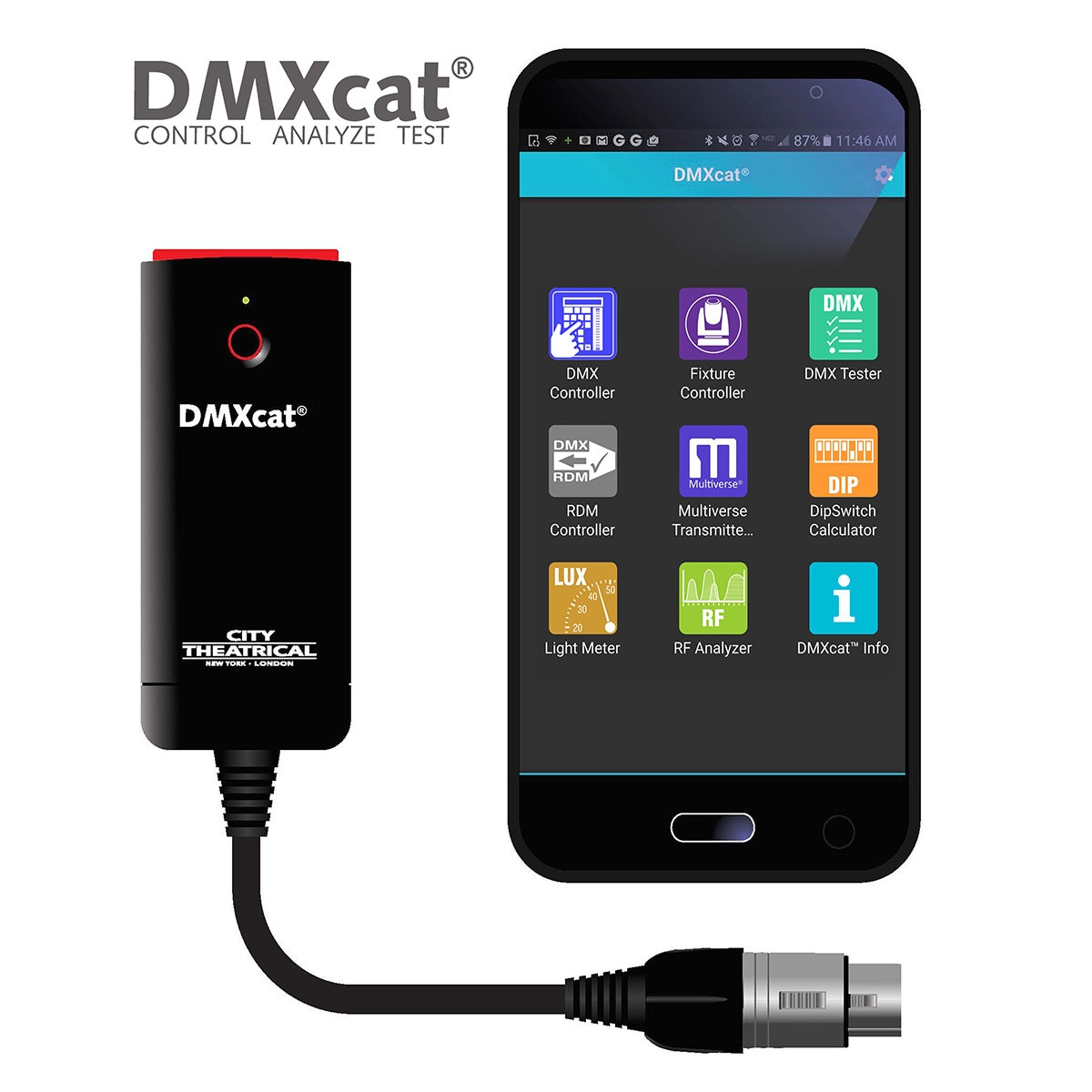

The DMXcat’s interface device is a compact battery powered unit which fits easily in a pocket or tool pouch or may be worn on a belt. It uses Bluetooth LE technology for communication with the smartphone/applications (up to 50’ range). Without the limitations of being physically connected, the user can move about the workspace as needed with his/her smartphone and run the various apps while still using the phone for on-the-job communication. The device’s 5 pin XLRF connector/cable asembly allows it to be connected to a point in a DMX data chain to allow testing and or control of the various DMX/RDM channel functions. It is charged using a standard USB to Micro-USB cable and charger.

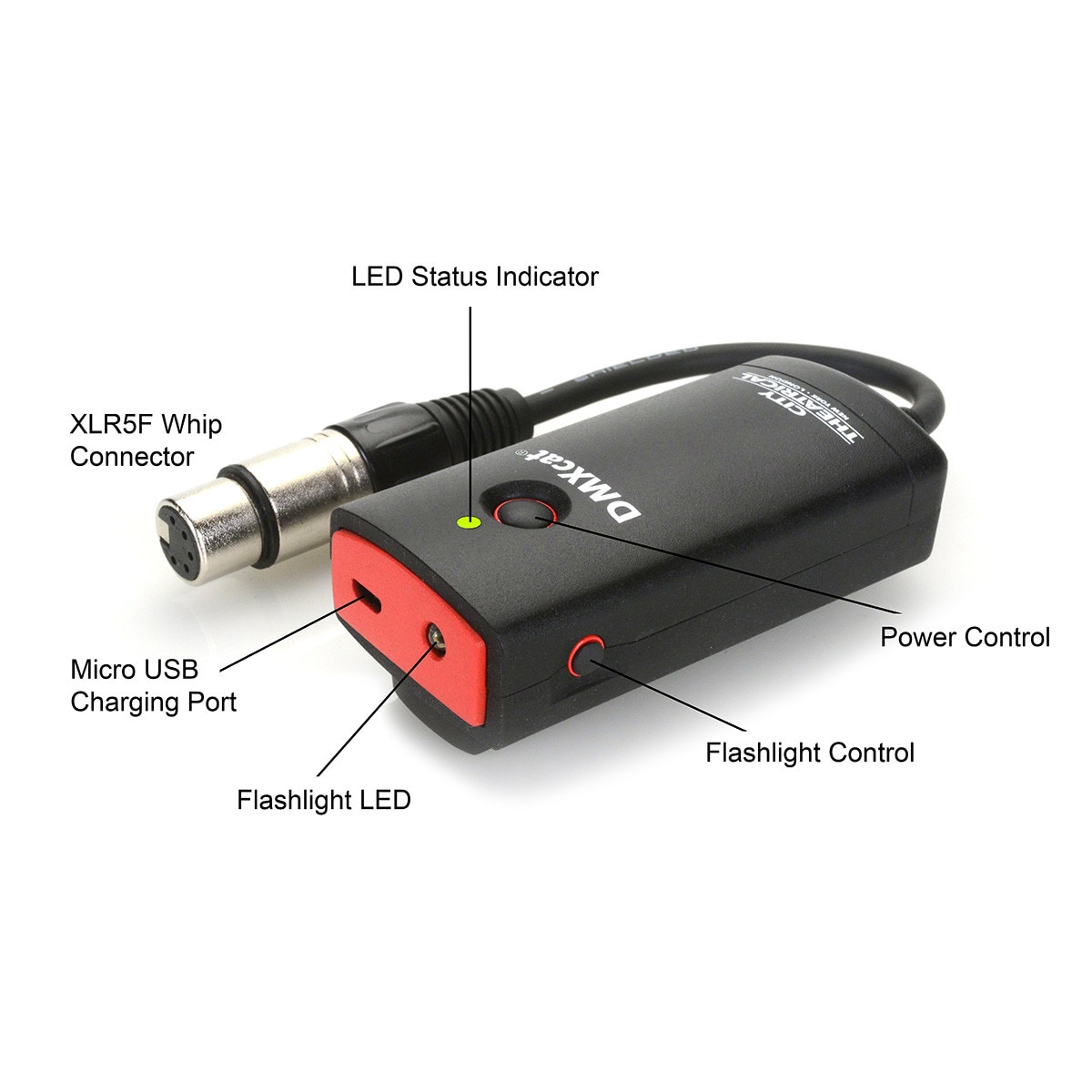

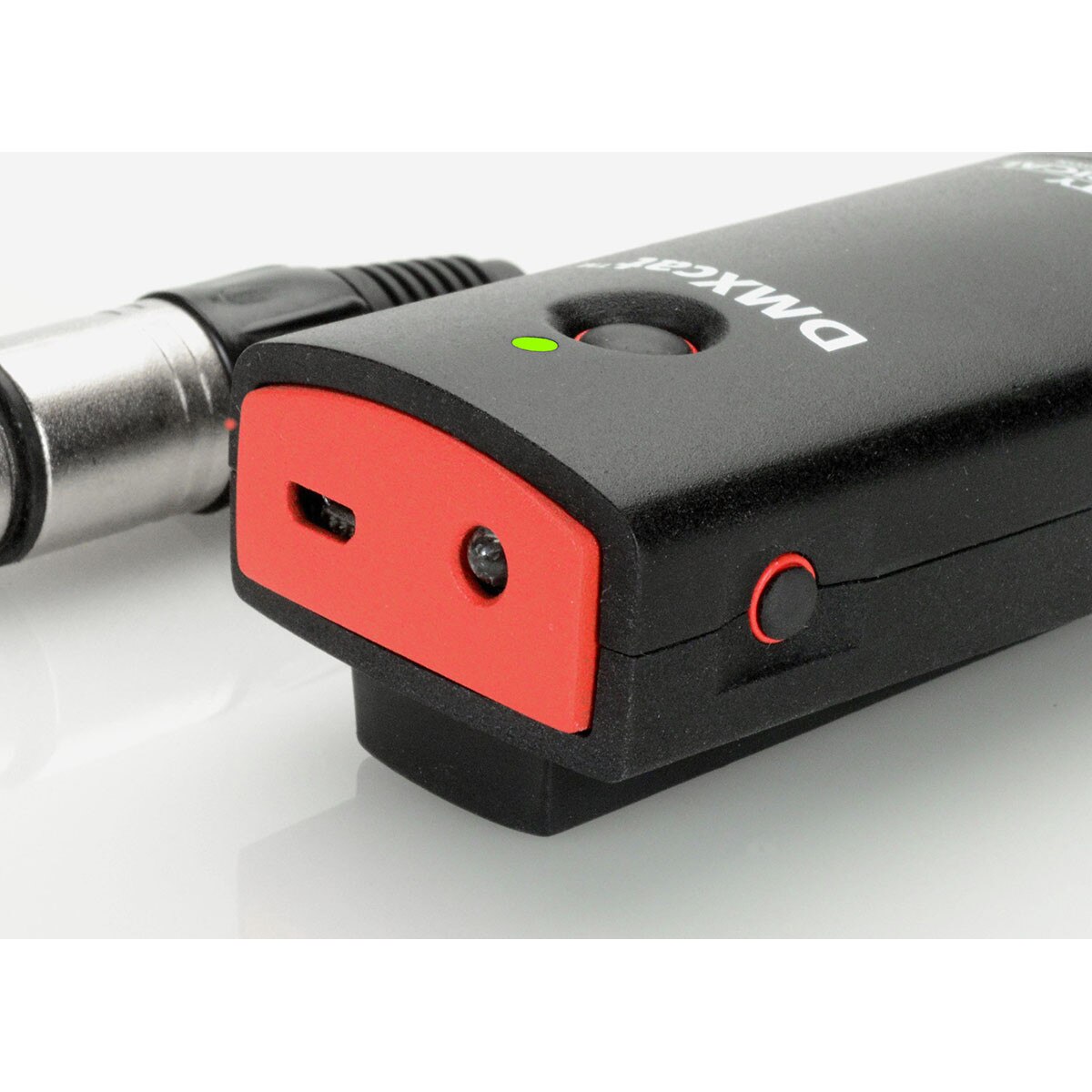

Other features include a built-in LED flashlight, an audible alarm (for locating a misplaced unit), an LED Status indicator, and a removable belt clip.

Optional accessories include:

• XLR5M to RJ45 Adapter

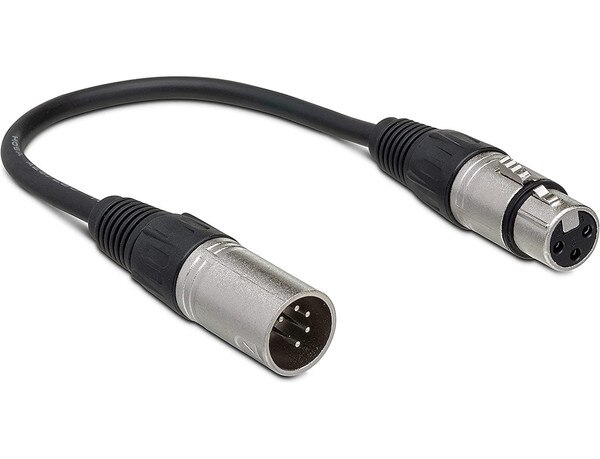

• XLR5M to XLR3F Adapter
• XLR5M to XLR5M Turnaround

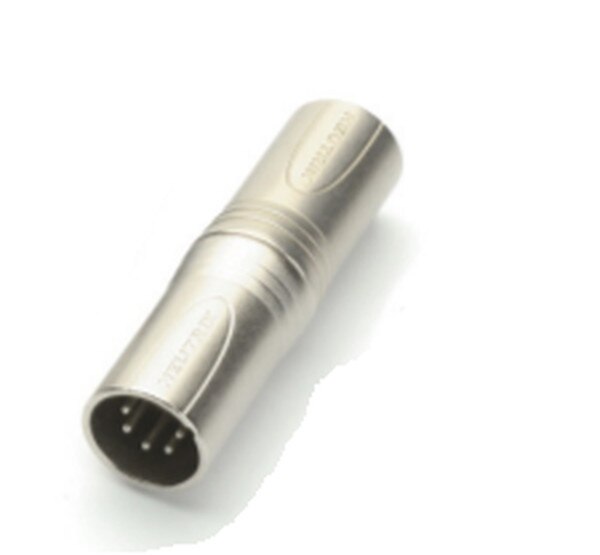

• XLR5M to XLR3M Turnaround

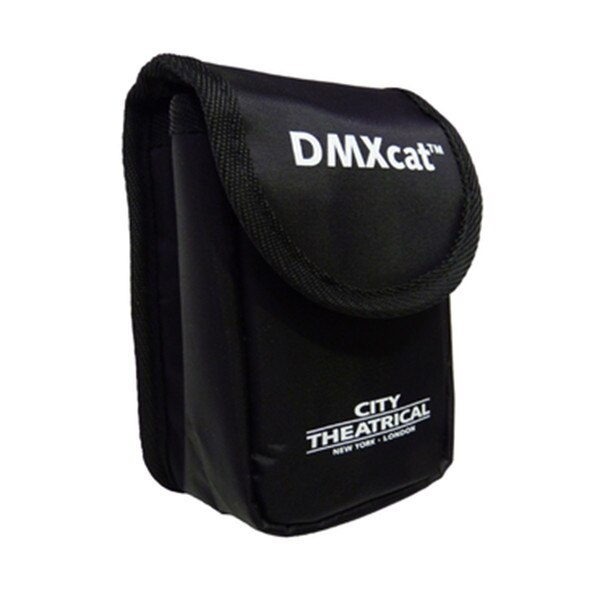

• Belt Pouch.

Software Applications

There are currently seven apps available or in development for use with the DMXcat system. Apps are available through Google Play (Android) or the Appstore (iPhone).

Apps Included with the Basic configuration include:

• DMX Controller - a single universe (512) DMX channel controller with two user interfaces.
• Fixture ControllerDMX - test app for multi-attribute fixtures with built in database of lighting fixtures.
• RDM Controller - App for bi-directional communication/control of RDM enabled devices.
• DMX Tester - Permits users to analyze and or adjust  settings for transmitting or receiving DMX.
• RF Spectrum Analyzer (Android only) - For surveying and visualizing Wi-Fi networks.
• DIP switch calculator - This app simplifies the configuring of DIP switches used for setting DMX addresses.
• Light Meter (Android only) - Useful for setting light levels for on-camera use.
