Clear-Com IFB Expansion Control Panel
Details

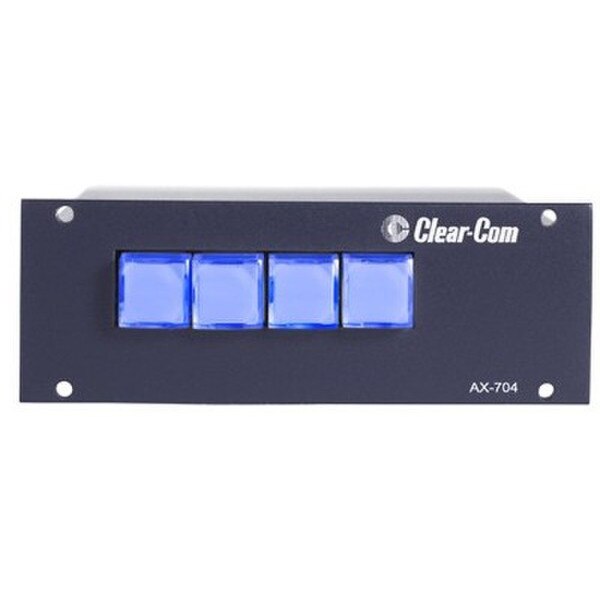

IFB Expansion Control Panel with four individual talent buttons. The expansion station connects to either a MA-4 or MA-4N station, expanding the IFB channel selection capabilities by four additional channels per AX-704. Multiple AX-704's may be linked together to control a maximum of 96 talent channels. Requires MA-704, for console or optional rack mount (CEP-RK).
Specifications:
Program Line Input:
- Maximum Level before Clipping: >= 20dBu
- Input Impedance: >= 5KΩ
Frequency Response:
- Program Input - Talent: 200 - 18KHz ± 3dB
- Extension Line - Talent: 200 - 18KHz ± 3dB
Max Distortion:
- Program Input - Talent: <= 0.1%
- Extension Line - Talent: <= 0.1%
Noise:
- Program Input - Talent: < -85dBu
- Extension Line - Talent: < -85dBu
Max Gain:
- Program Input - Talent : >= -14dB
- Extension Line - Talent: -14dB ± 3dB
- Min Gain: Program Input - Talent: <= -45dB
Power:
- Input Voltage Range: 20-30 VDC
- Input Current (Idle) : <= 120mA
- Input Current (Max): <= 150mA
Rear Panel Connectors and Controls:
- IFB Input: (1) XLR6F
- IFB Extension: (1) XLR6M
- Extension Bus Out: (1) 1/4 jack socket
- External Line In: (1) 1/4 jack socket
- Front Panel Controls & Indicators: (4) Talk buttons
- Environmental: 32 - 122°F (0 - 50°C)
Dimensions:
- 1.75" H x 4.9" W x 5.5" D (44.5mm x 124.5mm x 139.7mm)
Weight:
- 1.35 lbs. (0.61 kg)
