Clear Com Talent Receiver

(0)No Reviews yet
$365.00
SKU: Clear-Com TR-50

Details

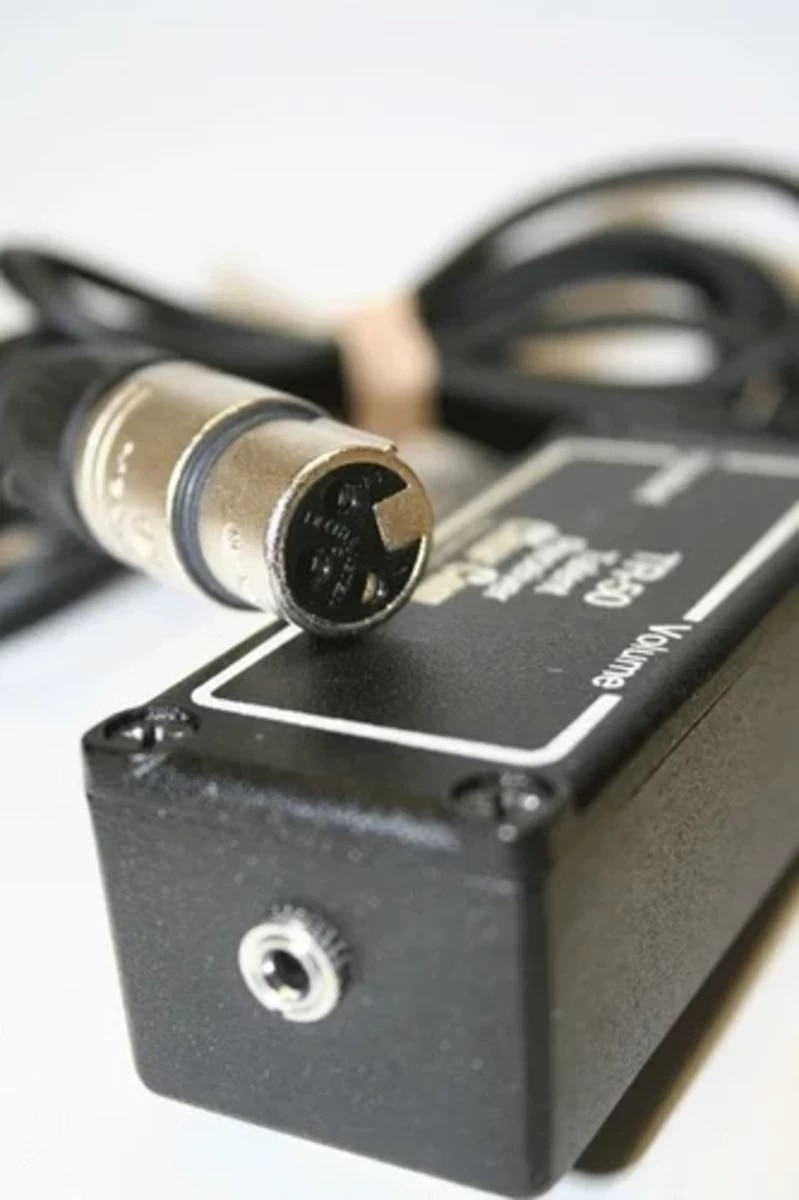

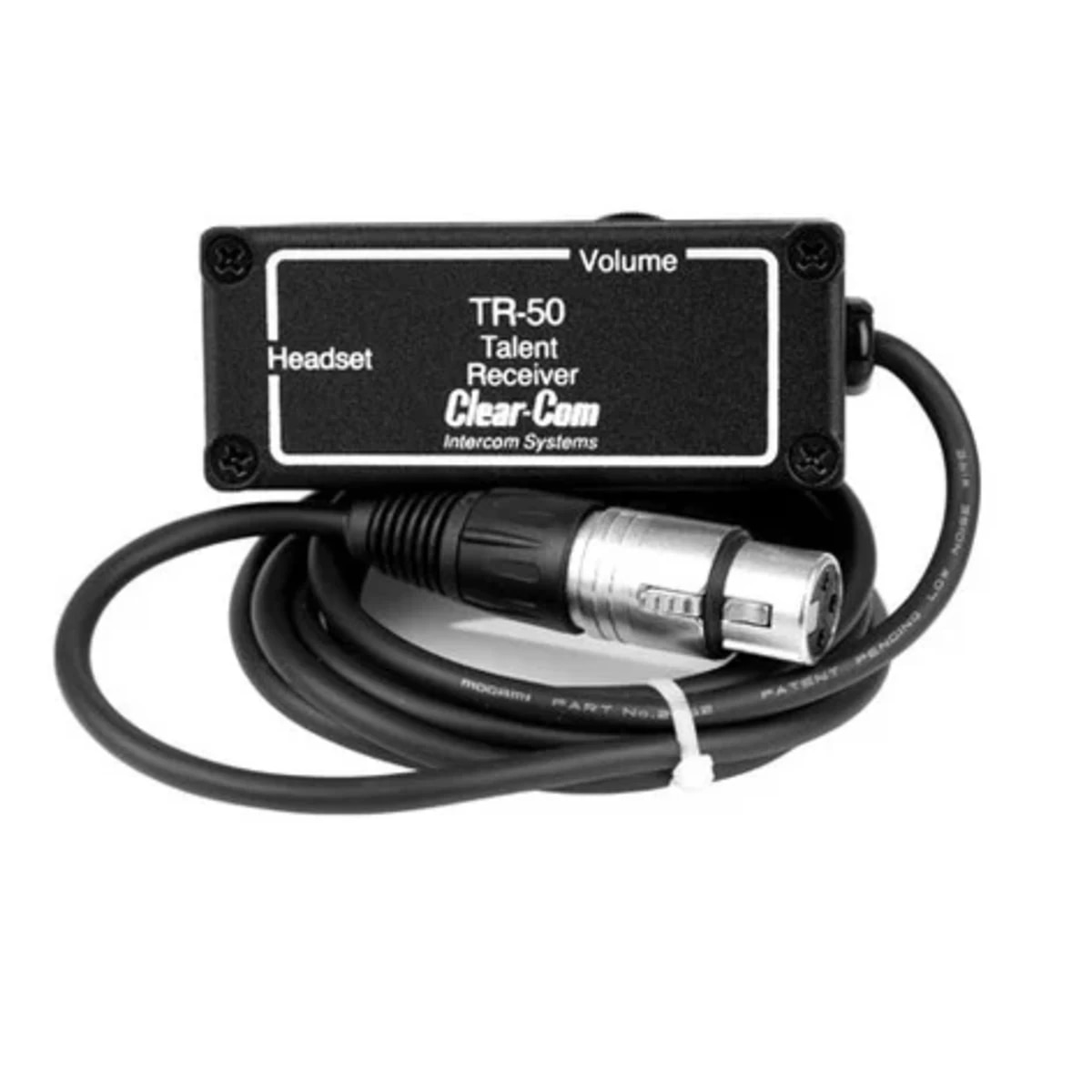

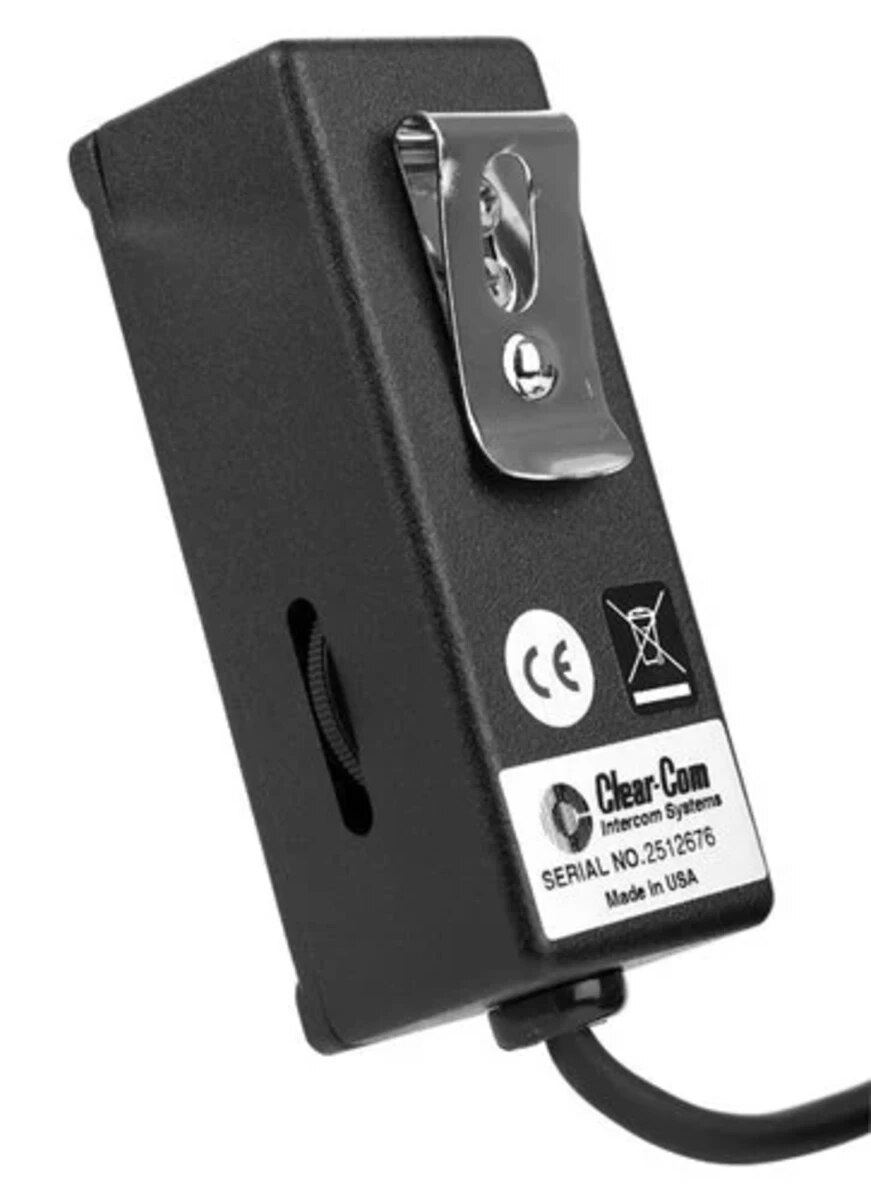

Clear-Com's TR-50 is a single-channel portable mini belt pack unit that contains an amplifier with volume control to power the talent’s earphone. This device can be attached to your talent's belt, or under a desk. The TR-50 connects to the program interrupt controller with a standard microphone cable. Includes a mini earphone jack output and a talent earset, paired with the CC-010A IFB ear set.

IFB systems allow talent coordinators to speak directly to on-air talents and crew members. IFB system transmits one or two program audio signals to individual Talent Receivers via standard, two conductor shielded mic cables. Communication is one-directional.

Features

  • Earphone Type: Dynamic, Impedance >30 Ohms
  • Max. Output Level: +20 dBm
  • Power Required: 10 mA quiescent at 28 VDC supplied by IFB line
  • Headset Connector: 3-pin female XLR (at end of 6' cord)
  • Weight: 4.5 oz. (0.1 kg)

Specifications

  • Earphone Type: Dynamic
  • Earphone Impedance: >30 ohms
  • Max. Output Level: +20 dBm
  • Power Required: 10 mA quiescent at 28 VDC supplied by IFB line
  • Headset Connector: 3-pin female XLR (at end of 6' cord)
  • Dimensions (W x H x D): 3.6" x 1.5" x 1.5" (91 x 38 x38 mm)
  • Weight: 4.5 oz (0.1 kg)
