Light Source Mega-Claw - Black Anodized - Light Source MWB

2Reviews
$60.53
QuantityPrice
1 – 11$60.53
12 – 23$57.50
24 – 35$55.99
36 – 47$54.48
48 +$52.96
SKU: Light Source MWB

Details

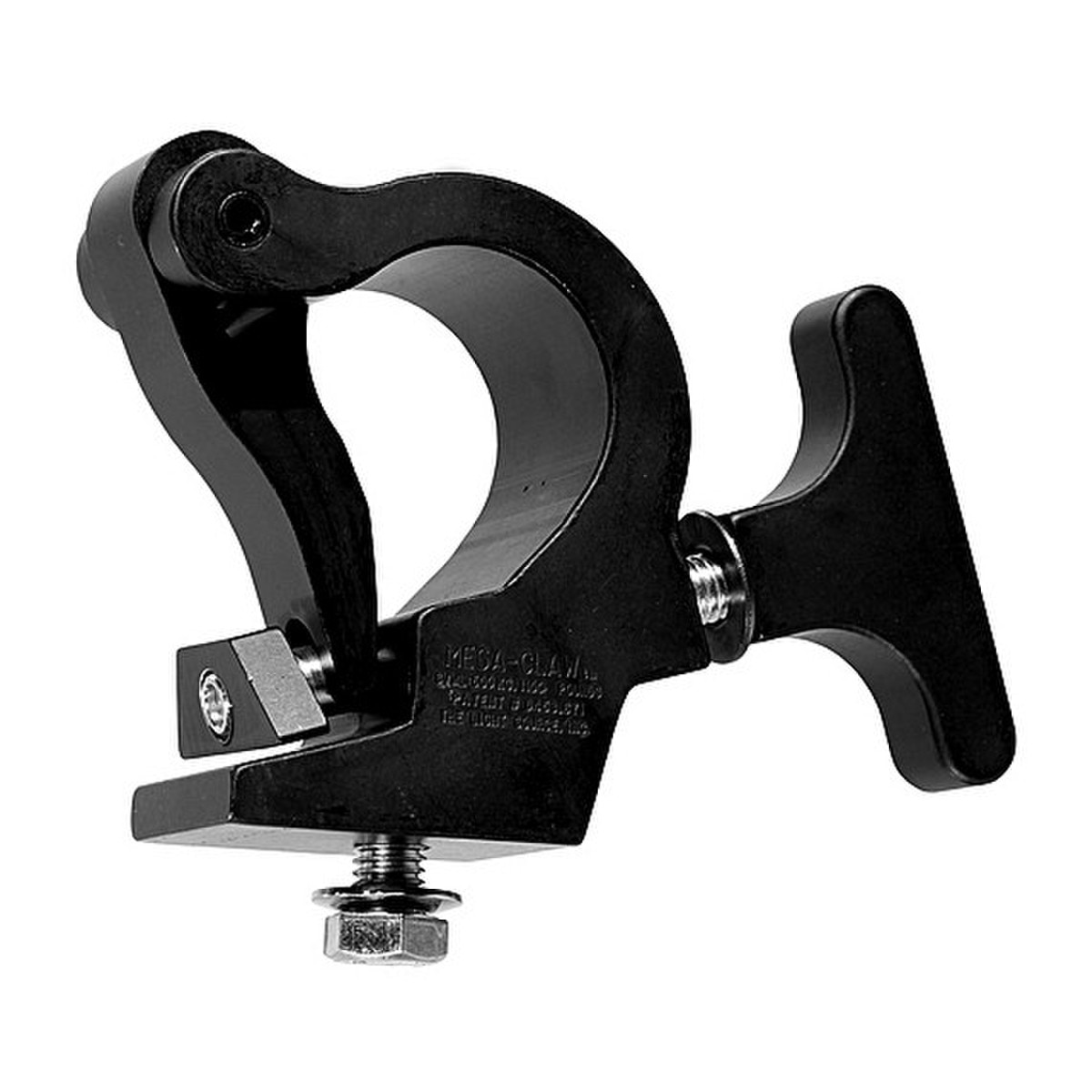

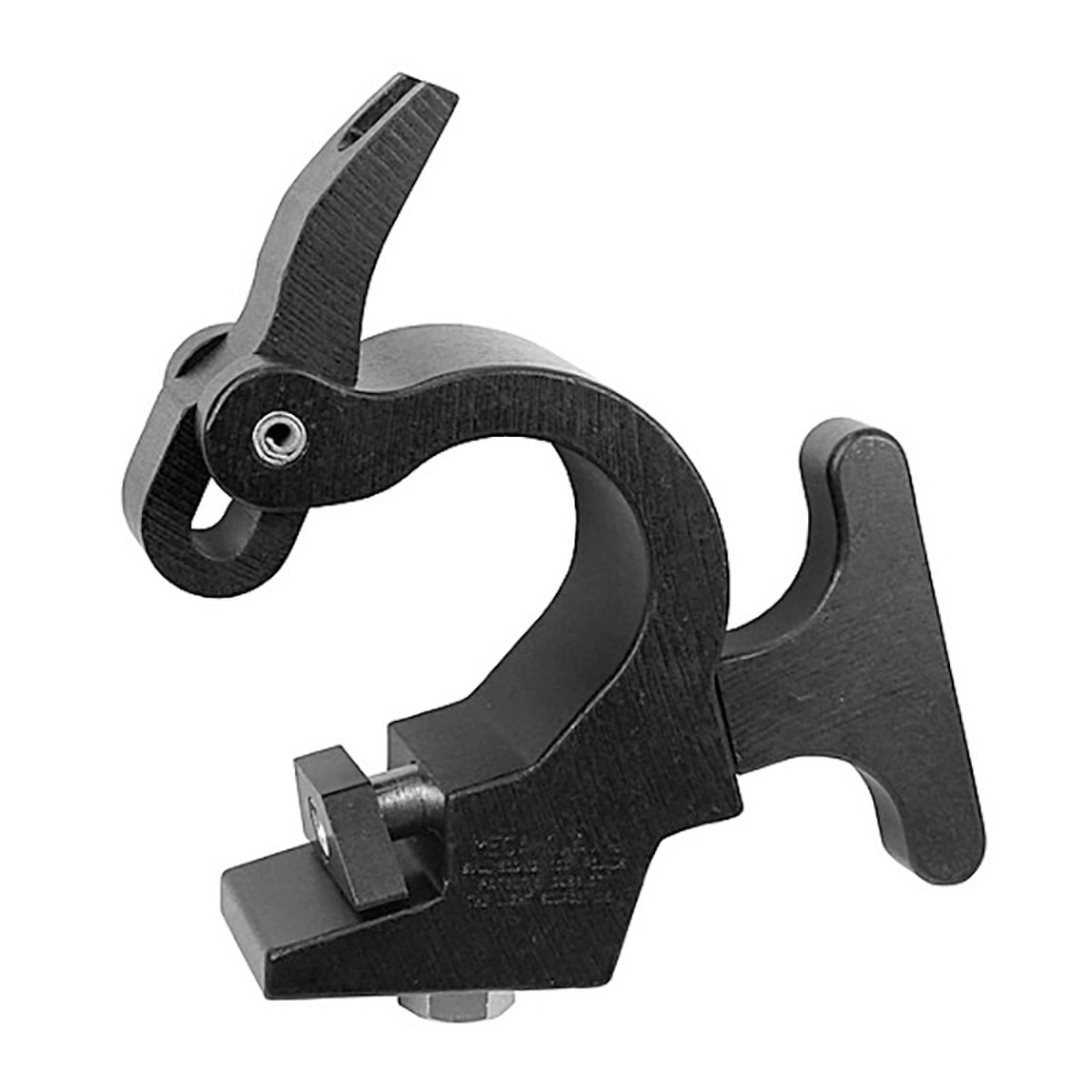

The new standard truss clamp for hanging intelligent lighting fixtures. Allows one man to hang intelligent fixtures. Simply flip the link up, place the clamp over the pipe and the Mega-Claw holds the weight of the fixture while you secure it with the solid 3/4" thick handle. The Mega-Claw will fit onto (1-1/2" Pipe) 1.9" OD to 2" OD.

Specifications:


  • Minimum Size: 1.5" pipe, 1.90" OD pipe
  • Maximum Size: 2" OD truss tube
  • Safe Vertical Working Load: 1,100 lbs (500kg)

Hardware:


  • 1/2"-13 x 1" grade 5 hex head fixture mounting bolt with 1" diameter 600 pound belleville spring washer for tensioning
  • 1/2"-13 x 4" trapezoidal head bolt for securing link to pipe
  • Dimensions: 4.375" Tall x 6" Wide x 2" Thick
  • Weight: 2 lb (0.9kg)

Quick_Reference_Guide_4394_File_1.pdf
mega-claw-7.pdf
