Light Source Uni-Bolt for Strut Channels
Details

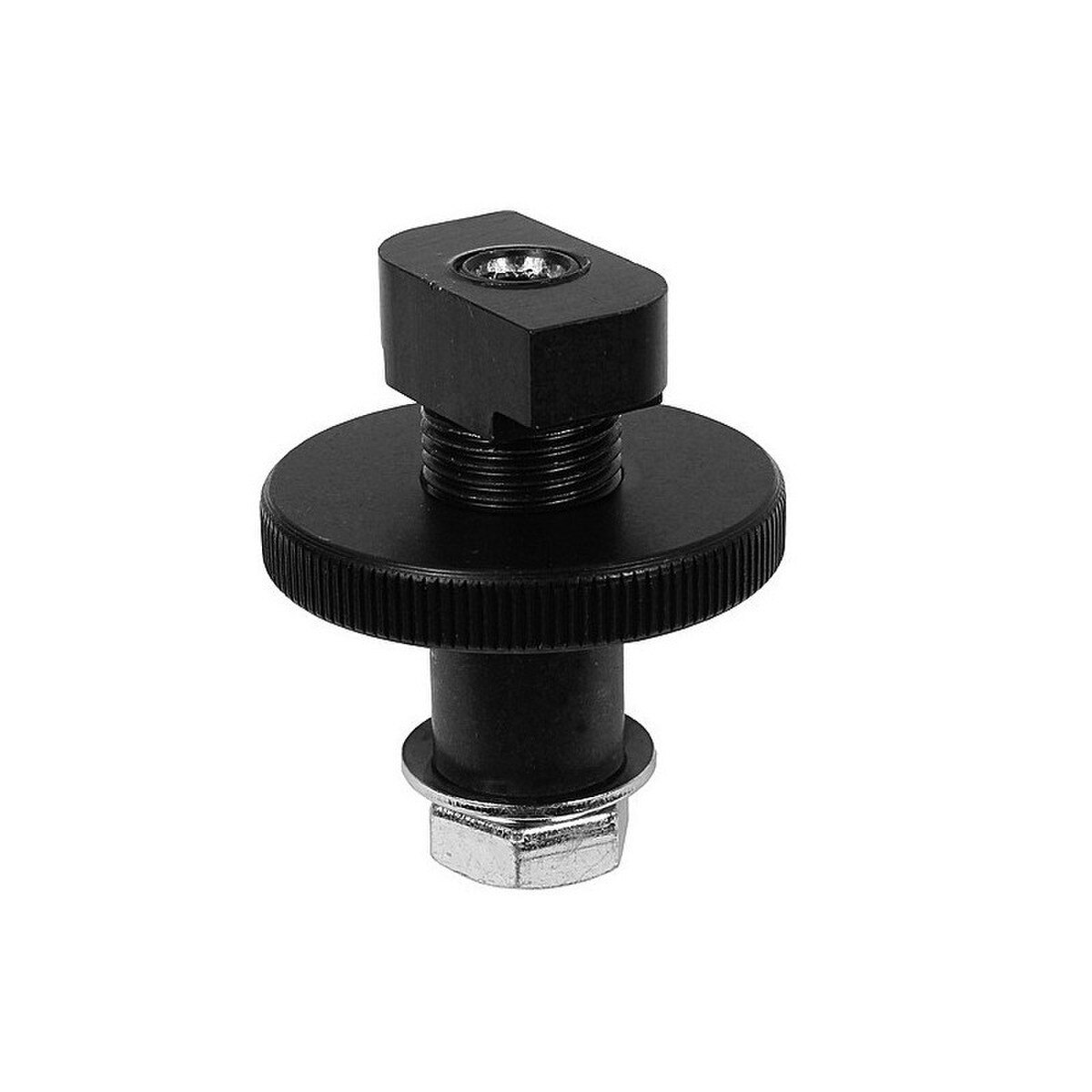

Uni-Bolt for fastening fixtures or pipes to Strut Channel. Insert the Uni-Bolt into standard 1-5/8" by 1-5/8" strut channel, rotate 90 degrees and spin the 2" diameter knurled disk to lock into the channel.
Quick_Reference_Guide_4394_File_1.pdf
Specifications:
- Minimum Size: 1 5/8" x 1 5/8" Strut Channel
- Safe Vertical Working Load: 250 lbs
- Hardware: 1/2-13 TPI x 1" Hex Head Cap Screw Grade 5 Zinc Plated
- Weight: 0.35 lbs
