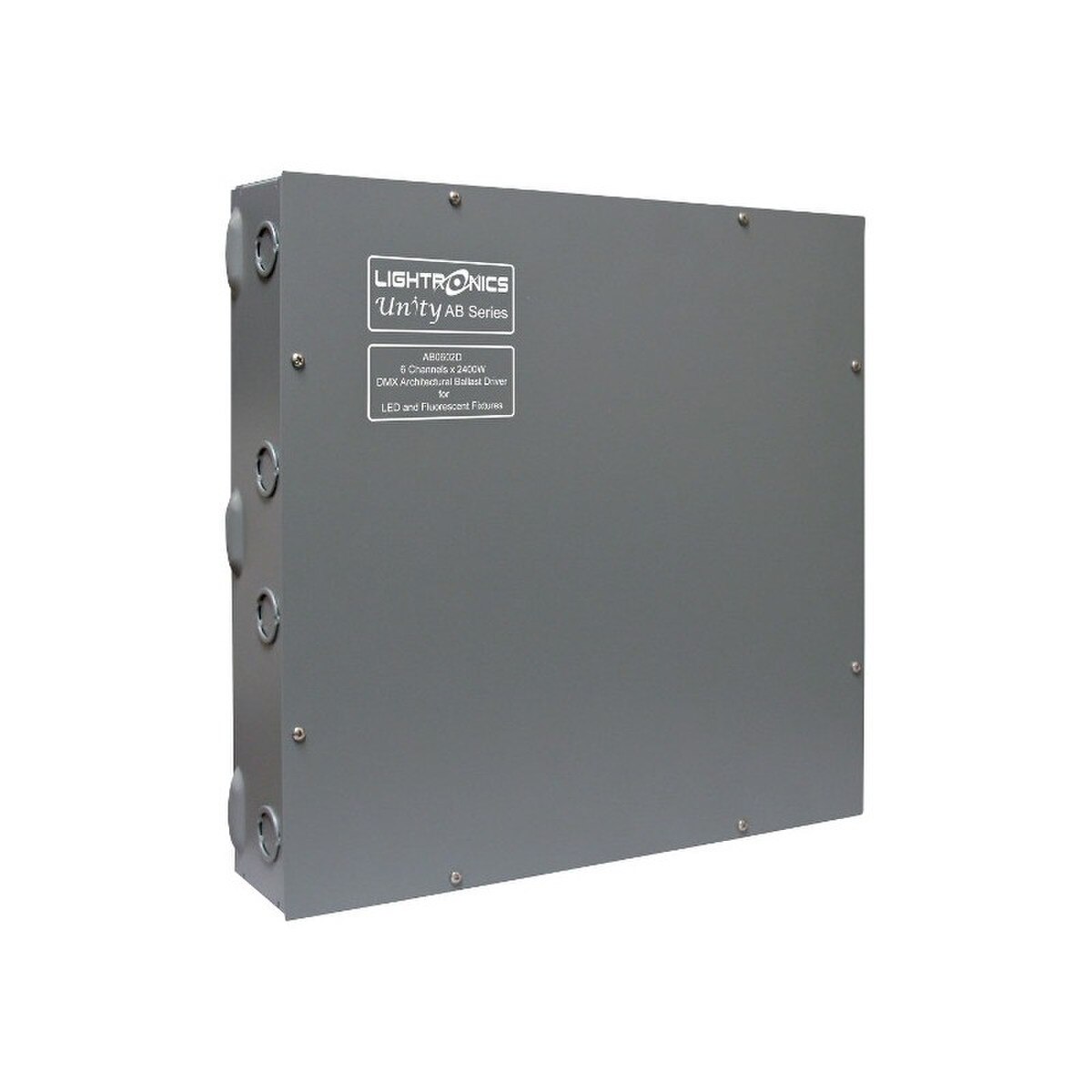

Lightronics Wall Mount Ballast Driver, 6 Channel, 2400W, Switched Hot / 0 - 10 VDC Ballast Driver
Details
The AB0602D is a 6 circuit, 2400W per circuit ballast driver intended for dimmable fluorescent and LED fixtures which use a switched 120VAC hot feed and a 0 - 10 VDC analog control signal to operate them. The AB0602D can also be used as a conventional relay pack by using only the switched hot feed controls without the 0 - 10VDC analog signal.
Specifications:
- 6 channels
- 2400W each
- Total Wattage: 14400W
- DMX input
- Softpatching per channel
- Contact closure controls
- Unity architectural remote station port
- Stores 64 programmable scenes
- "Snapshot" recording of scenes
- "ON" and "OFF" threshold adjustment for each channel
- UL-508 compliant
- DC dimmed - switched HOT / 0-10VDC
- Dimmed class II output
