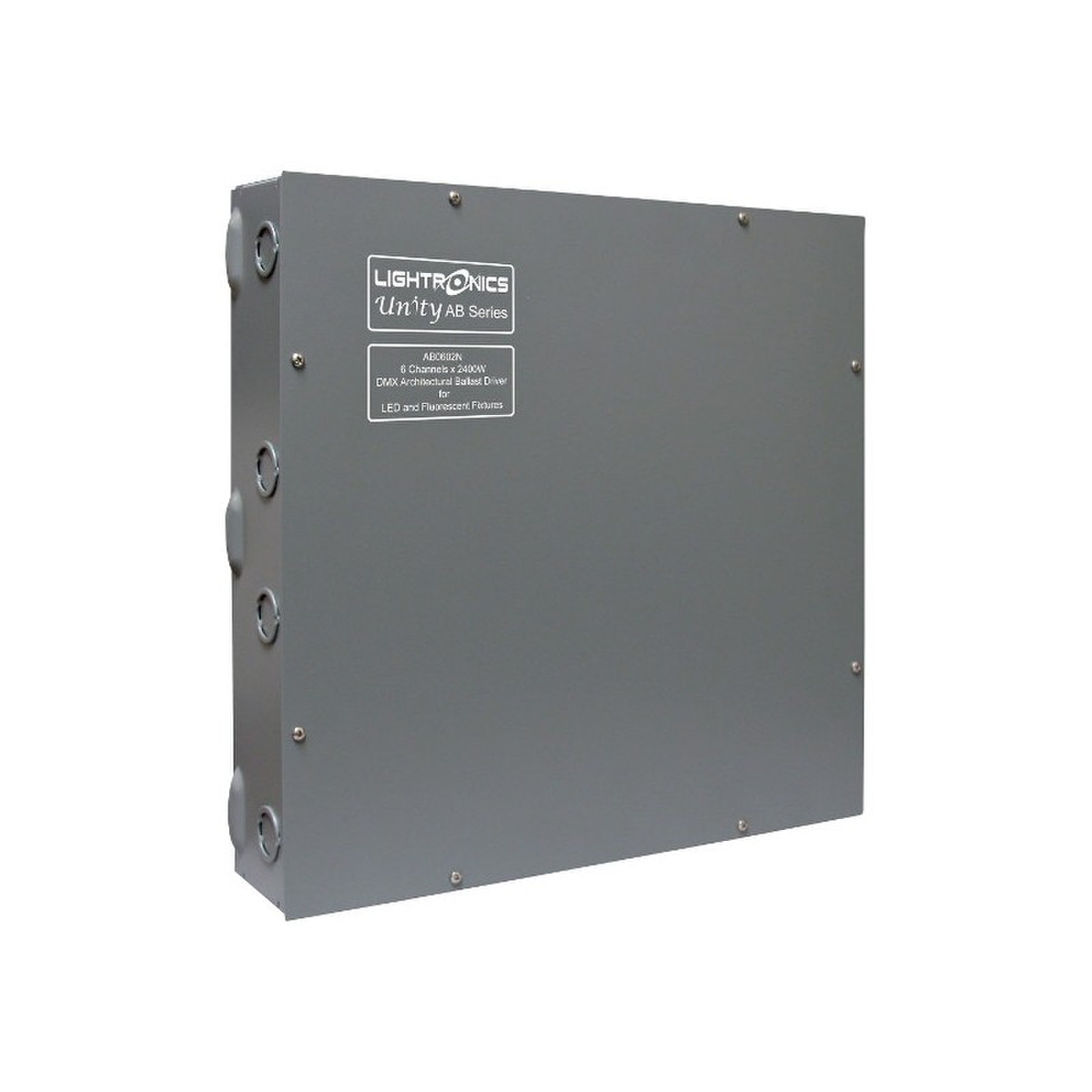

Lightronics Wall Mount Ballast Driver, 6 Channel, 2400W, Switched Hot / Non-Dim Load Relay
Details
The AB0602N is a 6 circuit, 2400W per circuit ballast driver intended for non-dimmable fluorescent and LED fixtures which can use a switched, remotely controlled 120VAC hot to operate them.
Specifications:
- 6 channels
- 2400W each
- Total Wattage: 14400W
- DMX input
- Softpatching per channel
- Contact closure controls
- Unity architectural remote station port
- Stores 64 programmable scenes
- "Snapshot" recording of scenes
- "ON" and "OFF" threshold adjustment for each channel
- UL-508 compliant
- Non-Dim - switched HOT only
