MDG Digital fan with DMX and RDM Control
Details

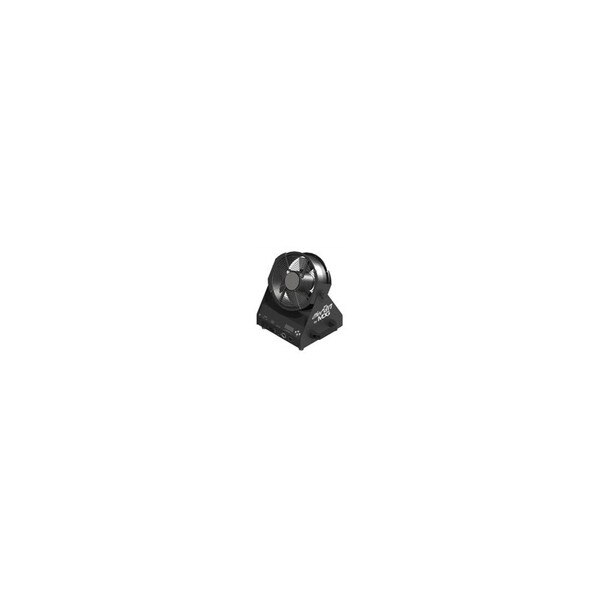

Designed to work in tandem with our professional generators or as a stand alone unit, theFAN is a versatile, 100W, ultra-compact, variable speed, digital fan.
Features:
Mechanical
SPecifications_Sheet_93401_File_1.pdf
Quick_Start_Manual_93401_File_2.pdf
Features:
- Variable Speed and Air Flow up to 850 CFM
- Free Standing or Variable Mounting options
- 4-Button LCD user Interface, USITT DMX512, XLR-5 Connectors, RDM Compliant
Mechanical
- 3-bladed fan
- 0.5” imperial bolt hole
- 270º tilt
- 2 handles
- Variable speed
- 4-button controller with LCD panel
- Airflow: 850 CFM
- Total net weight: 6.8kg (15 lb)
- Noise Level: 64db at full speed
- Total net size: 38 cm (15”) H x 34.5 cm (13.95”) W x 25.4 cm (10”) D
- Omega clamp socket
- M12 metric bolt hole
- Fan diameter: 26.4 cm (10.4”)
- 100 - 250 VAC, 50/60 Hz, single phase
- 100 Watts
- 1 standard USITT DMX512 channel
- 2 XLR-5 connectors: 1 input, 1 output
- Controllable through DMX + RDM
- Stand alone set speed
- DMX Value
- Flight Case
