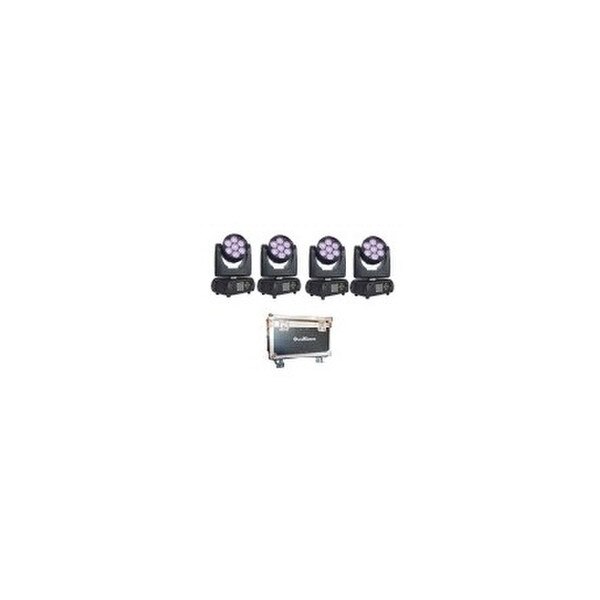

OmniSistem Spark 7 Zoom
Details
Features:
Light
Product_Manual_95600_File_1.pdf
- DMX channels: 15/24/14/16
- Fast, smooth, and silent movement
- RGBW Color Mixing
- Zoom 10° to 60°
- Full range 0-100% dimmer
- Various strobe
- RDM function to change DMX address, display flip, X/Y Reverse and more
- Software upgrade via DMX
- Hibernation when lost DMX for preset time
- Indicate temperature info of base, arm and lamp
- Fan speed auto change according to temperature
- Heat pipe for cooling
Light
- Light source: 7 x OSRAM 15W 4-in-1 RGBW LEDs
- Lamp life: 60,000 hours
- Luminous Flux: 3200 lumen, 6000 lux @ 2.5 m
- Control: Remote on/off via DMX
- Ballast: switching mode power supply
- Beam angle: 10° to 60°
- Pan: 630° (2.5 sec) or 540° (2 sec), Tilt: 265° (1.8 sec)
- 16-bit resolution
- Auto repositioning
- 3-phase motor for fast and quiet movement
- Display
- 2.4” LCD display with English/ Chinese/French/Spanish menu
- Auto lock
- Flip
- Back-up communicating IC
- Max power consumption: 115W
- Power supply: Electronic auto-ranging
- Input voltage range: 100–240V, 50-60Hz
- Fixture Dimensions: 244 x 179 x 322 mm (9.6” x 7” x 12.7”)
- Net Weight: 13.2 lbs. (6 kg)
