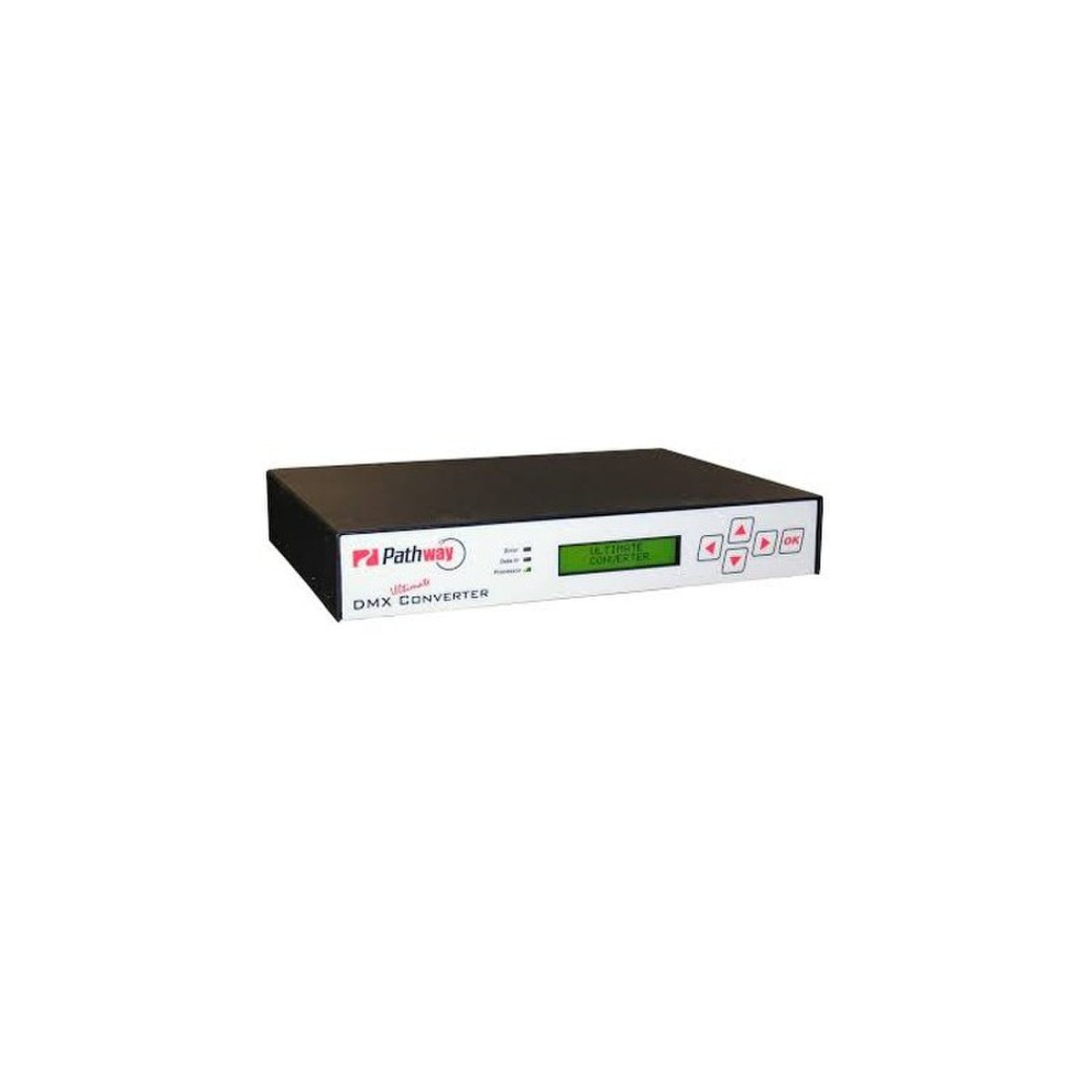

Pathway DMX Tabletop Ultimate Converter

(0)No Reviews yet
$2,664.00
SKU: Pathway 8680

Details

The DMX Ultimate Converter "translates" or converts between DMX and most older multiplex lighting protocols.
The Ultimate Converter is an inexpensive method to allow a modern DMX-only console to control legacy dimmer racks. The Ultimate Converter can also be used to adjust DMX timings to correct compatibility issues between consoles and the dimmers or other output equipment involved.

Features:

  • Multiple protocol support in a single unit
  • Intuitive configuration with backlit menu driven LCD display
  • Most multiplex protocols supported
  • Security lockout function
  • Input & output diagnostic functions
  • Output protocol customization capability
  • Users can select from the following protocols:
    • DMX512/1990 and DMX512-A
    • AMX192 - all versions
    • Kliegl( K96 & K100)
    • Colortran (CMX & D192)
    • Electro Controls (ECMux)
    • Micro-Plex 1 & 2 (NSI and Lightronics/Leprecon)
    • Strand D54
    • AVAB - 240 & 252 channels

Specifications:

  • Power Supply: Universal 100-240VAC, 50/60 Hz, 0.2A
  • Input & Output Configuration: Keypad and 16 character, two line backlit LCD
  • Size: 10.15 x 1.75 x 7.0" (258 x 44 x 178mm)
