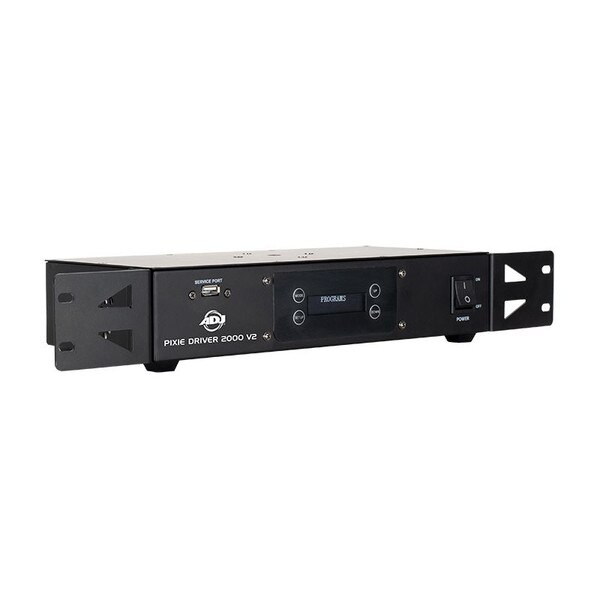

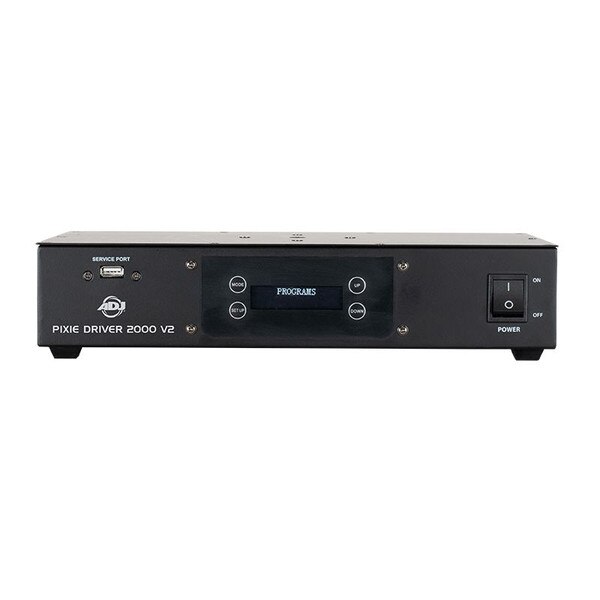

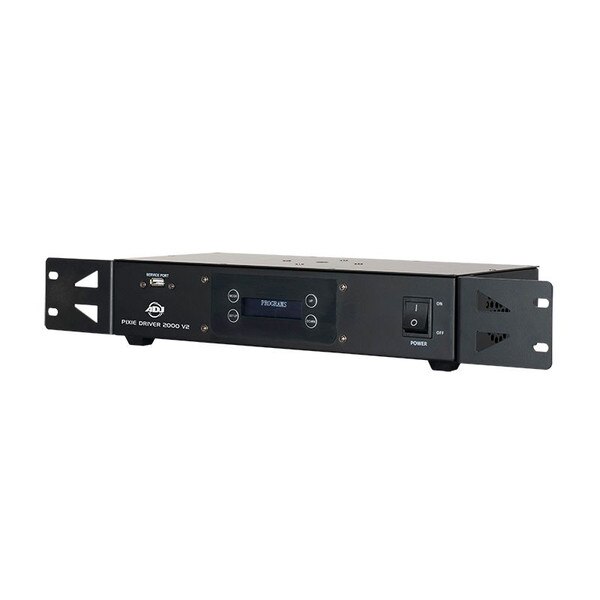

ADJ Pixie Driver 2000 V2

(0)No Reviews yet


Pixie Driver 2000 V2 is designed specifically for the ADJ Pixie Strip 30, Pixie Strip 60, and Pixie Strip 120. It provides easy and versatile control options including simple on-board manual dimming and strobe control, plus full pixel mapping control of 2,040 max pixels via Kling-Net, 340 max pixels via Art-Net or sACN (streaming ACN) protocols.

The Pixie Driver 2000 V2 features a universal auto switching power supply (100-240V), a 4-button LCD control menu display, RJ45 Ethernet in/out ports, and (2) outputs which use proprietary, 4-pin combo cables (sold separately) that supply power and data to each pixel strip (available in lengths from 1 to 50 feet). The Pixie Driver 2000 can be mounted in a standard 19-inch rack (rack ears included) or attached to truss with a clamp (not included). There is a USB port on the front panel to easily make updates to the firmware.

Control Features:

  • Power / data supply for ADJ Lighting Pixie Strip 30, Pixie Strip 60, and Pixie Strip 120
  • Manual RGB mode
  • Internal programs
  • Manual Dimming and Strobe Control
  • Full Pixel Mapping Control
  • 2,040 Pixels via Kling-Net
  • 340 Pixels via Art-Net and sACN (streaming ACN)
  • OLED screen with 4-button menu
  • RDM compatible
  • USB port for Firmware Updates

Control Quantity:

  • KlingNet/Art-Net/sACN: max 34x Pixie Strip 30; 17x Pixie Strip 60; 8x Pixie Strip 120
  • ArtNet: 170 pixels max each port
  • sACN: 170 pixels max each port

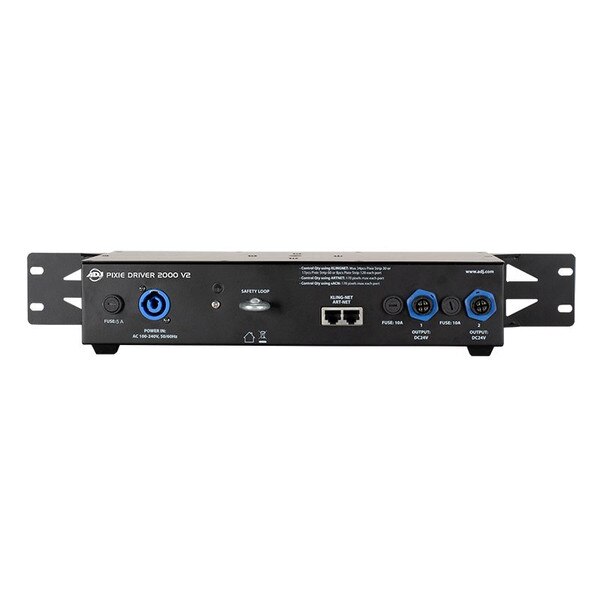

  • Power: PowerLock Input
  • Two KlingNet / Artnet ethernet ports
  • Two 4-pin DC24V power/data outputs to Pixie Strips

Mounting Options:

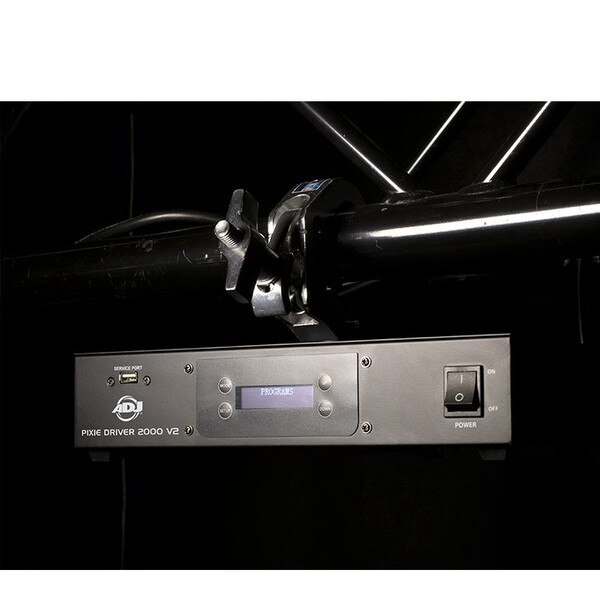

  • Bolt to add a clamp to hang from truss (clamp and truss not included)

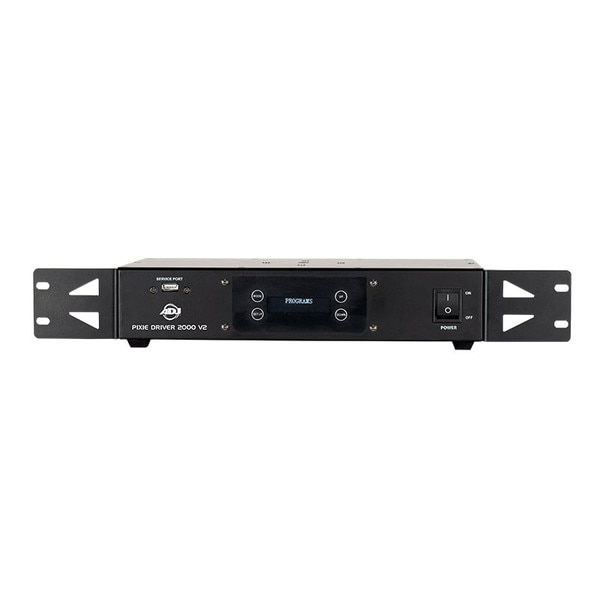

  • Includes 19-inch rack mount ears
  • Safety eye


  • Multi-voltage operation: AC 100-240V, 50/60Hz
  • Power Consumption: 400W max
  • -4°F to 113°F (-20°C to 45°C)

Dimensions / Weight:

  • Dimensions (LxWxH): 18.9” x 7.11” x 2.91” / 480x180.8x74mm
  • Weight: 5.6 lbs. / 2.5 kg.

What's Included:

  • Twist-Lock power cable
  • 19-inch rack mount ears
  • 4-pin data cable


  • CE | cETLus


  • PSLC1 (PIX158): 1-foot Pixie Strip Link Cable
  • PSLC3 (PIX174): 3-foot Pixie Strip Link Cable
  • PSLC5 (PIX188): 5-foot Pixie Strip Link Cable
  • PSLC10 (PIX200): 10-foot Pixie Strip Link Cable
  • PSLC15 (PIX213): 15-foot Pixie Strip Link Cable
  • PSLC25 (PIX229): 25-foot Pixie Strip Link Cable
  • PSLC50 (PIX242): 50-foot Pixie Strip Link Cable

ADJ Pixie Driver 2000 V2 - User Manual 2023-08-10.pdf
ADJ PIXIE DRIVER 2000 V2 - Driver Output Limitations.pdf
ADJ Pixie Driver 2000 V2 - Dimensional Drawing.pdf
