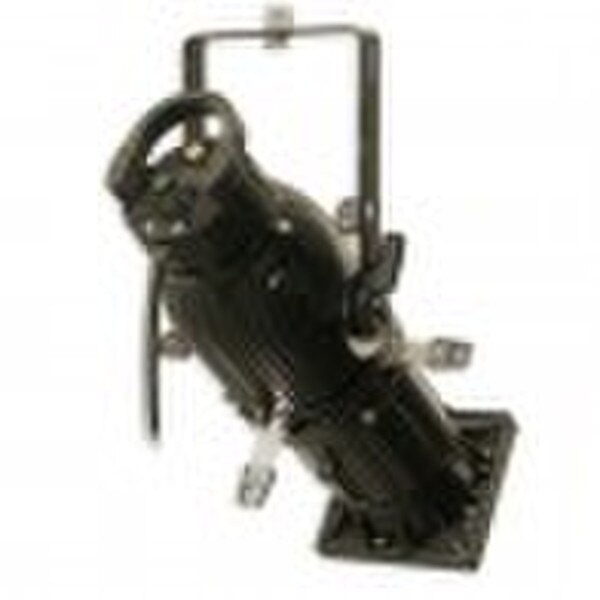

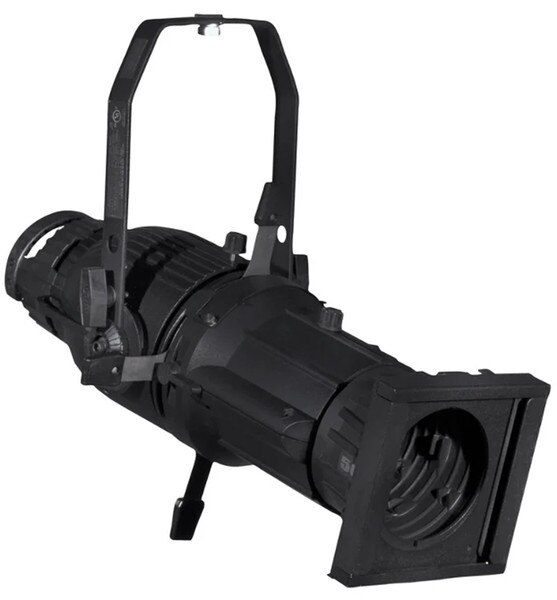

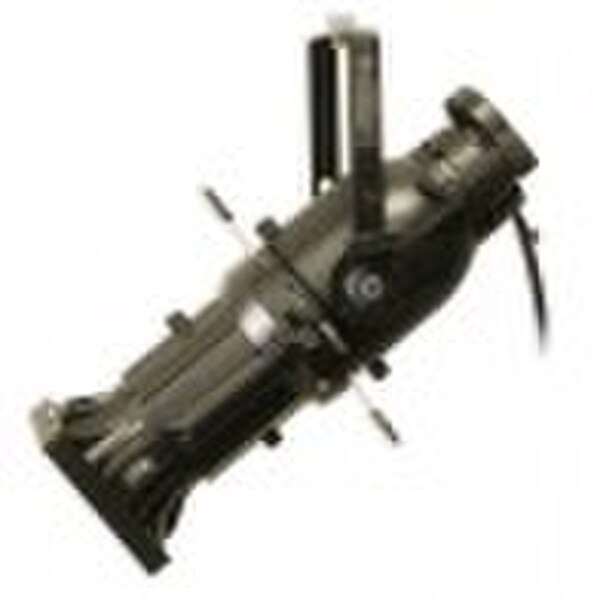

Altman Phoenix 50 degree Ellipsoidal - 120V
Details
Features:
Specifications_Sheet_84715_File_1.pdf
User_Manual_84715_File_2.pdf
- Compatible with GLA Series 375W, 575W and 750W compact filament lamps
- 360° rotating barrel
- Locking shutters and gobo
- Complete 360° enclosed accessory holder
- Heat resisting Plano-Convex lenses
- Aluminum die cast and sheet metal construction
- Up to 36 Hi-Temp rubber cable as standard
- Color frame and safety cable with spring clip included
- Spring mounted dichroic coated glass reflector
- Tool free interchangeable lens barrels
- Three 36" Teflon lead wires
- Made in the USA
- Housing: Die-cast aluminum construction
- Materials: Construction employs corrosion-resistant materials and hardware
- Yoke: Rigid flat steel with dual locking dog tilt handles, two mounting positions, indexed tilt angle markings
- Reflector: Spring mounted dichroic coated glass, ellipsoidal design
- Lenses: Color coded crown glass (white plate) lenses provided with anti-reflective coating. Molded front lens made of polymeric plastic for 5° and 10° only
- Socket: G9.5 medium two-pin or HPL lamp holder, axially mounted, supplied with heat shield. Tool free relamping.
- Rating: 100, 120, 240 volts AC/DC operation, 6.3/3.1 amps, 750 watts maximum
- Cable: 36" Teflon leads encased in black fiberglass sleeving, rear cord wrap provided

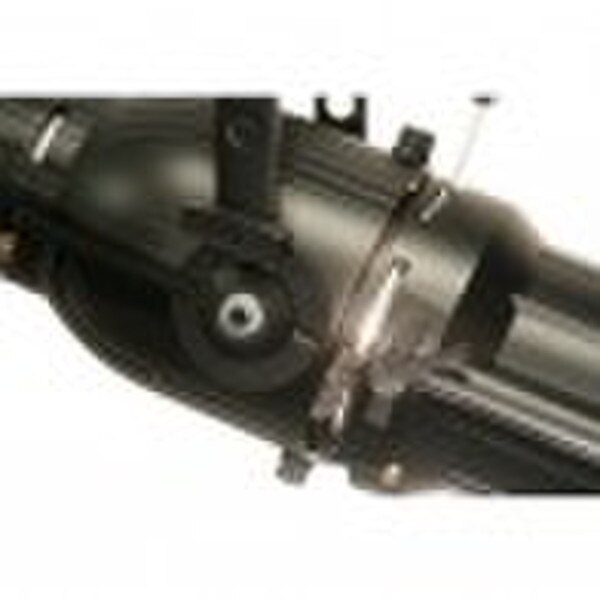

- Shutters: Four .037" stainless steel, fully adjustable and lockable. Constructed with oversized heat resistant handles.

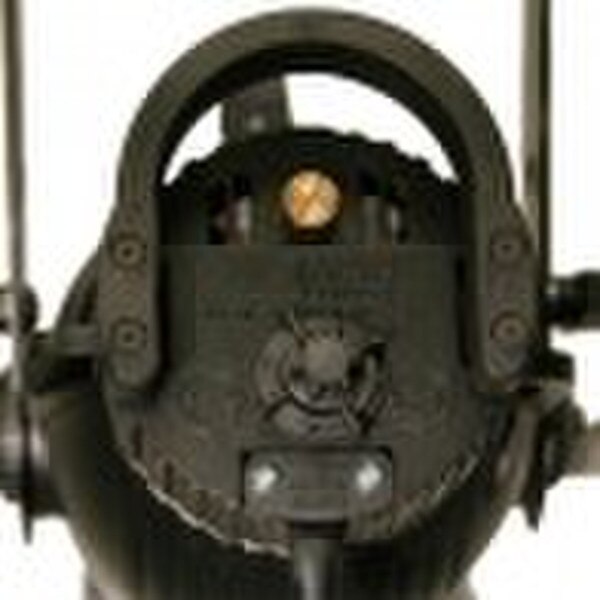

- Access Door: Reversible access door with thumb screws
- Focusing Lamp: Fully adjustable in three axis with two concentric Ultem 2100 heat resistant knobs
- Focusing Fixture: Lens barrel travels on nylon glides. Provided with heat resistant lock knob.
