Blizzard 2-FER-3PIN

At A Glance:

• 2-way power + DMX splitter
• 1 x powerCON compatible inputs & 2 outputs
• 1 x DMX signal input & 2 outputs

Tech Specs

The Rundown:

• 2-way power + DMX splitter
• 1 x powerCON compatible inputs & 2 outputs
• 1 x DMX signal input & 2 outputs

Summary:

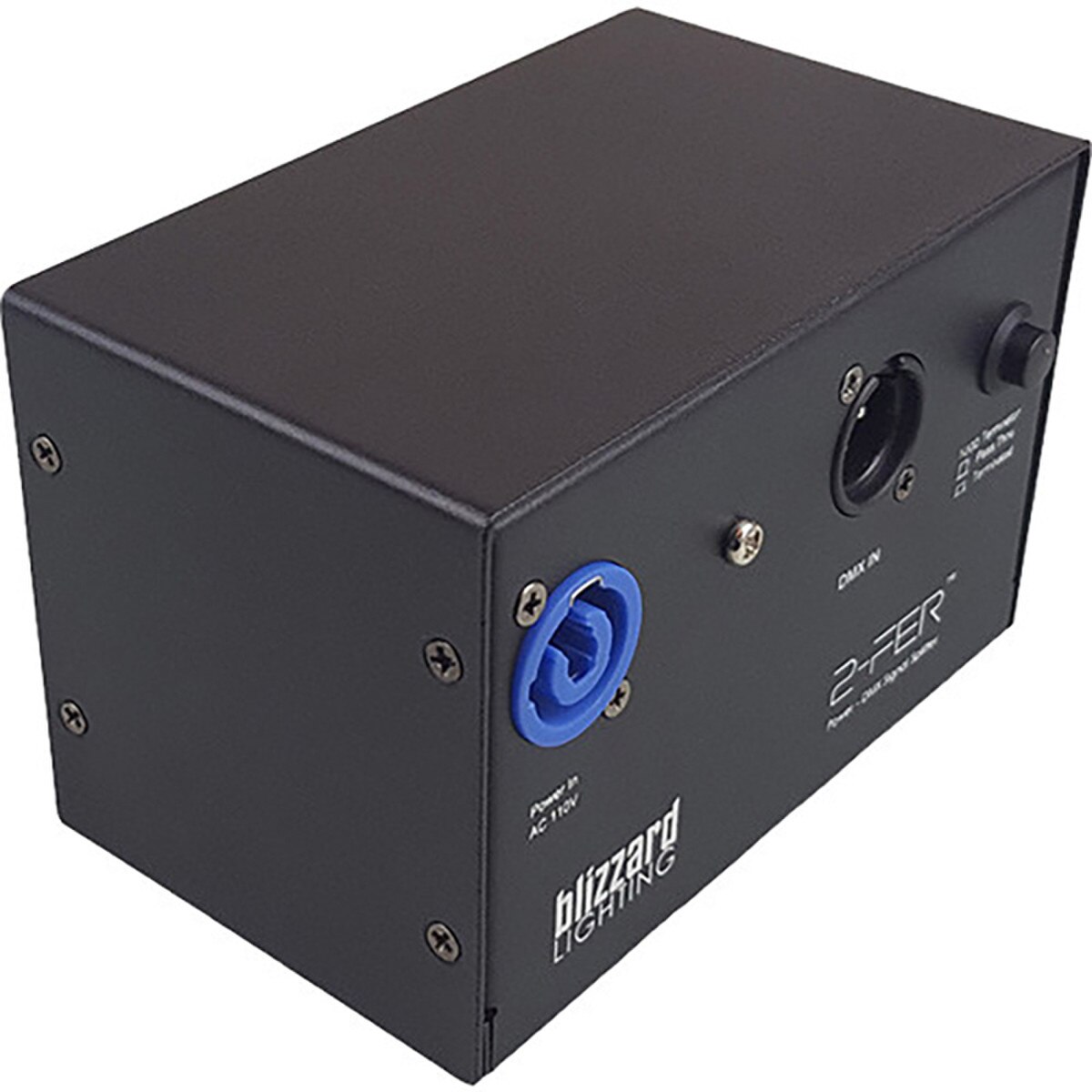

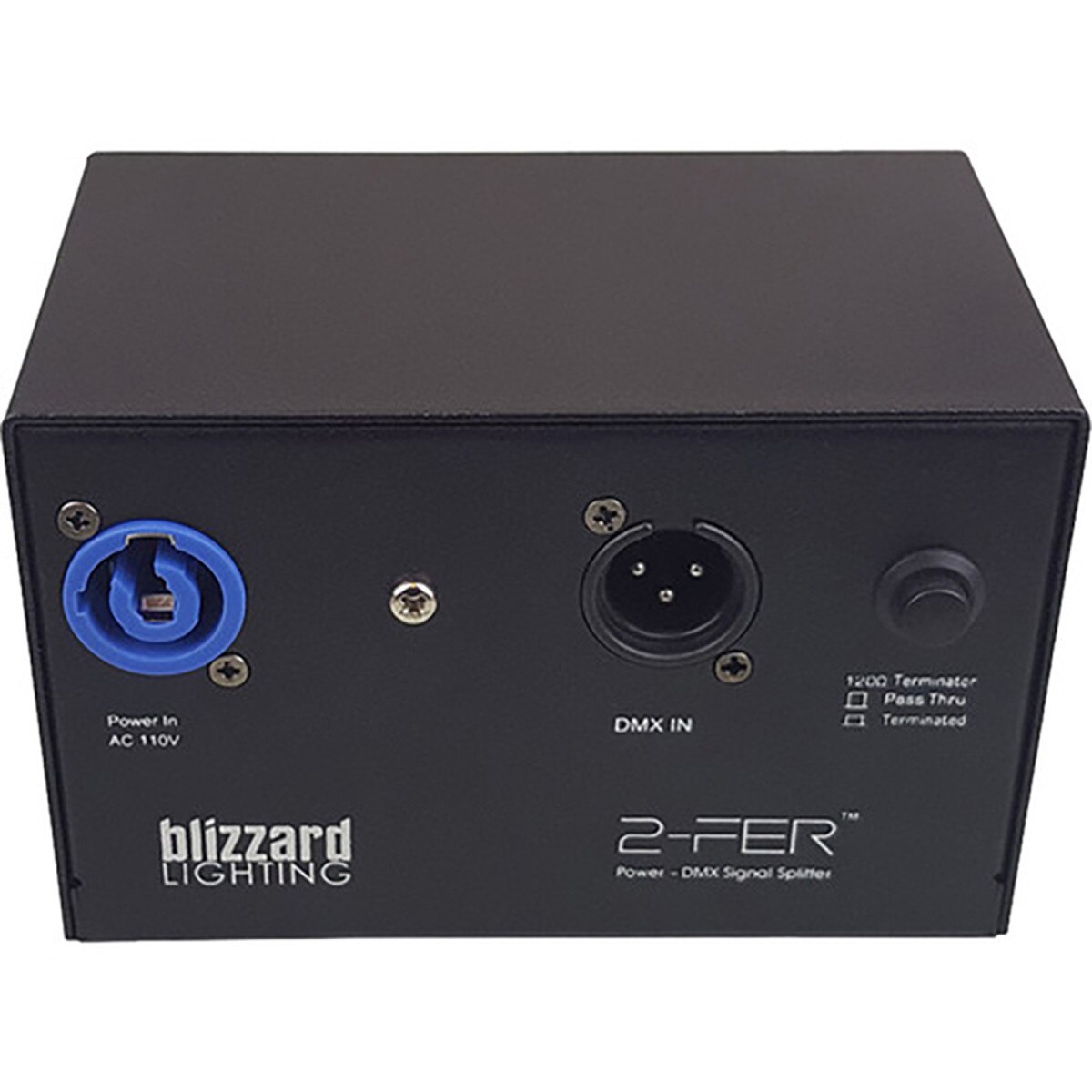

2-Fer™ 3Pin is a 2-way power splitter + 2-way DMX splitter, all housed together in 1 convenient unit. It's an ideal accessory for use in any situation where powerCON® power cables and DMX cables are frequently used. It is also a great fit with Blizzard's DMX-PC (DMX + powerCON® compatible) combo cables. They are well-built, reliable, and designed to make lighting setups a whole lot simpler.

Warranty:

• 2 Year - Extendable

Power & Current:

• Operating Voltage: 110-240VAC, 50-60 Hz

Dimensions:

• 3.5" x 3.3" x 5.4"
• 2.5lbs

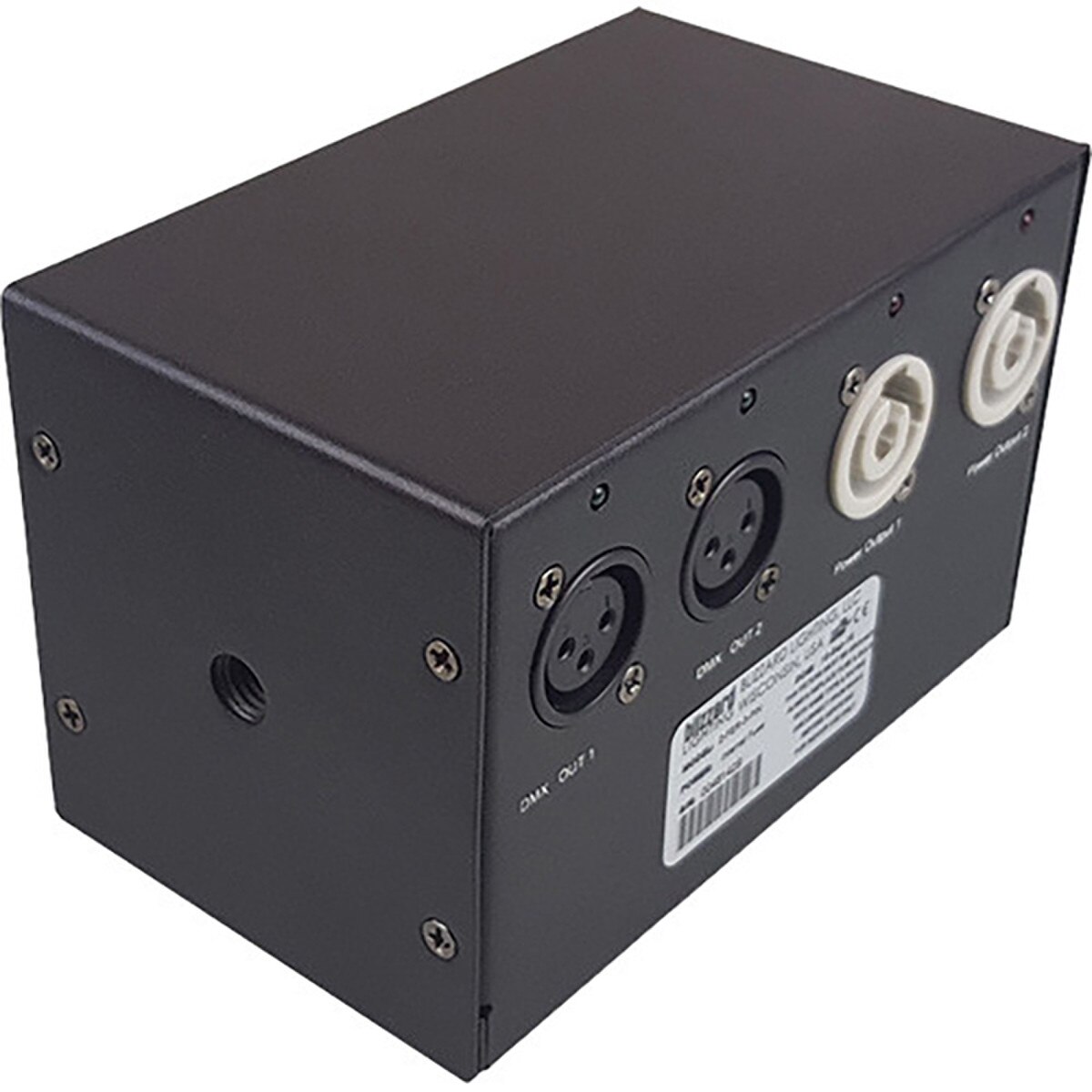

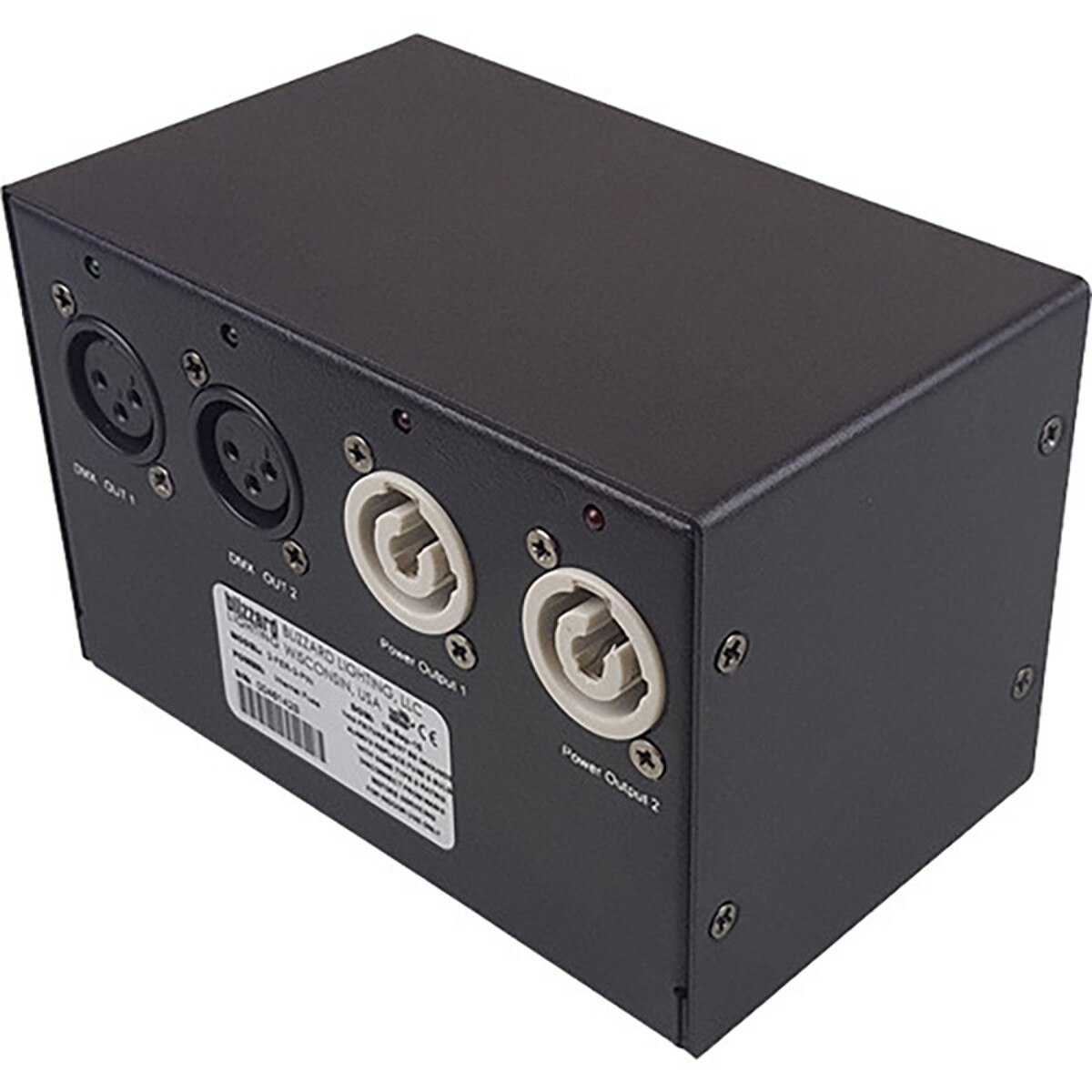

Connectors:

• 1 x DMX signal input
• 2 x DMX signal outputs
• 1 x powerCON® compatible input
• 2 x powerCON® compatible outputs

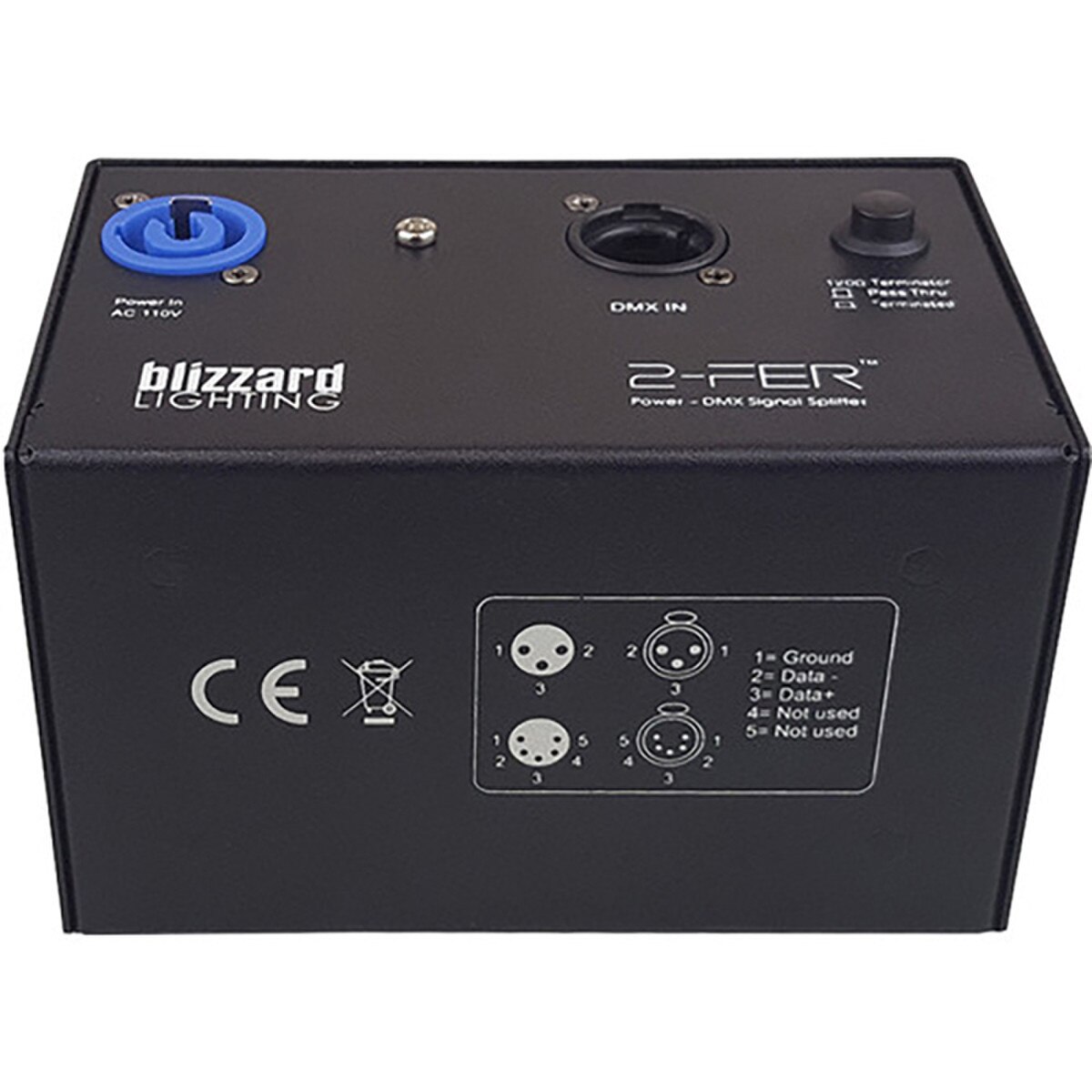

• Optically isolated 3-pin XLR connectors
• Flush mounted power connectors

Tech Specs:

• 120Ω terminator/pass thru switch
• 12/14 AWG internal wiring
• Output power/signal LED status indicators
• Housing Material: Steel
• Threaded clamp mounting hole (M10)

2-FER-3-PIN CUTSHEET
