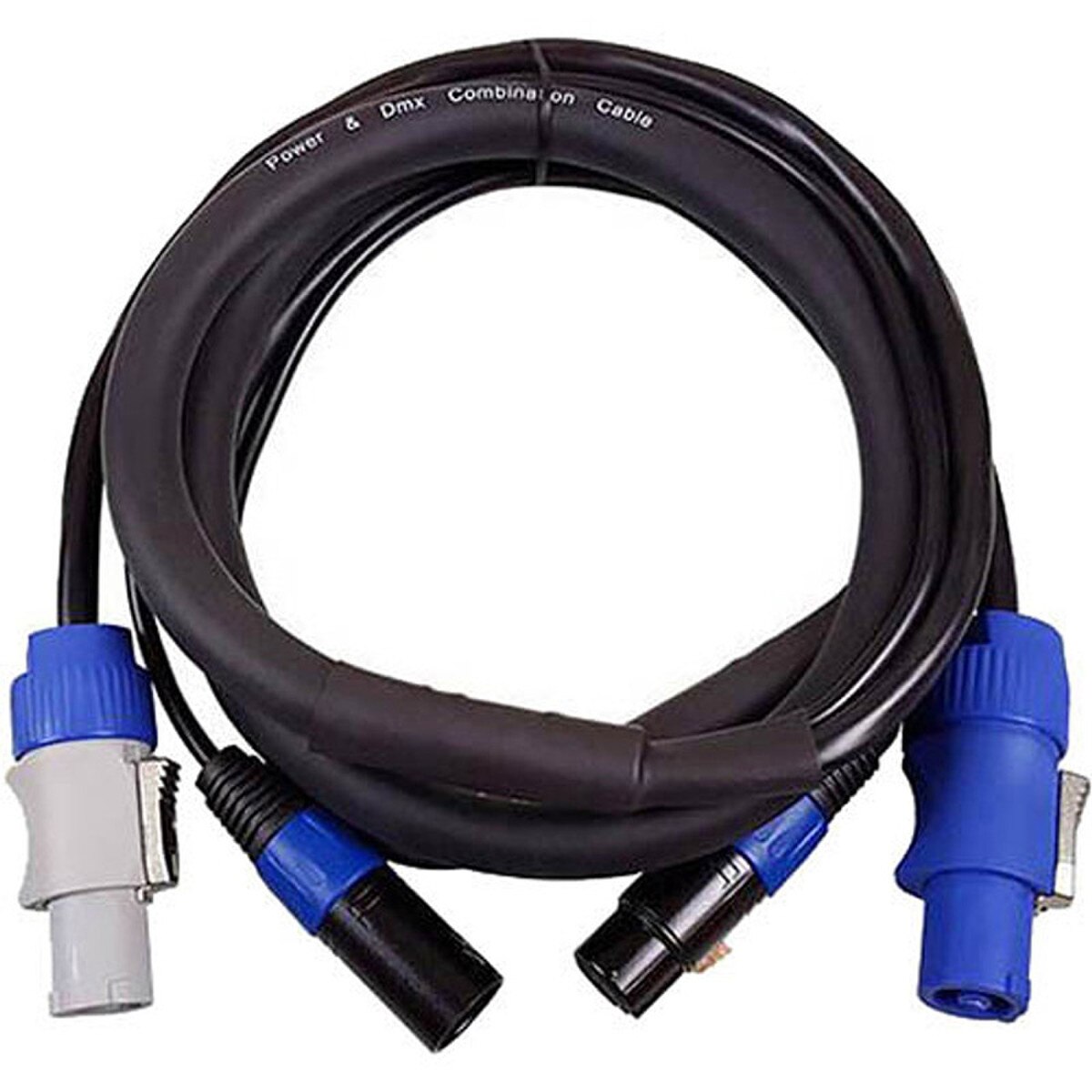

Blizzard DMX5PC-50 PowerCON Compatible (Male-Blue) to (Male-White) + 14 AWG Power + 5-Pin XLR(M) - XLR(F) DMX Combo Cable - 50ft

Description:

Make your lighting setup simpler and cleaner with Cool Cables powerCON + DMX combo cables. They can replace any set of individual power and DMX extensions with a single neatly wrapped cable. They come in various lengths, with 3-pin or 5-pin XLR connectors, and can be used to link the power and data of any equipment with DMX and powerCON input/output connections. The power cable features heavy-duty 14AWG wire, and is fitted with powerCON compatible input (blue) to output (white) connectors on either end.

Its DMX cable offers 120 ohm impedance, low capacitance, and a double (foil and braid) shield. On either end of the cable are high quality XLR(M) to XLR(F) connectors. And like all Cool Cables DMX cables, they offer reliable data transfer through their data-specific design and wire that is wrapped 5x tighter than any traditional XLR cable. Finally, both power and DMX cables are encased together in a highly flexible outer jacket with heat shrink.

Blizzard powerCON and DMX Combo Cable Overview:

The 50' Blizzard Lighting Cool Cable powerCON & DMX 5-Pin Combo Cable is a power/DMX combination cable designed to replace separate power and DMX cables for system installers, A/V technicians, and lighting designers in clubs, houses of worship, and live stage applications. It improves cable management by enclosing the power and DMX cables in a pliable outer jacket with heat shrink for the tidy, consolidated appearance of a single cable.

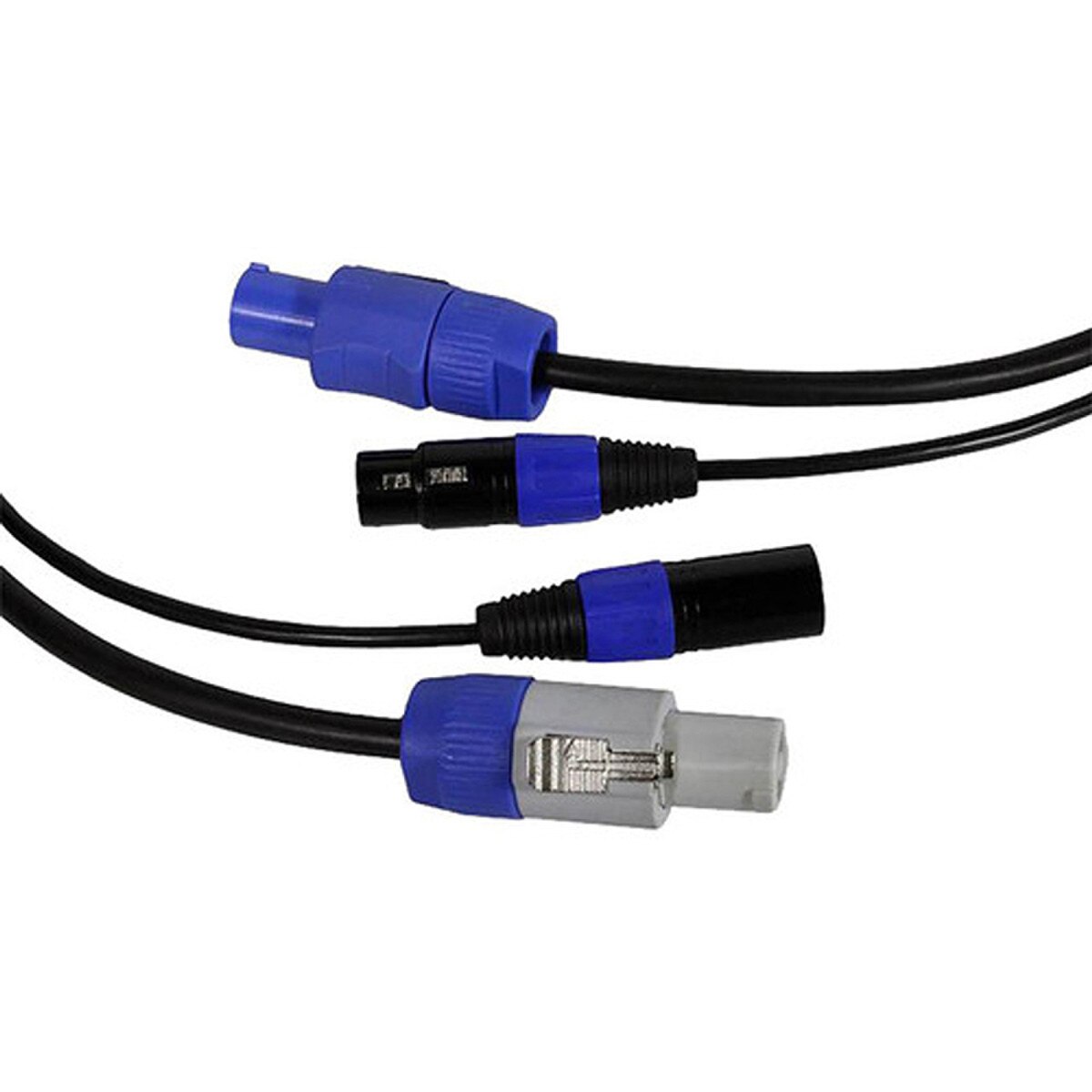

The heavy-duty 14 AWG power cable is terminated with color-coded, powerCON-compatible connectors. The low-capacitance, double-shielded DMX cable is terminated with XLR 5-pin jacks. Touch fastener straps are included for maintaining an orderly coil when storing or transporting the cable.

• Make your lighting setup simpler and cleaner by replacing separate power and DMX cables with this Cool Cable powerCON and DMX combo cable.
• The power cable features heavy-duty 14 AWG wire and is fitted with powerCON-compatible input (blue) and output (white) connectors.
• The DMX cable is wrapped five times tighter than traditional XLRs and features 120-Ohm impedance, low capacitance, a double (foil and braid) shield, and an XLR 5-pin connector on each end.
• Power and DMX cables are encased together in a highly flexible outer jacket with heat-shrink
• Use the included touch fastener straps to keep the cables neatly coiled when not in use.

Features

Power Cable:

• Heavy-Duty 14AWG
• powerCON® compatible input (blue) connector
• powerCON® compatible output (white) connector
• 3 conductor cord, heavy duty - black
• Maximum amperage: 15 amps
• DMX Signal/Data:
• 3-pin or 5-pin XLR (male/female) connectors, black/blue
• Double shield (foil and braid)
• 120 ohm impedance
• Low capacitance
• Limited lifetime warranty
• Dual velcro straps included with each cable

Key Specs:

• Cable Length: 50' / 15.2 m
• Environmental Resistance: No

Packaging Info:

• Package Weight: 8.465 lb
• Box Dimensions (LxWxH): 13.55 x 12.9 x 4.95"
