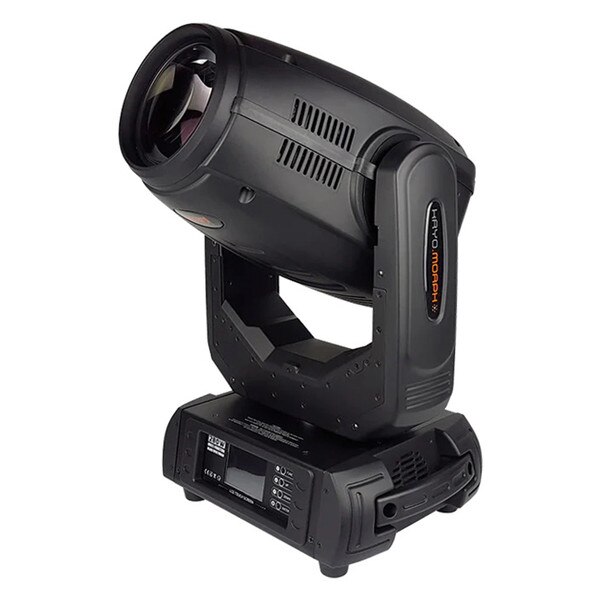

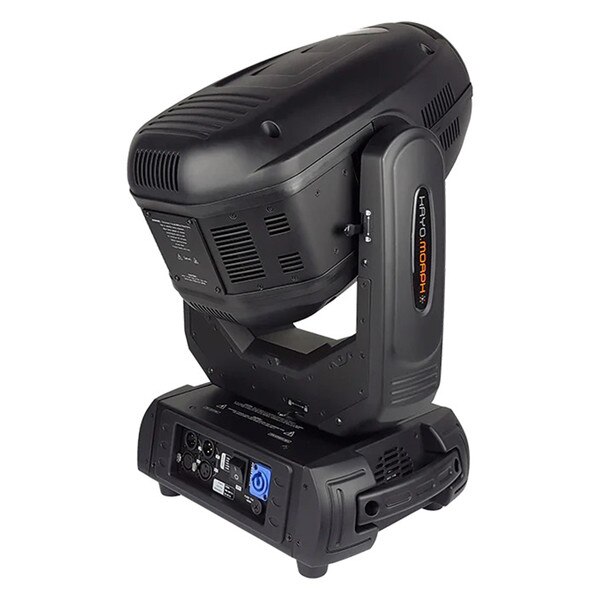

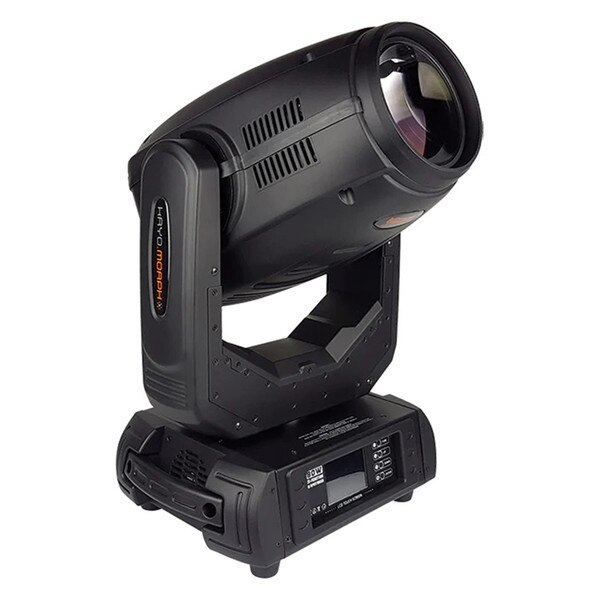

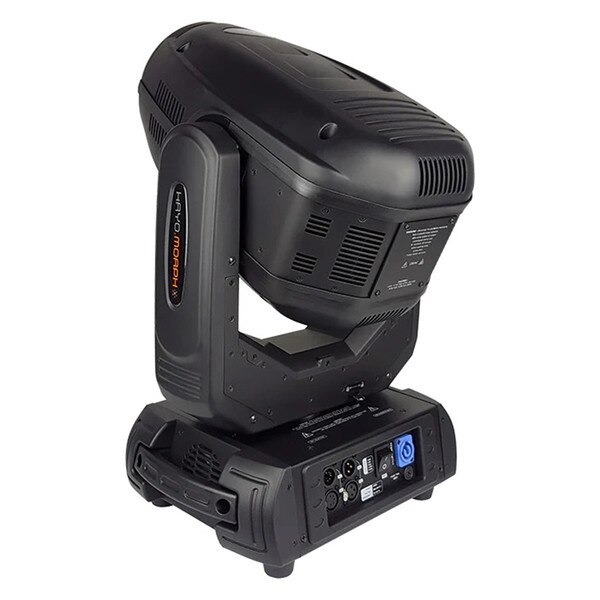

Blizzard Kryo.Morph 3-In-1 Beam/Wash/Spot with Gobo Wheel

At A Glance:

• Beam/Wash/Spot 3-in-1 Moving Head
• HRI 280W Lamp, 2000 hrs (Standard), 3000 hrs (Eco mode)
• 9 rotating (+ white), and 10 static (+ white) gobos

Shape Shifting Beams:

Kryo.Morph™ fixtures are built to impress with 3-in-1 beam/wash/spot shape shifting effects. With an HRI 280W lamp light source, it has the power to cut through fog with ease. It offers static and rotating glass gobo effects that can produce sharp in-air and surface images with narrow 5°-20° (spot), or 2.5°-10° (beam) effects.

Fine Features:

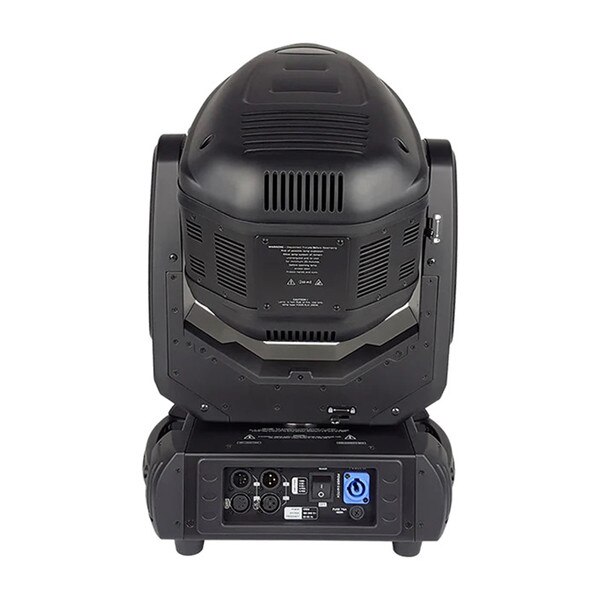

Some of the outstanding features of Kryo.Morph™ include 540/270° pan and tilt movement, 9 rotating gobos, 14 static gobos + open, 13 colors + white, 6/8-facet rotating prism, motorized zoom and focus, frost filter, 4-button + touch screen LCD control panel, powerCON® compatible power input, and dual ¼ turn omega mounting brackets.

Optical:

• HRI 280W discharge lamp
• 5-20° (spot), 2.5-10° (beam)

Luminous intensity:

• Wash (w) 3,707 Lux @ 5M
• Wash (n) 12,420 Lux @ 5M
• Spot (w) 6,588 Lux @ 5M
• Spot (n) 76,955 Lux @ 5M
• Beam (w) 46,094 Lux @ 5M
• Beam (n) 132,811 Lux @ 5M

Gobo Size:

• 14.75mm O.D., 13mm I.D.

Movement:

• Pan: 540° (8/16-bit)
• Tilt: 270° (8/16-bit)

Control:

• Protocol: USITT DMX-512
• DMX channels: 16/24
• Touch screen LCD menu
• 3 user editable programs, each up to 100 steps
• Operating modes: standalone, M/S, auto, sound active

Power:

• Operating voltage: 100-240VAC, 50-60 Hz
• Power consumption: 365W, 3.12A, PF: .98
• Fuse: 5A/250V

Warranty:

• 2-year limited warranty
