ChamSys SnakeSys 10Scene Wall Station
Details

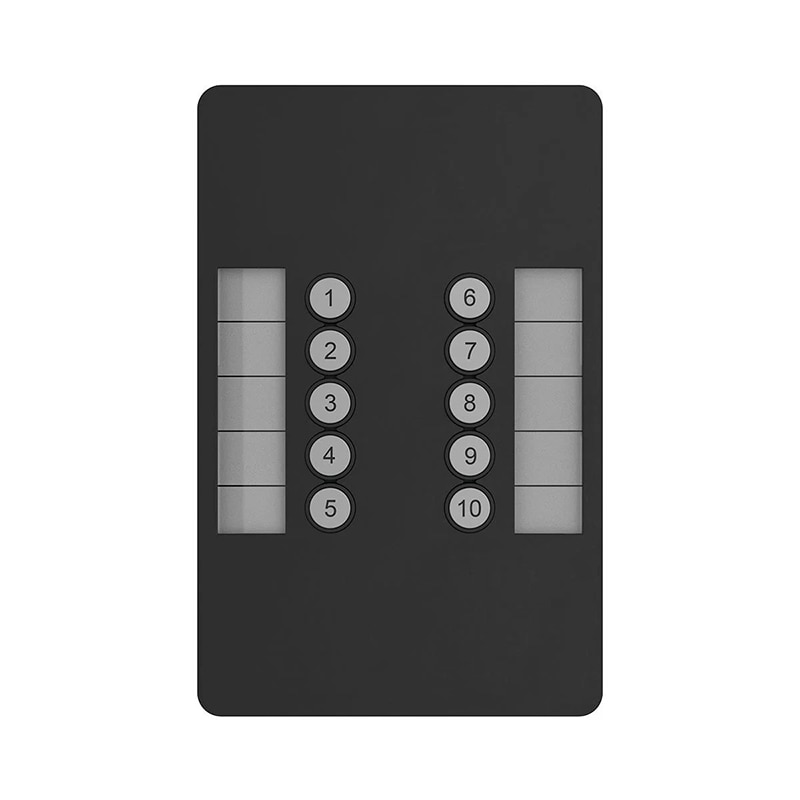

The 10Scene Wall Plate can be connected directly to the QuickQ Rack or to the SnakeSys Gateway interface to integrate with any MagicQ or QuickQ system for remote scene activation. The Wall Plate has ten 10Scene trigger buttons, each with dual color LED status indication.
Includes:
- CHAMSS10SCENEUS
Features:
- Uses standard Cat5e cable for connectivity
- Connects directly to QuickQ Rack or 10Scene Gateway with no power injectors required
- Easy to daisy-chain with up to ten 10Scene Wall Plates per chain
- Long distance signal transmission: One 10Scene at 1000 meters (3280 ft.) or five 10Scenes in a chain at 300 meters (984 ft.)
- Packaged as a 2-wall plate set with 2 white and 2 black clip-on faceplates
Specifications:
- 710Scene Buttons: 10
- Powered via 10Scene Protocol: Yes
- Dual-color red/blue status LEDs: Yes
- Max Number of 10Scene wall plates per chain: 10
- Compatible with both MagicQ and QuickQ systems: Yes, via Gateway
