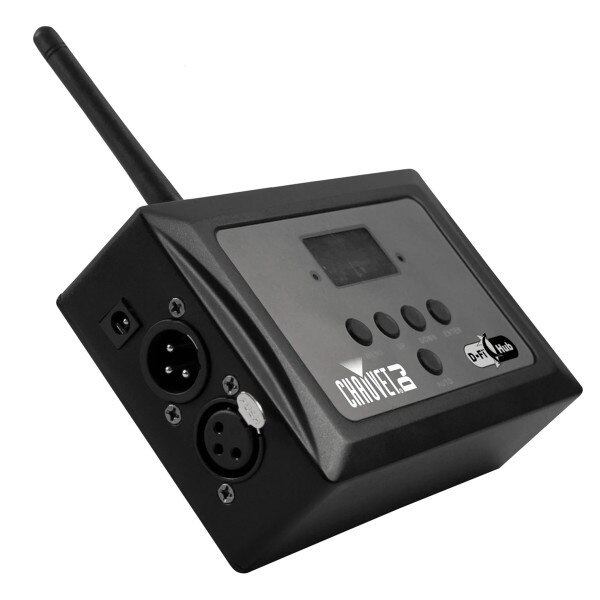

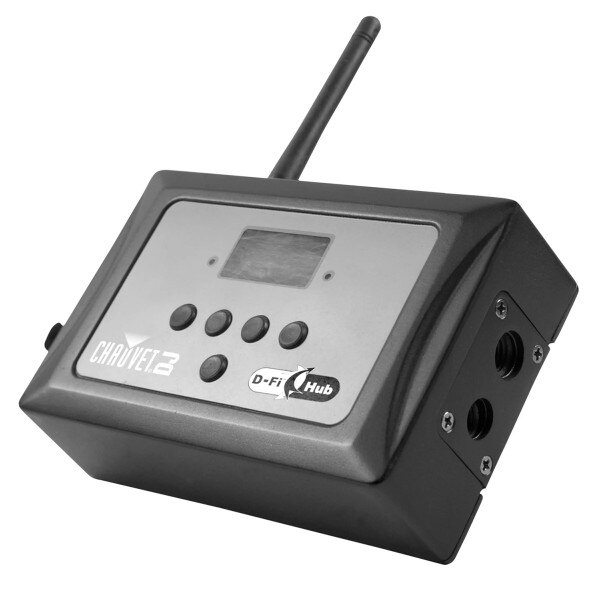

Chauvet DJ D-Fi Hub

(0)No Reviews yet
$159.99
SKU: Chauvet DJ DFIHUB

Details

The Chauvet D-Fi™ Hub is a compact, easy-to-use DMX unit that functions as either a transmitter or receiver. For more stable communication between units, it operates on a 2.4 GHz frequency range and includes an “auto” function which automatically finds the best frequency and syncs the units effortlessly. You can wirelessly synchronize an unlimited number of D-Fi™-ready fixtures simultaneously, and operate them using the simple navigation on the OLED digital display.

Features:

  • Compact, easy-to-use wireless D-Fi™ transmitter and receiver in a single unit
  • Wirelessly synchronize an unlimited number of D-Fi™-ready fixtures and receivers simultaneously
  • Built-in options include manual or automatic channel selection

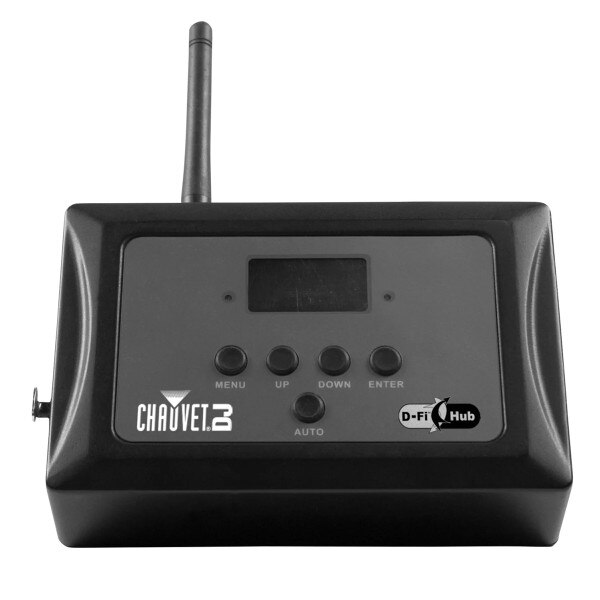

  • Simple navigation and text readout using the OLED digital display

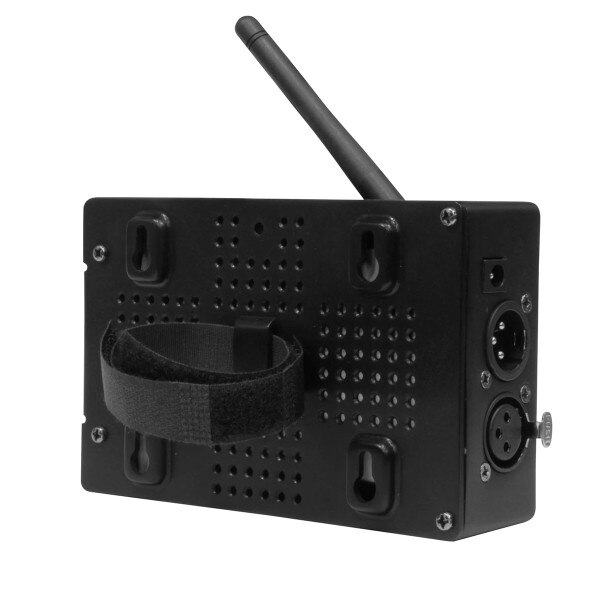

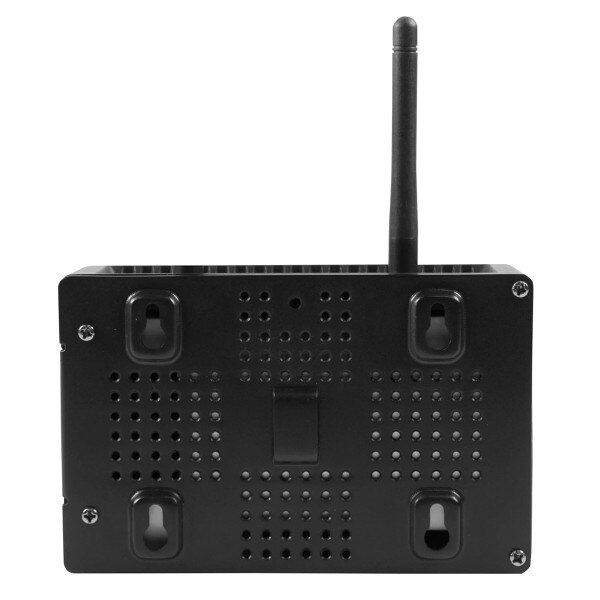

  • Mounting options include built-in hook and loop fastener strap, keyhole mounting holes, M10 and M12 threaded holes for direct mounting to truss
  • Fully FCC/RTTE compliant

Specifications:

  • DMX Connectors: 3-pin XLR
  • Operating Frequency: 2.412 to 2.484 GHz
  • Antenna connection: RP-SMA
  • Max Unobstructed Distance: 656' (200 m)
  • Input Voltage: 9 VDC, 500 mA (external power supply: 100 to 240 VAC, 50/60 Hz)
  • Power and Current: 4 W, 0.1 A @ 120 V, 60 Hz
  • Power and Current: 4 W, 0.1 A @ 230 V, 50 Hz
  • Weight: 1.2 lb (0.6 kg)
  • Size: 4 x 3.2 x 1.6" (102 x 82 x 41 mm)
  • Approvals: CE, FCC

Product_Specifications_88968_File_1.pdf
D-Fi-Hub Quick Reference Guide.pdf
D-Fi_Hub User Manual.pdf
