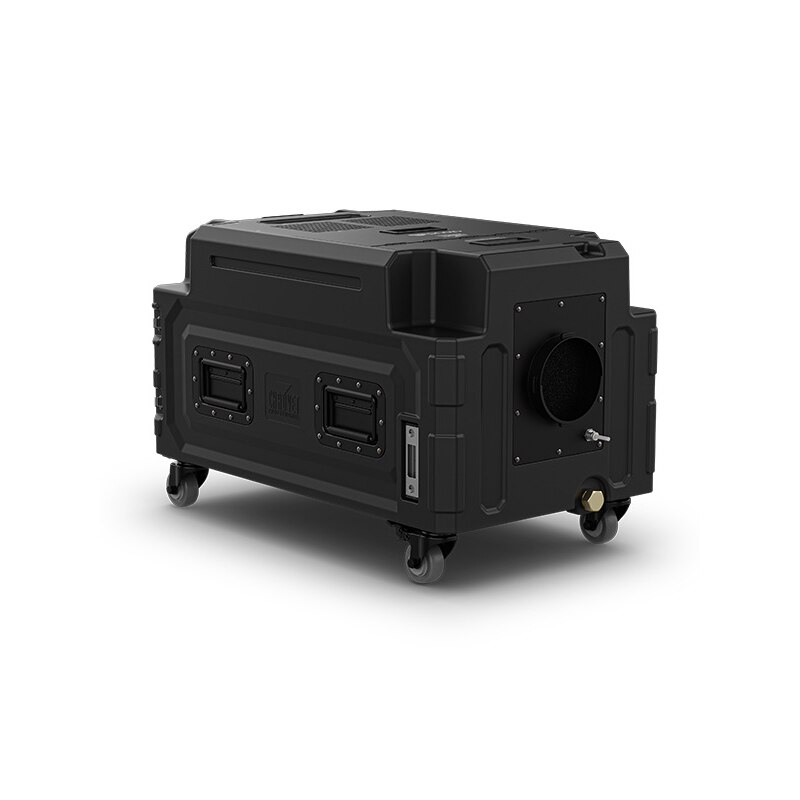

Chauvet Professional Cloud 9X IP

Cloud 9X IP is a compact low-lying fogger that produces high-impact floor-hugging fog ideal for stages and ballrooms. No refrigeration, dry ice or CO2 is needed, making for easy and safe operation that requires no special handling, licensing, or training.

Cloud 9X IP creates continuous output using only LLG low-lying fog fluid and tap water (no need for distilled!). Taking full advantage of its new ability to use water from a faucet, Cloud 9X IP features a rear fitting that accepts a regular garden hose for automated refilling as water is depleted.

With a fast five-minute heat-up time and integrated water drainage system with a durable brass fitting that withstands repeated use, Cloud 9X IP setups and cleanups are always quick, easy, and reliable. Convenient control is available in any setting or application, via full-color onboard control display, RDM, DMX, or its included wireless RF handheld remote.

Cloud 9X IP features an upgraded housing that is not only inherently corrosion resistant, but also signficantly lighter than the previous Cloud 9 model that it replaces (total weight has been reduced from ~120lbs to ~75lbs). Its new housing is also stackable (up to 3 tall), making for easy transportation by truck, and features a removable rear cover for storing accessories, keeping everything self-contained in the unit.

At a Glance:

• Compact, professional fogger gives high-impact low-lying fog effect on stage or in ballrooms
• Suitable for temporary outdoor/wet use
• Continuous operation produces fog to cover 3,230 ft2 (300 m2) area
• Ultrasonic agitators combine water with fog to produce low-lying fog effect
• Ships in integrated, rugged flight case with locking casters suitable for rental/touring applications with removeable cover for rear panel
• Control via on board full color display, wireless (RF) handheld remote, or DMX
• Integrated water drainage system makes cleanup fast and easy
• Use the low-lying fog fluid (LLG) to produce the CO² effect, which lasts for several minutes before dissipating
• Use without dry ice or CO2, so no special licensing/training required
• USB-C slot for software uploads

Specifications:
Dynamic Effects:

• Fan Performance: 81 cfm
• Low Fluid Shutdown: Yes

Construction / Physical:

• Dimensions (without back cover): 30 x 17.36 x 19.22 in (762 x 441 x 488.1 mm)
• Dimensions (with back cover): 37.72 x 17.36 x 19.22 in (958 x 441 x 488.1 mm)
• Output Nozzle (Outer Diameter): 4.76 in (121 mm)
• Hose Length (Fully extended): 11 ft (3.4 m)
• Weight: 76.6 lb (34.75 kg)
• Exterior Color: Black
• Housing Material: Aluminum alloy, High-impact flame-retardant polymer
• Water Tank Capacity (Primary Tank): 5.28 gal (20 l)
• Water Tank Capacity (Reserve Tank): 2.48 gal (9.4 l)
• Water Tank Capacity (Total): 7.77 gal (29.4 l)
• Tank Capacity (Low-lying Fog Fluid): 0.8 gal (3 l)
• Fluid Consumption: 27.8 ml/min
• Maximum Runtime: 2 hr

Connections:

• Power Input: Seetronic Powerkon IP65
• Data Connectors: 3-pin/5-pin IP ratedCable Length (power): 5 ft (1.5 m)Firmware upgrades: USB type-C

Control:

• Control Protocol: DMX, RDM, Wireless Remote
• DMX Channels: 3
• Modes/Personalities: 1 personality (3ch)
• On-Board Control: Yes
• Included Remote: Yes

Electrical:

• Input Voltage: 120 VAC, 60 Hz
• Input Voltage: 230 VAC, 50 Hz
• Power and Current: 1960 W, 17.5 A @ 120 V, 60 Hz
• Power and Current: 1281 W, 5.59 A @ 230 V, 50 Hz
• Heat-up Time: 5 min
• Breaker Size: 10 A, 250 V

Certifications / Qualifications:

• CE, ROHS, UKCA
• IP Rating: IP54, temporary outdoor/wet use
• Temperature (Ambient): -4 °F to 113 °F (-20 °C to 45 °C)

What's Included:

• Cloud 9 X IP
• Seetronic Powerkon IP65 power cable
• RF remote (2-button)
• Hose clamps (x2)
• Barbed hose adapter (0.5 in)
• 6ft (2m) output hose, 5 in, (130 mm) diameter
• Removable rear cover
• Hose coupler, 5 in (130mm) diameter
• Floor nozzle, 5 in (130mm) diameter
• Overfill hose (polyurethane, 6mmOD, 4mm ID, 80 in / 204 cm)
• Quick Reference Guide

Required Accessories:

• Accessories (required): Fog Fluid-LLG
• Compatible Mounting Options: Floor Mount/Positioning only w/locking wheels

Optional Accessories:

• Neutrik powerKON cables
• DMX Cables
