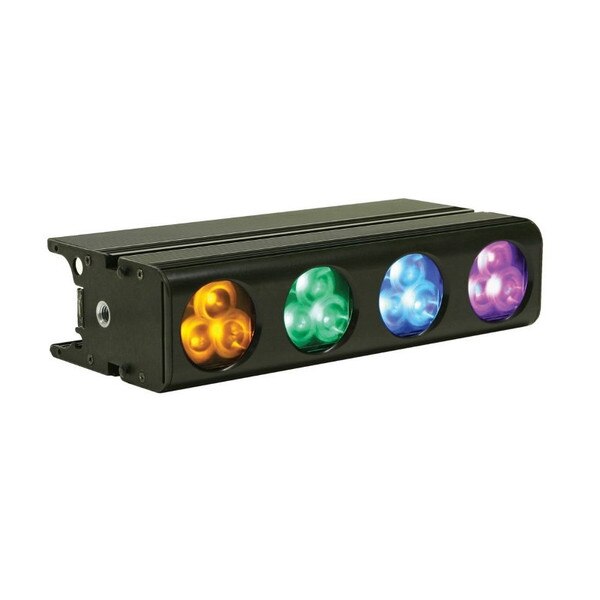

Chroma-Q Color Block 2 Plus
Details
The Chroma-Q™ Color Block 2 Plus is a higher output version of the original Color Block 2™ multi-purpose LED fixture that retains the same versatile modular 'building block' design, single colour RGBA optics, high light output and theatrical grade dimming to create an exceptional all-round feature set.
Features:
- 40% more lumen output (750) compared to original Color Block 2 (530)
- Color Block 2 emulation mode
- Compatible with all Color Block 2 PSUs and accessories
- CRI of 90 – for tungsten emulation
- Extensive color range - create subtle theatrical hues
- Single color diffused optics - virtually eliminate multicolored shadows & offer camera friendly output
- Modular construction with range of fixing accessories - easily configured as a wide variety of shapes
Controls and Photometrics:
- LEDs: 3 x RGBA single color output LEDs x 4 cells, total 48 LEDs
- Control Modes: HSI, RGBA, RGB (Magic Amber), RGBI (Magic Amber) & stand-alone
- Dimming Curve: Theatrical
- Variable Effects Engine: Yes
- Effects Parameters: Grouping, color speed, color range, step, and intensity effects
- Hot Lumen Output:
- CB2 Plus Mode: 750
- CB2 Mode: 530 (Red 370, Green 623, Blue 78, Amber 338)
- Optics: Specialized close focus lens
- Beam Angle: 25° (approx.)
- Beam Distribution: Asymmetrical direct illumination
- CCT: Adjustable 1,000 - 10,000K
- Color Gamut: Performance enhanced
- CRI: 90
- Lamp Life: L70 at 50,000 hours
Specifications:
- Power Input Rating: 48V DC
- Power Connector In/Out: XLR4 in/out
- Data Connector In/Out: XLR4 in/out
- Max Cable Run: 200 ft (60m)
- Power: External PSU
- Cooling System: Forced air
- Construction: Anodized aluminum extrusion
- Built-In Hardware: Interlocking system & quick release catches for connecting as battens, 2 x M10 nuts for additional fixings
- IP Rating: IP20
- Dimensions (With No Fixings): 9.8" (250mm) x 2.4" (62mm) x 4.7" (119mm)
- Weight: 3.1 lbs (1.4 kg)
