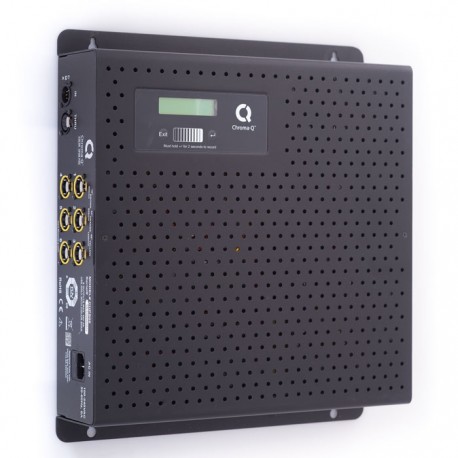

Chroma-Q Color Span PSU02

The power supply shall:

• Provide control of multiple fixtures up to 1,200mm / 48” each in length.
• Feature a large backlit LCD display.
• Feature built-in programming modes.
• Work as a stand-alone unit.
• Feature a real-time clock.
• Come with nine pre-programmed looks and store up to 42 custom looks on board.

Controls multiple 1,200mm / 48” Color Span / Color Span 2 fixtures.

• Nine pre-programmed looks.
• Stores up to 42 user programmed looks.
• Real-time clock
• Synchronisation across power supply for the effects engine.
• True random strobe effect.
• 12 control modes.
• Three grouping modes.
• Backlit LCD display.
• Choice of DMX or stand-alone control modes.

Specifications:

• Net dimensions:
  • Width: 194mm / 7.6”
  • Height: 140mm / 5.5”
  • Depth: 127mm / 5”
• Net weight: 9.4kg / 20.6lbs
• Shipping dimensions:
  • Width: 280mm / 11”
  • Height: 185mm / 7.3”
  • Depth: 130mm / 5.1”
• Shipping weight: 3.0kg / 6.7lbs
• Power input rating: 100-240V AC, 50-60Hz, 3A
• Power consumption: 2.5A @ 110V AC; 1.75A @ 230V AC
• Typical power & current: Measurements were done with all LEDs at max. intensity. Measurements made at nominal voltage. Allow for a deviation of +/- 10%.
• Power connector in/out: IEC chassis male
• Data connectors in/out: RJ45
• Max cable run: 5m / 16’
• Control protocol: ANSI E1.11 USITT DMX 512-A
• Cooling system: Ventilation required at the front, sides & top
• Operating temperature: 0°C to 40°C
• Construction: Powder coated steel
• Colour: Black
• IP rating: IP20
• Approvals: CISPR 22:2006/EN55022:2006, CISPR
  24:1997/EN55024:1998, ICES-003:2004,
  FCC Part 15 Subpart B:2007, CSA C22.
  166-M1983: R2008, CAN/CSA-C22.2
  60950-1-07, UL 60950-1:2007
• Control modes: 13 channels fxHSI, 6 channels HSI, 6 channels RGB, 9 channels fxHSI, 3 channels HSI, 3 channels RGB, 8 channels RGBA, 8 channels RGBI, 4 channels RGBA, 4 channels RGBI, 1 channel LkSel, Demo
• Variable effects engine: Yes
• Effects parameters: Grouping, colour speed, colour fan, colour range, colour step, intensity effects, intensity fan
