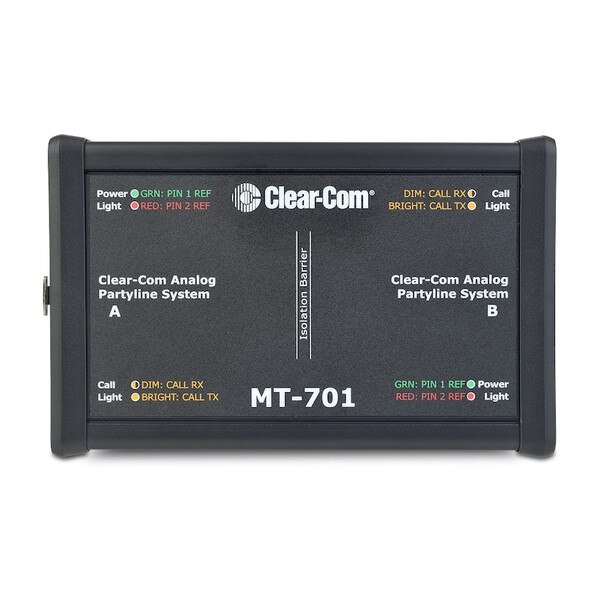

Clear-Com MT-701 - Isolator PCB for PL Interface

The MT-701 is an isolation box that is used to reduce hum in Encore Partyline products when multiple grounds are present. The MT-701 can also be used to bridge two Encore Partyline systems together.

Specifications:

• Audio
  • Pin 2 Impedance: >5000 Ohms
  • Max Level: +2 dBu
  • Distortion: <0.2% THD (200Hz – 10 KHz, -10 dBu)
  • Frequency Response: 100 KHz – 10 KHz, +2 dBu
  • Nominal Input Level: -18 dBu (Clear-Com)
• Connectors
  • (1) XLR-3M
  • (1) XLR-3F
• Power Supply
  • Power Consumption: <5 mA
• Temperature
  • Operating: 32°F - +122°F (0°C - +50°C)
• Dimensions
  • 3.2" W x 1.8" H x 5.0" D
  • (81.1mm x 46.1mm x 126mm)
• Weight
  • 0.6lbs (0.272kg)
