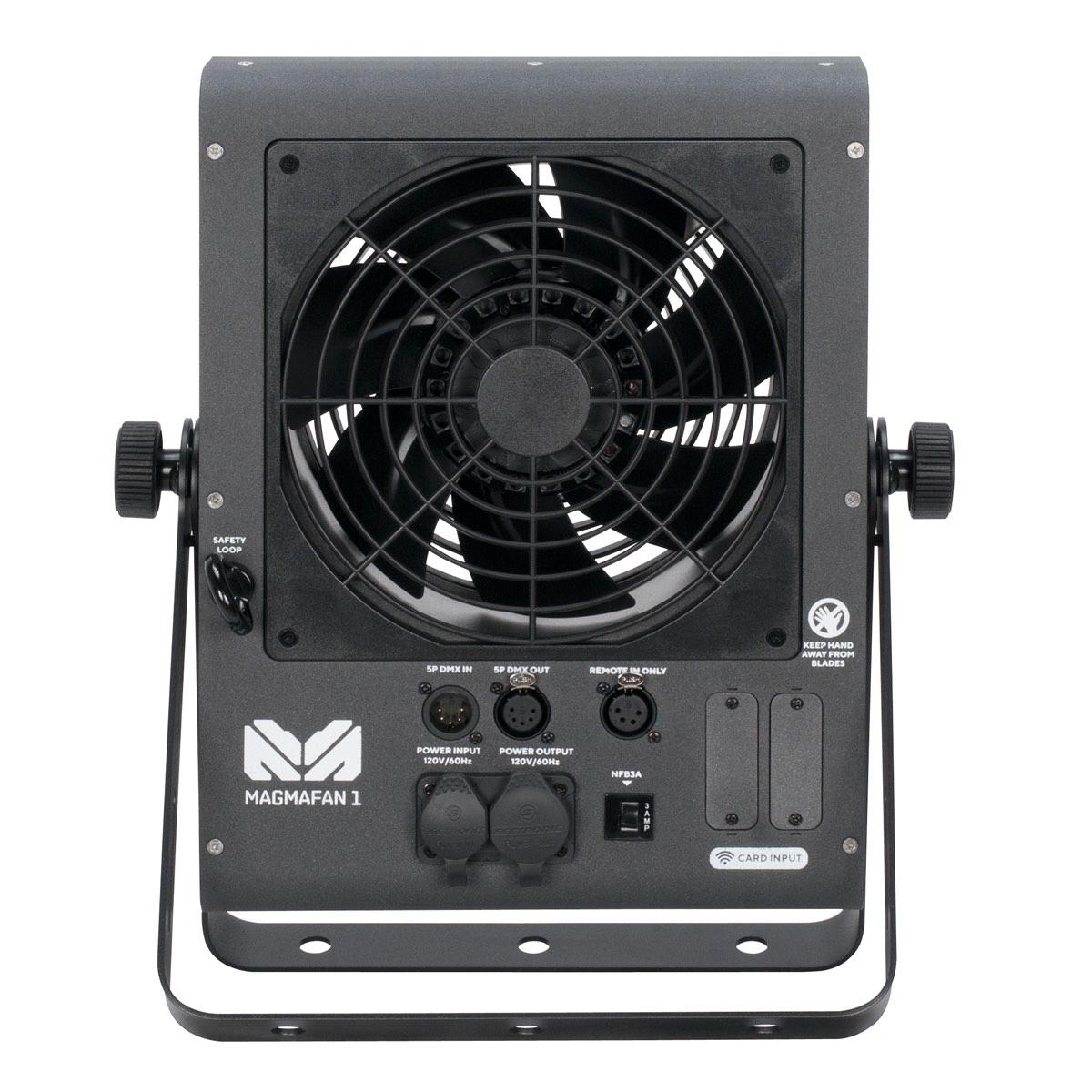

Elation MAGMAFAN1

MagmaFan 1 is a compact all-purpose stage fan that features multiple control options, linear output control, low power consumption, adjustable blowing directions, and durable metal housing.

Low power consumption is only 80W, allowing you to put on the same circuit as your fog machine. The adjustable mounting/floor bracket included enables you to adjust the fan output 90 degrees. Easy to use onboard LCD touch screen control panel, intuitive DMX-512, and RDM control. Its durable aluminum housing design allows easy carry and storage, with optional wired and wireless remote control.

Specifications:

PERFORMANCE:

Rated Power: 120W
Max. fan volume: (17m3/min 600CFM (US) - 15m3/min 530CFM (EU)
Fan angle: 0-360°
Fan speed range: 750-2800rpm (US) - 750-2550rpm (EU)

CONSTRUCTION:

Durable aluminum housing
Compact lightweight mobile design

CONTROL:

3 DMX Channel Modes (1 / 2 / 4)
Onboard LCD Touch Control Panel
DMX-512 and RDM Protocol Support
Optional MAGFLY Wireless DMX Transceiver
Optional MAGRF Wireless and Wired Remotes

CONNECTIONS:

Locking 5pin XLR Connector In/Out
IP65 Locking Power Connector In
With Wired Digital Communication Network

SIZE / WEIGHT:

Length: 13.2 in. (335mm)
Width: 4.9 in. (125mm)
Height: 15.6 in. (395mm)
Weight: 15 lbs. (6.8kg)

ELECTRICAL:

US Version: 120VAC 60Hz, Europe Version: 230VAC/240VAC 50Hz
3A (NFB US Version)
2A (NFB EU Version)
Max Power Consumption: 120W

THERMAL:

Maximum Ambient Temperature (Ta max) 104°F (40°C)
Exterior Surface Temperature, Steady State: 122°F (50°C)

OPTIONAL ACCESSORIES:

MagFly
MagRF

APPROVALS / RATINGS:

CE | cETLus | IPX4
