Enttec DIN Ethergate Mk2

At A Glance:

• Two-port bi-directional eDMX - DMX/RDM gateway in a compact 4-module DIN-rail form factor.
• With 2U bi-directional Ethernet to DMX conversion with Art-RDM, or 4U Overdrive Mode for DMX500K (compatible fixtures only), PoE or flexible 12-24v. DC input, the DIN Ethergate Mk2 allows for fast deployment of DMX systems and is compatible with a wide range of devices.

ENTTEC’s DIN ETHERGATE MK2 is a robust and reliable installation grade DMX node engineered to take any architectural, commercial or entertainment project to the next level.

With standard 2 universes of bi-directional eDMX to standard DMX512-A conversion and ArtRDM support, the DIN ETHERGATE MK2 is a flexible, cost-effective method to connect physical DMX devices to your network infrastructure.

Unlock enhanced performance with overdrive mode; outputing at higher data transmission rate 500Kbps to control up to 1,024 channels per port. Control total up to 4 universes with a DIN ETHERGATE MK2.

Enjoy effortless daisy-chaining with dual Ethernet ports, one featuring Power over Ethernet (PoE). This provides a flexible and streamlined wiring solution, ideal for scalable installations.

The configuration as well as the firmware updates are managed through the localhost web interface to simplify commissioning from any computer on your network.

Designed for ease, the slim, 4 DIN-module electrically insulated housing supports TS35 DIN and surface mounting, with user friendly pluggable terminal blocks for simple wiring.

Features:

• Two bi-directional DMX ports for standard DMX512-A featuring E1.20 RDM support.
• Overdrive mode outputs at higher data transmission rate 500Kbps (DMX500K) allowing control of up to 2 Universes per port for compatible fixtures1.
• Expandable network with dual Ethernet ports for daisy-chain connections.
• IEEE 802.3af PoE (Power over Ethernet) or DC 12-24v input.
• Support for Art-Net, sACN, ESP and KiNet to DMX conversion.
• HTP/LTP merging support for DMX sources.
• Configurable DMX output refresh rate.
• Intuitive device configuration and updates through the inbuilt web interface.

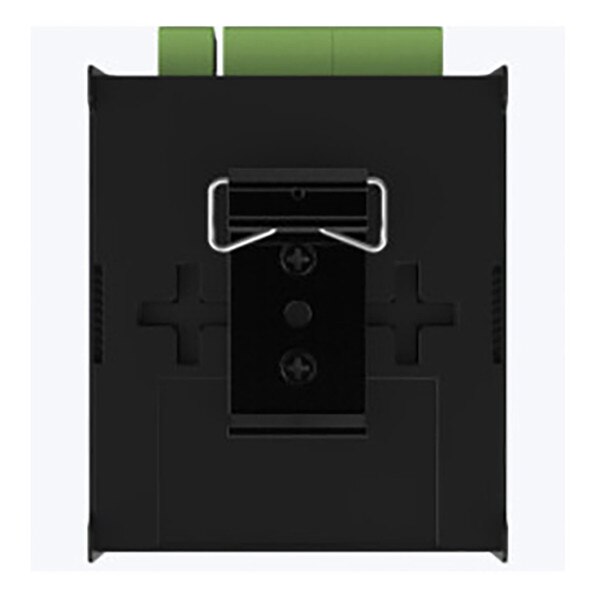

• Surface or TS35 DIN rail mount.
• 10/100 Mbps network speed.
• ‘Current Port Buffer’ allows live DMX values to be viewed.

Specification:

Connectors:

• 2 x LAN port (RJ45)

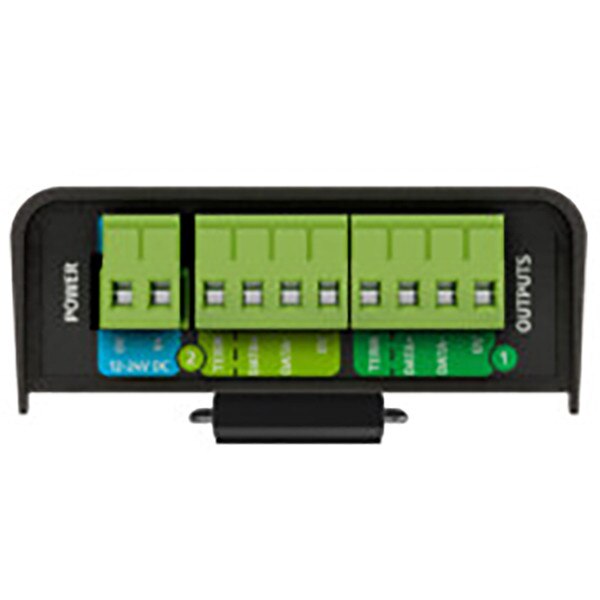

• 2 x Bi-directional DMX (4Pin Phoenix)
• 1 x Power Input (2Pin Phoenix)

IP Rating:

• IP20

LED Indicators:

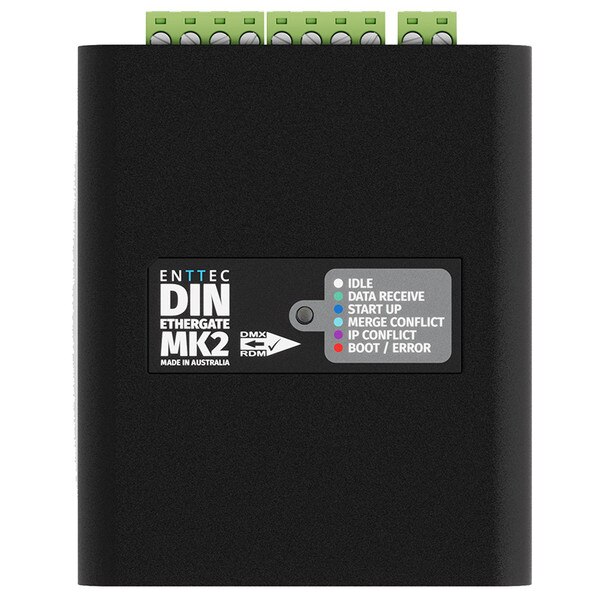

• Forward facing status indicator
• Network link/activity indicators (RJ45 Port)

Input - eDMX Protocols:

• Art-Net (RDM) - KiNet
• sACN - SP

Output - DMX Protocols:

• DMX512-A/RDM (250 Kbps)
• DMX500K (500 Kbps)

DMX & RDM Timings:

• Break time - 300ms
  Mark after Break (MAB) - 15ms

Art-Net Merging:

• 2 Sources

Max. Channels:

• DMX512-A: 1,024ch (2U)
• DMX500K: 2,048ch (4U)

Max. Refresh Rate:

• 44FPS

Network Speed:

• 10/100Base-T

Power over Ethernet:

• IEEE 802.3af

Network Configuration:

• DHCP/Static (default 192.168.0.10)

Firmware Updates:

• Through web interface

DC input Voltage:

• 12-24V DC

Max. Power Draw:

• 7W

Max. Heat Dissipation:

• 7W

Operating Temperature:

• 0°C to 50°C
• 32°F to 122°F

Operating Humidity:

• 5- 95% (non-condensing)

Body Material:

• ABS plastic

Mounting Options:

• Surface mount
• TS35 DIN-Rail mount

Unit Dimensions:

• 100.5 * 72.25 * 34mm

Unit Weight:

• 0.11kg / 0.24lbs

Shipping Dimensions:

• 140 x 140 x 40mm

Shipping Weight:

• 0.16kg / 0.35lbs

Warranty:

• 3-year return to base manufacturer warranty

Box Contents:

• DIN ETHERGATE MK2
• TS35 DIN clip & screws (Power supply is not included)

Safety:

• Do not expose the device to rain or moisture. This unit is intended for indoor use only.
• Do not remove the cover, there are no user serviceable parts inside.
• Never connect DMX GND to an electrical ‘earth’ connection.
• For additional flexibility and increased protection ENTTEC recommends the use of a DMX splitter.
