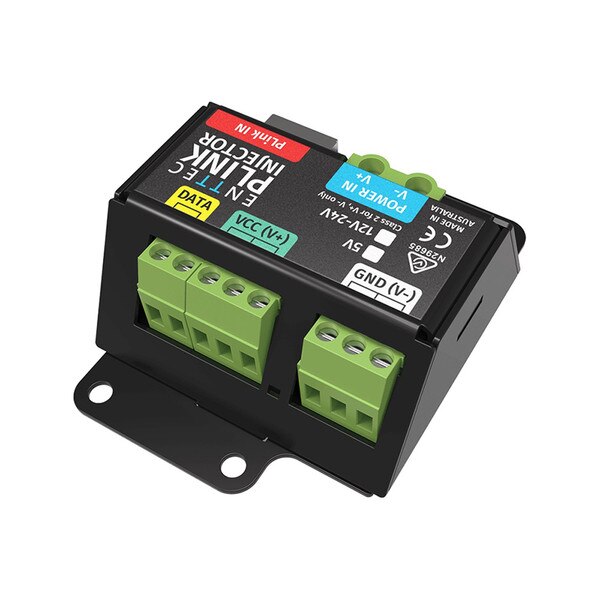

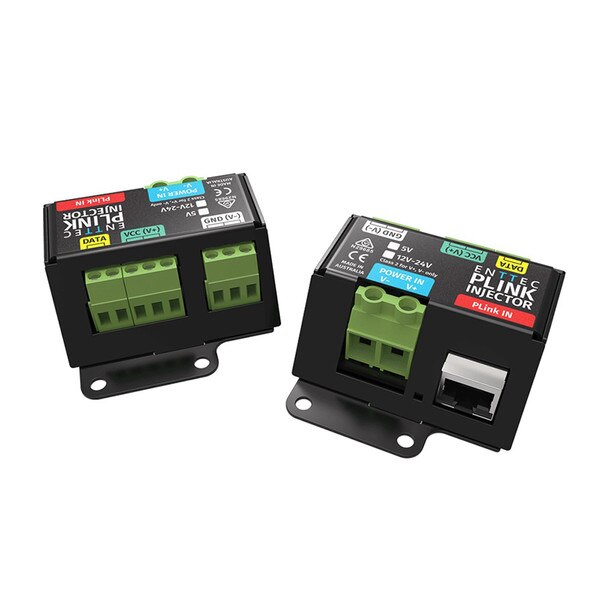

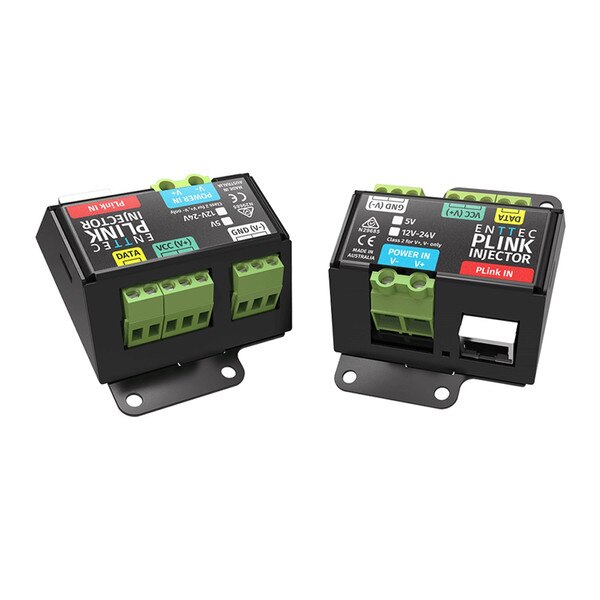

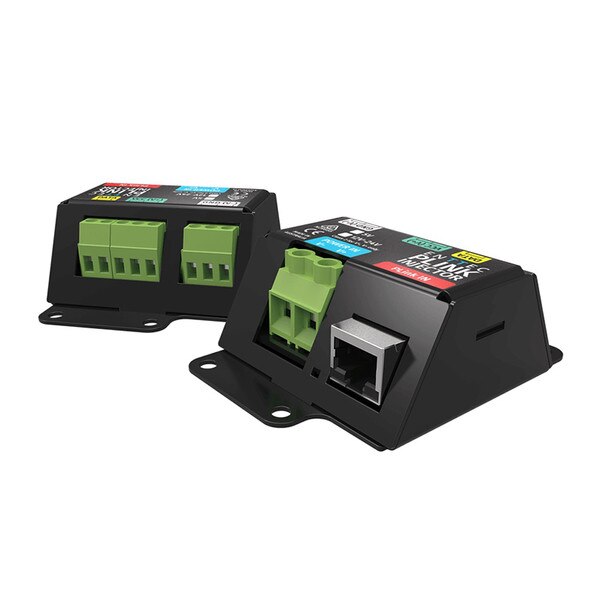

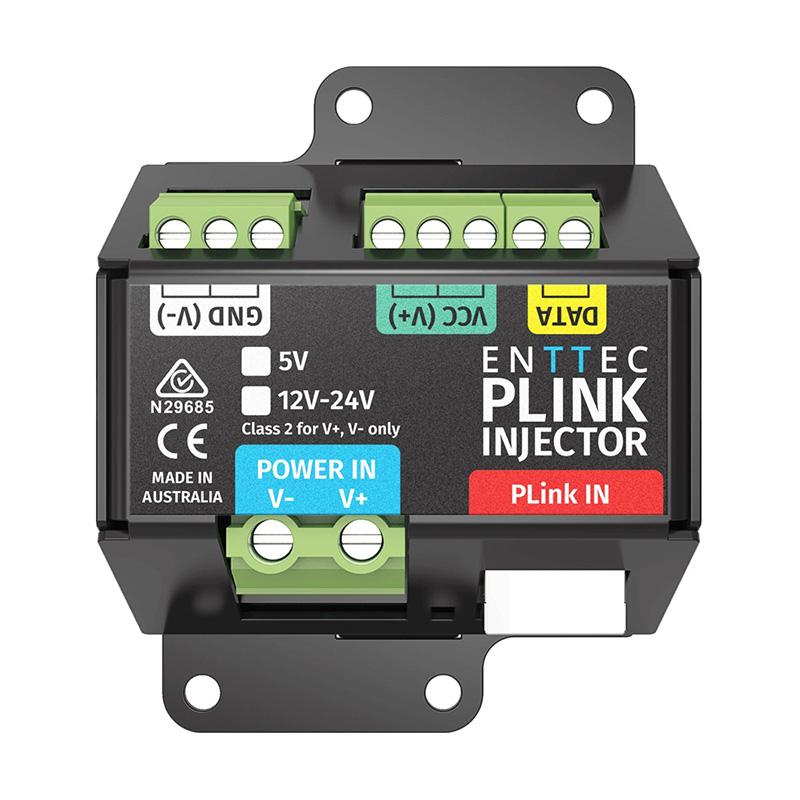

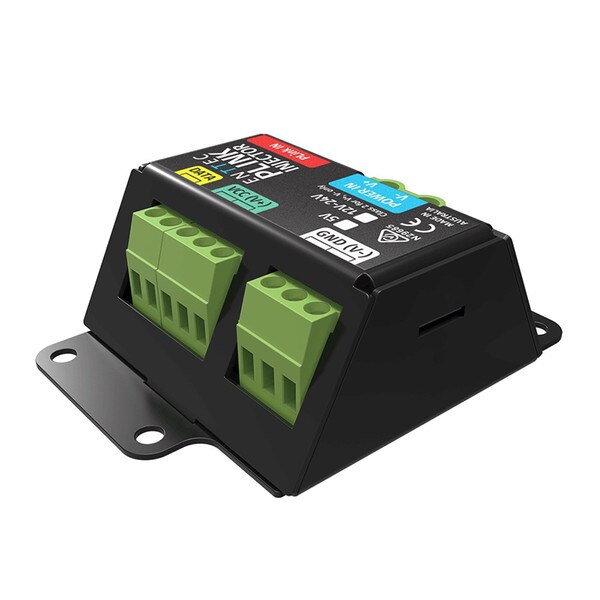

Enttec PLink Injector (12V-24V)

At A Glance:

• Our 2-Universe PLink Injector has been engineered to work alongside your Pixelator to extend your LED pixel layout over long distances.

The ENTTEC PLINK INJECTOR series is purposefully designed as an integral component of the ENTTEC PIXELATOR System, streamlining installation for efficient, cost-effective control of LED pixel strips or pixel dots over extended distances.

The PIXELATOR Series controller generates reliable PLINK data, ensuring data integrity over extended distances of up to 300m using Cat5e/Cat6 cable. Each ENTTEC PLINK INJECTOR then converts PLINK control data to SPI protocols, seamlessly transmitting signals up to 3m to pixel fixtures. This satellite system, coupled with the compact and dependable PLINK INJECTOR is a perfect solution for large and extensive projects.

The IP PLINK INJECTOR featuring DC power input terminal connectors along with SPI Data, VCC, and GND connections is the ideal solution for LED Tape or dots. It's crucial to ensure that your power supply voltage matches the voltage of your pixel fixtures and is integrated with the PLINK controller.

Choose from 5V or 12-24V variants depending on your project. Simply connect and go with no PLINK configuration required.

Features:

• The PLINK INJECTOR is designed to be integrated with PIXELATOR controllers in a PLINK System.
• PLINK data extends up to 300 meters over Cat5e/Cat6 cable from PIXELATOR controllers.
• Each PLINK INJECTOR converts PLINK data to SPI protocol and drives up to 3m distance connecting to an external DC power supply.
• Small, light and easy-to-install design.
• Scalable system architecture suited to large and expansive projects.
• Rising clamp screw terminal connectors for fast, simplistic wiring.
• ABS plastic housing for ideal electrical insulation.

Specification:

Type:

• 12-24V DC

Connectors:

• 1 x PLINK Input (RJ45)
• 1 x Power In (screw terminal)
• 1 x Pixel Output (screw terminal)

IP Rating:

• IP20

LED Indicators:

• Yes

Input Data:

• PLINK data

Output Data:

• SPI. See the ENTTEC website for all supported protocols

Input Voltage:

• 5VDC 12VDC 24VDC

Maximum Throughput Capacity:

• 5 Amp - 25Watt
• 5 Amp - 60 Watt
• 4.16 Amp - 100Watt

Max. Power Draw:

• 3.5W

Cooling Method:

• Convection

Environmental Operating Temperature:

• -10°C to 65°C
• 14°F to 149°F

Environmental Operating Humidity:

• 5- 95% (non-condensing)

Body Material:

• ABS Plastic

Unit Dimensions:

• 83.5 x 65 x 31 mm

Unit Weight:

• 0.059kg / 0.13 lbs

Shipping Dimensions:

• 125 x 75 x 70 mm (4.92 x 2.95 x 2.76”)

Shipping Weight:

• 0.105kg / 0.23 lbs

Shipping Dimensions:

• 260 x 155 x 140mm (10.24*6.10*5.51”)

Shipping Weight:

• 0.84Kg / 1.85lbs

Warranty:

• 3-year return to base manufacturer warranty

Box Contents:

• PLINK INJECTOR

RJ45 Connector - PLINK Data is sent over Cat5/6 cable:

• Pin 1: Data +
• Pin 2: Data -
• Pin 7: Ground

Safety:

• This unit is intended for indoor use only. Do not expose to rain or moisture, doing this will void the warranty.
• Make all the connections before you plug in the mains power.
• Do not remove the cover, there are no serviceable parts inside.
• Never plug this unit into a dimmer pack.
