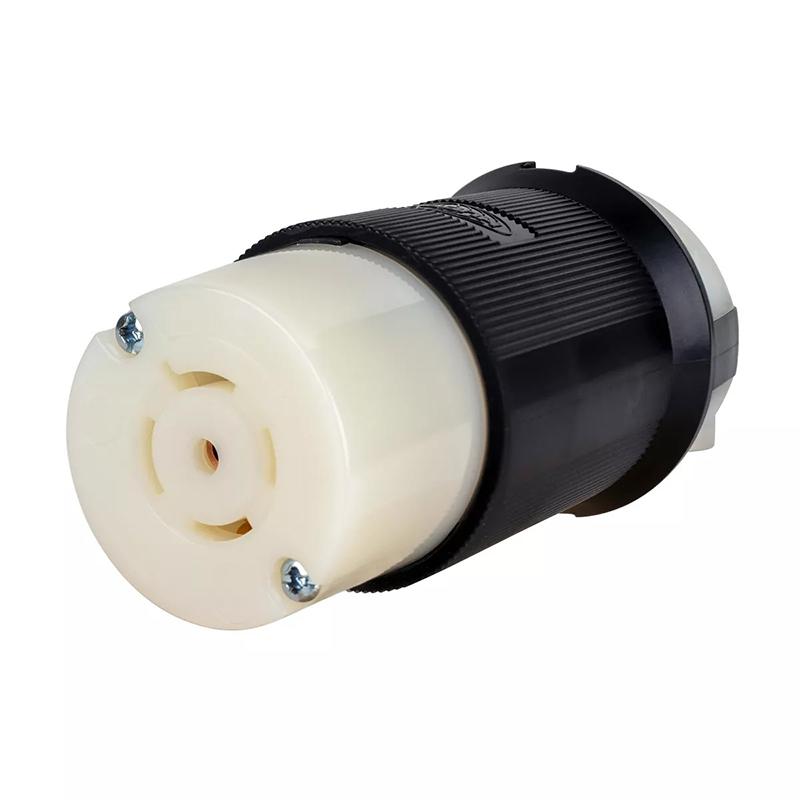

Hubbell EdgeConnect Twist-Lock Female Connector Body, 20A 3-Phase Wye 277/480V AC - Black and White

Locking Devices, EdgeConnect™ Twist-Lock®, Industrial, Female Connector Body, 20A 3-Phase Wye 277/480V AC, L22-20R, Screw-less Terminal, Black and White

EdgeConnect™ Screw-less Termination system, simply insert the wire and press the plunger down. No tools are required. That connection is fool-proof and long lasting, to all but guarantee a high quality result. Any qualified installer regardless of level of training can guarantee a high quality result.

• Faster termination time
• No need for screwdriver and torque wrench
• Spring Termination eliminates strand relaxation
• Funnel shaped wire entry for ease of termination.
• Superior cord grip design protects terminations from excess strain
• EdgeConnect™ Technology, Screw-less Termination

General:

• Catalog Number: HBL2523ST
• Color: Black and White
• Environmental Conditions: IP20 Suitability
• Material: Nylon
• Mounting Type: Screw Mount
• Number Of Poles: 4
• Series: EdgeConnect™ Twist-Lock® Series
• Size: Standard Sized Product
• Style: Locking Devices
• Temperature Rating: Maximum Continuous 75°C, Minimum -40°C (w/o impact)
• Type: Connector
• UPC: 783585719160

Electrical Ratings:

• Current / Amperage Rating: 20 A
• Dielectric Strength: Withstands 3,000V minimum
• Phase: 3-Phase
• Voltage Rating: 3PY 277/ 480 VAC

Conductor Related:

• Number Of Wires: 5

Certifications And Compliance:

• Environmental Conditions: IP20 Suitability
• Nema Rating: L22-20R

Industry Standard(s):

• Listed to UL 498, Fed.Spec. W-C-596, Certified to CSA C22.2 No.42

Operational:

• Temperature Rating: Maximum Continuous 75°C, Minimum -40°C (w/o impact)

Configuration:

• Number Of Poles: 4

Logistics:

• Carton Quantity: 30
