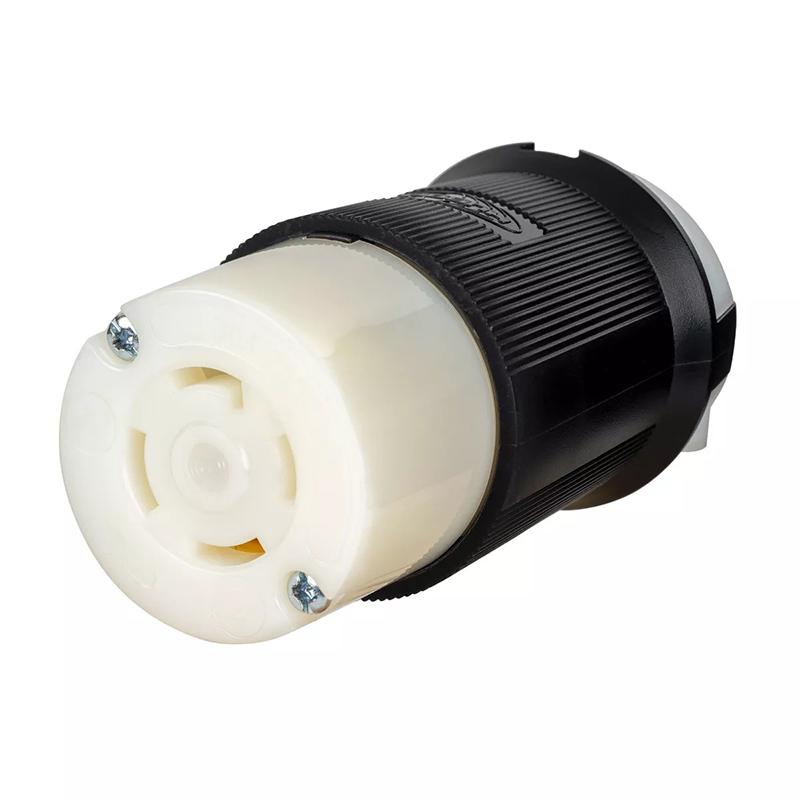

Hubbell EdgeConnect Twist-Lock Female Connector Body, 30A 3-Phase Delta 250V AC, Screwless Terminal - Black and White

Locking Devices, EdgeConnect™ Twist-Lock®, Industrial, Female Connector Body, 30A 3-Phase Delta 250V AC, 3-Pole 4-Wire Grounding, L15-30R, Screw-less Terminal, Black and White

EdgeConnect™ Screwless Termination system, simply insert the wire and press the plunger down. No tools are required. That connection is fool-proof and long lasting, to all but guarantee a high quality result. Any qualified installer regardless of level of training can guarantee a high quality result.

• Faster termination time
• No need for screwdriver and torque wrench
• Spring Termination eliminates strand relaxation
• Funnel shaped wire entry for ease of termination.
• Superior cord grip design protects terminations from excess strain
• EdgeConnect™ Technology, Screw-less Termination

General:

• Catalog Number: HBL2723ST
• Color: Black and White
• Environmental Conditions: IP20 Suitability
• Material: Nylon
• Mounting Type: Screw Mount
• Number Of Poles: 3
• Series: EdgeConnect™ Twist-Lock® Series
• Size: Standard Sized Product
• Style: Locking Devices
• Temperature Rating: Maximum Continuous 75°C, Minimum -40°C (w/o impact)
• Type: Connector
• UPC: 783585719108

Dimensions:

• Size: Standard Sized Product

Electrical Ratings:

• Current / Amperage Rating: 30 A
• Dielectric Strength: Withstands 3,000V minimum
• Phase: 3-Phase
• Voltage Rating: 3P 250 VAC

Conductor Related:

• Number Of Wires: 4

Certifications And Compliance:

• Environmental Conditions: IP20 Suitability
• Nema Rating: L15-30R

Industry Standard(s):

• Listed to UL 498
• Fed.Spec. W-C-596
• Certified to CSA C22.2 No.42

Operational:

• Temperature Rating: Maximum Continuous 75°C, Minimum -40°C (w/o impact)

Configuration:

• Number Of Poles: 3

Logistics:

• Carton Quantity: 30
• Pallet Quantity: 2280
