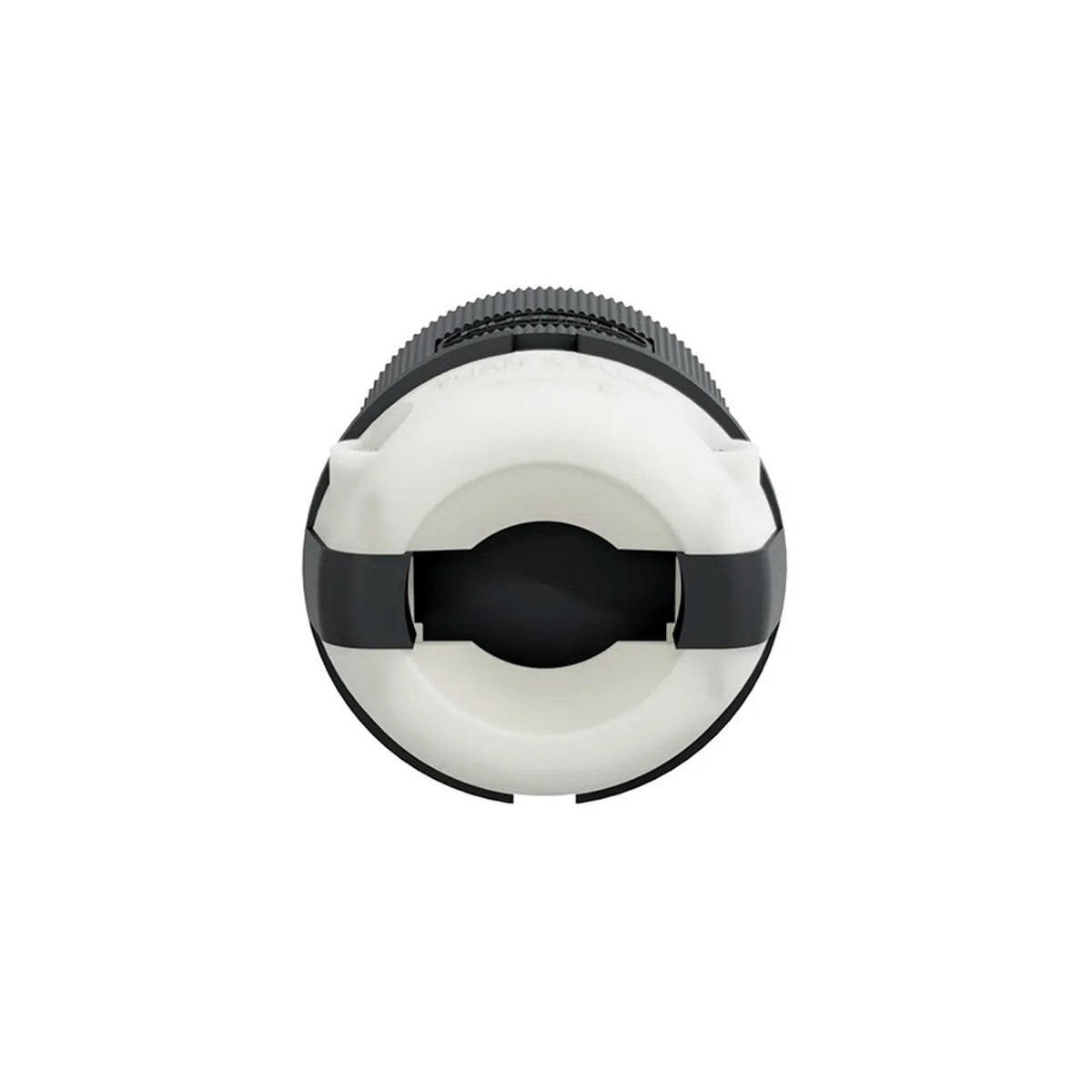

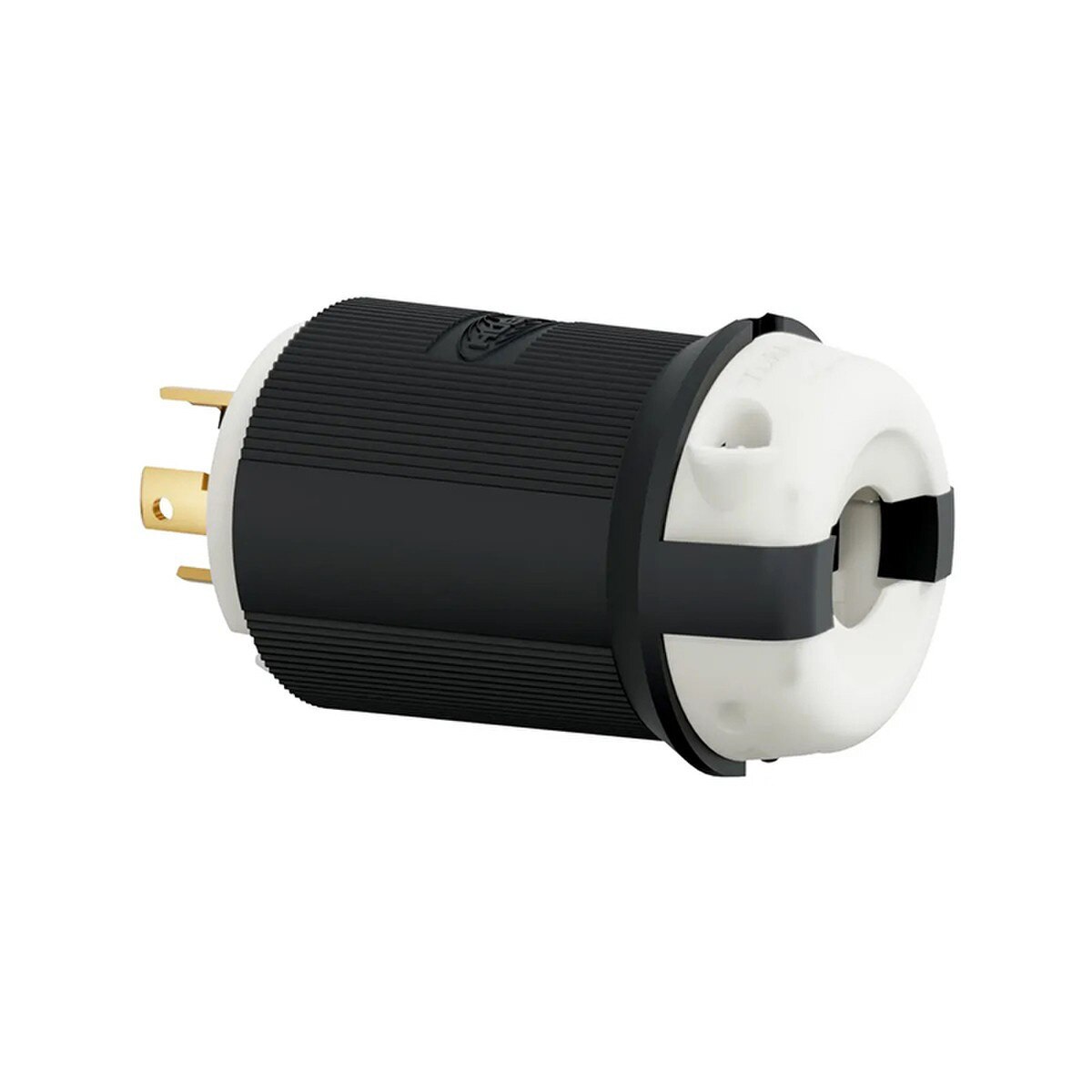

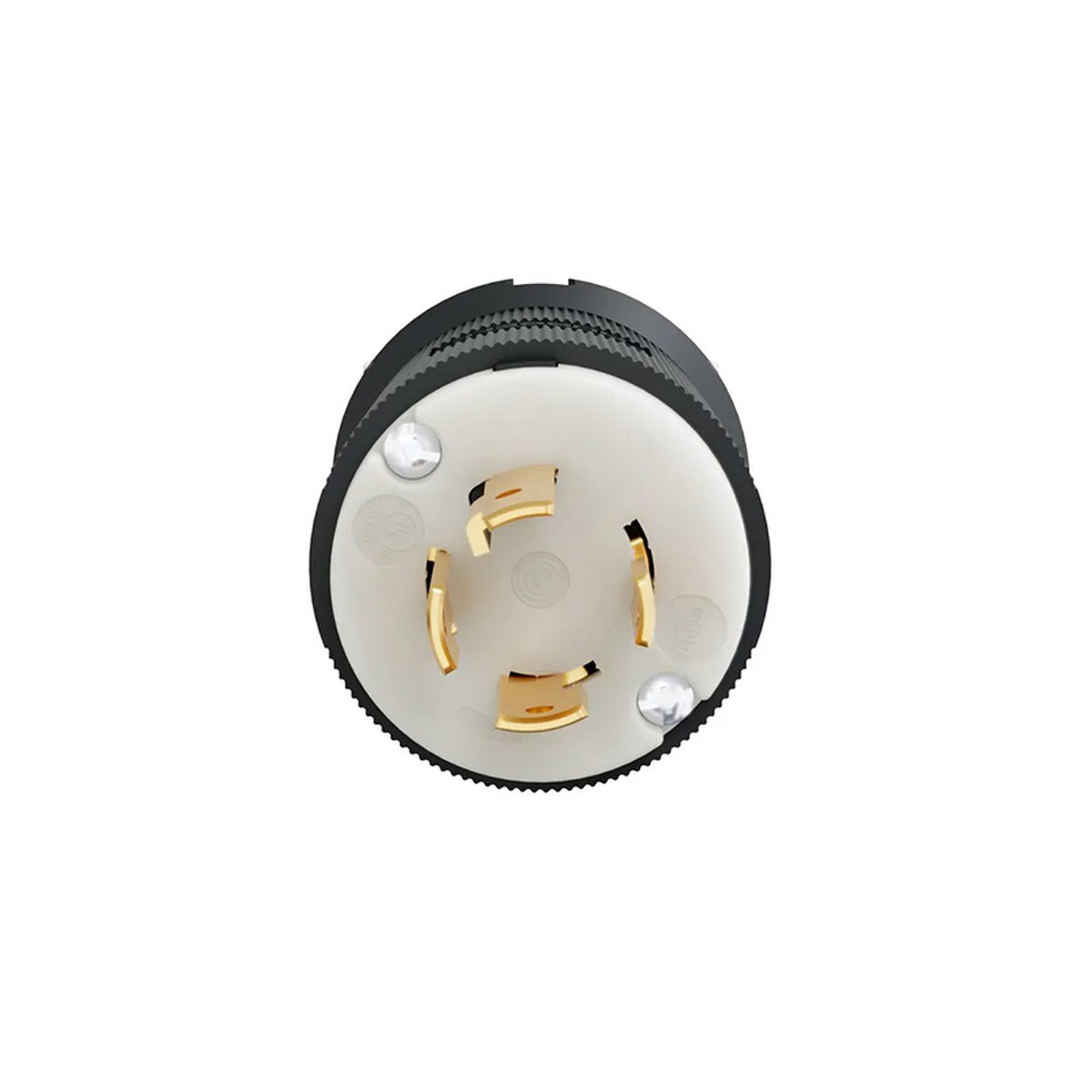

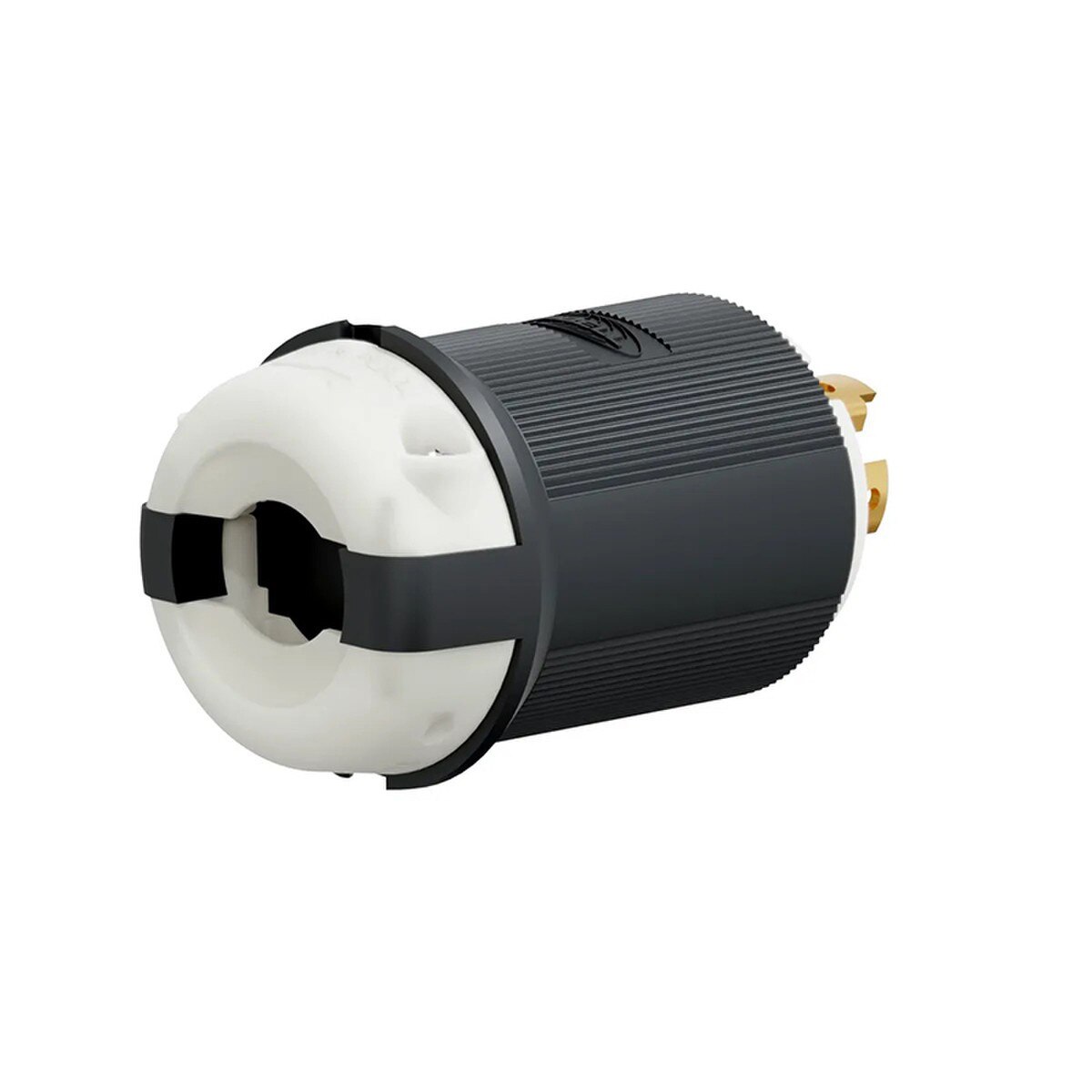

Hubbell EdgeConnect Twist-Lock Plug with Spring Termination, 30A, 3P 480V, L16-30P - Black and White Nylon

Locking Devices, EdgeConnect™ Twist-Lock®, Industrial, Male Insulgrip® Plug, 30A 3-Phase 480V AC, 3-Pole 4-Wire Grounding, L16-30P, Spring Terminal, Black and White Nylon.

• Faster termination time
• No need for screwdriver and torque wrench
• Spring Termination eliminates strand relaxation
• Funnel shaped wire entry for ease of termination
• Superior cord grip design protects terminations from excess strain
• EdgeConnect™ Technology, Screw-less Termination

General:

• Catalog Number: HBL2731ST
• Item Type: Plug
• Number Of Poles: 3
• Series: EdgeConnect™ Twist-Lock® Series
• UPC: 783585681535

Electrical Ratings:

• Current Rating: 30 A
• Voltage Rating: 480 VAC

Conductor Related:

• Number Of Wires: 4

Configuration:

• Number Of Poles: 3

Logistics:

• Carton Quantity: 30
• Pallet Quantity: 2280

Hubbell HBL2731ST Specifications.pdf
Hubbell HBL2731ST Installation Manual.pdf
Hubbell HBL2731ST Sales Drawing.pdf
Hubbell HBL2731ST Warranty.pdf
