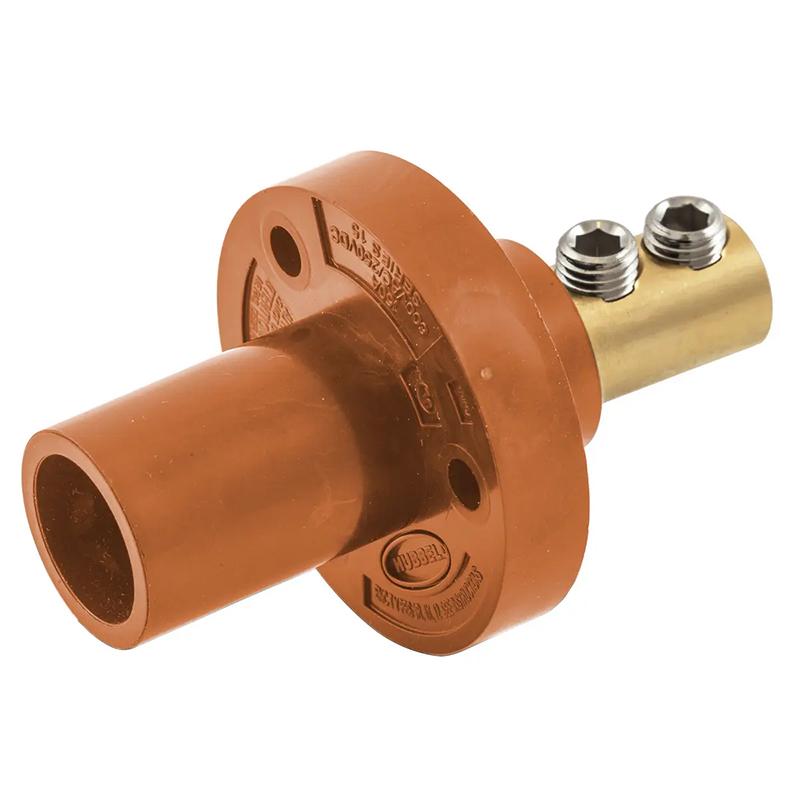

Hubbell HBL15MRO 150A Male Panel Mount - Double Set Screw - Orange

(0)No Reviews yet
$24.21
SKU: Hubbell HBL15MRO

Details

Single Pole Products, Male Inlet, Double Set Screw Termination, 150 Amp Series, Orange


Hubbell Wiring Device–Kellems offers a full line of innovative, high quality, Series 15 and Series 16 single pole plugs, receptacles and accessories for the most demanding environments. Single pole devices are the right choice for supplying temporary electrical power distribution for entertainment, theme parks, carnival equipment, concerts, movie making and numerous other applications requiring temporary power. Single pole devices have been designed with ease of assembly and disassembly in mind, no special tools are required. A high strength non-conductive retaining screw is all that is needed to securely lock the contacts to the insulated sleeve.

Specifications:
General:

  • Application: Extra Heavy Duty Industrial
  • Color: Orange
  • Environmental Conditions: Indoor Dry Unless Protected By Additional Means
  • Item Type: Male Inlet
  • Material: Brass/Thermoplastic
  • Material - Mounting Hardware: Screw Mounting
  • Number Of Poles: 1-Pole
  • OEM Brand Name: Hubbell Wiring Device-Kellems
  • Performance - Electrical - Amperage Ratings: 150A Maximum
  • Performance - Electrical - Voltage Ratings: 600V AC Maximum, 250V DC Maximum
  • Performance - Mechanical - Product Identification: Ratings are a permanent part of device
  • Performance - Mechanical - Terminal Accommodation: #8 to #2 AWG
  • Series: Series 15
  • Style: Double Set Screw Male
  • Type: Receptacle

Electrical Ratings:

  • Amperage Rating: 150 A
  • Connectivity: Double Set Screw
  • Current / Amperage Rating: 150 A
  • Current Rating: 150 A
  • Phase: Single Phase
  • Voltage Rating Description: 600V AC/DC
  • Wattage: 90000

Conductor Related:

  • Number Of Wires: None
  • Wire Size: #4 AWG Type SC/PPC Wire

Certifications and Compliance:

  • Industry Standards: National Electric Code (NEC), ANSI/NFPA 70
  • UL and cUL Listed
  • UL Enclosure Types 3R, 4X, 12
  • Nema Rating: Non-NEMA


Wiring HBL15MR Specification Sheet.pdf
WDK_HBL15MR_DRAWING.pdf
