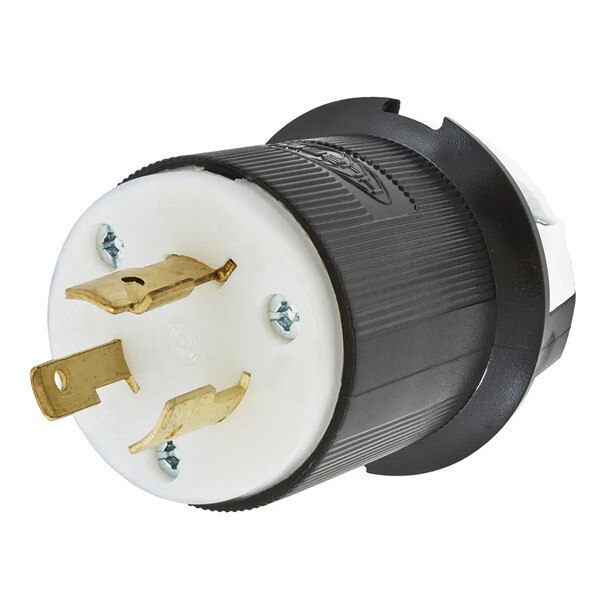

Hubbell HBL2351 L9-20 MALE PLUG-BLACK & WHITE

(0)No Reviews yet
$100.00
SKU: Hubbell HBL2351

Details

Locking Devices, Twist-Lock®, Industrial, Male Insulgrip® Plug, 20A 600V AC, 2-Pole3-Wire Grounding, NEMA L9-20P, Screw Terminal, Black and White Nylon.


Features:

  • Superior cord grip design protects terminations from excess strain.
  • Clear, funnel shaped wire entry for ease of termination.
  • Integral dust shield protects wiring chamber from dust or contaminants.

General:

  • Application: Extra Heavy Duty Industrial
  • Color: Black, White
  • Cord Range: 0.360"-0.930" (9-24)
  • Environmental Conditions: Indoor Dry Unless Protected By Additional Means
  • Item Type: 20A Male Insulgrip® Plug
  • Material: Nylon
  • Material - Mounting Hardware: Cord Mounted
  • Number Of Poles: 2-Pole
  • OEM Brand Name: Hubbell Wiring Device-Kellems
  • Operating Temperature: Maximum continuous 75°C and minimum -40°C without Impact

Performance:

  • Electrical - Current Interrupting - Certified for current interrupting at full rated current
  • Electrical - Dielectric Voltage - Withstands 2,000V minimum
  • Environmental - Flammability - HB or better per UL94/CSA 22.2 No.0.17
  • Environmental - Moisture Resistance - IP20 Suitability
  • Environmental - Operating Temperatures - Maximum Continuous 75°C, Minimum -40°C (w/o impact)
  • Mechanical - Terminal Accommodation - #16 AWG - #8 AWG stranded copper wire only.
  • Mechanical - Terminal Identification - Terminals identified in accordance with UL 498
  • Type: Plugs
  • UPC: 783585038025

Electrical Ratings:

  • Amperage Rating: 20 A
  • Connectivity: Pressure Terminal Screws
  • Current / Amperage Rating: 20 A
  • Current Rating: 20 A
  • Dielectric Strength: Withstands 2,000V minimum
  • Phase: Single Phase
  • Voltage Rating: 600 VAC
  • Voltage Rating Description: 600 VAC

Conductor Related:

  • Cable Range: 0.360 - 0.930 in
  • Cord Type: All Listed Portables
  • Number Of Wires: 3-Wire
  • Wire Size: #16 AWG to #8 AWG

Certifications and Compliance:

  • Industry Standard(s)
  • Certified to CSA C22.2 No.42
  • Fed.Spec. W-C-596
  • Listed to UL 498
  • Nema Rating    L9-20P

Logistics:

  • Carton Quantity: 30


WIRING_HBL2351_spec.pdf
