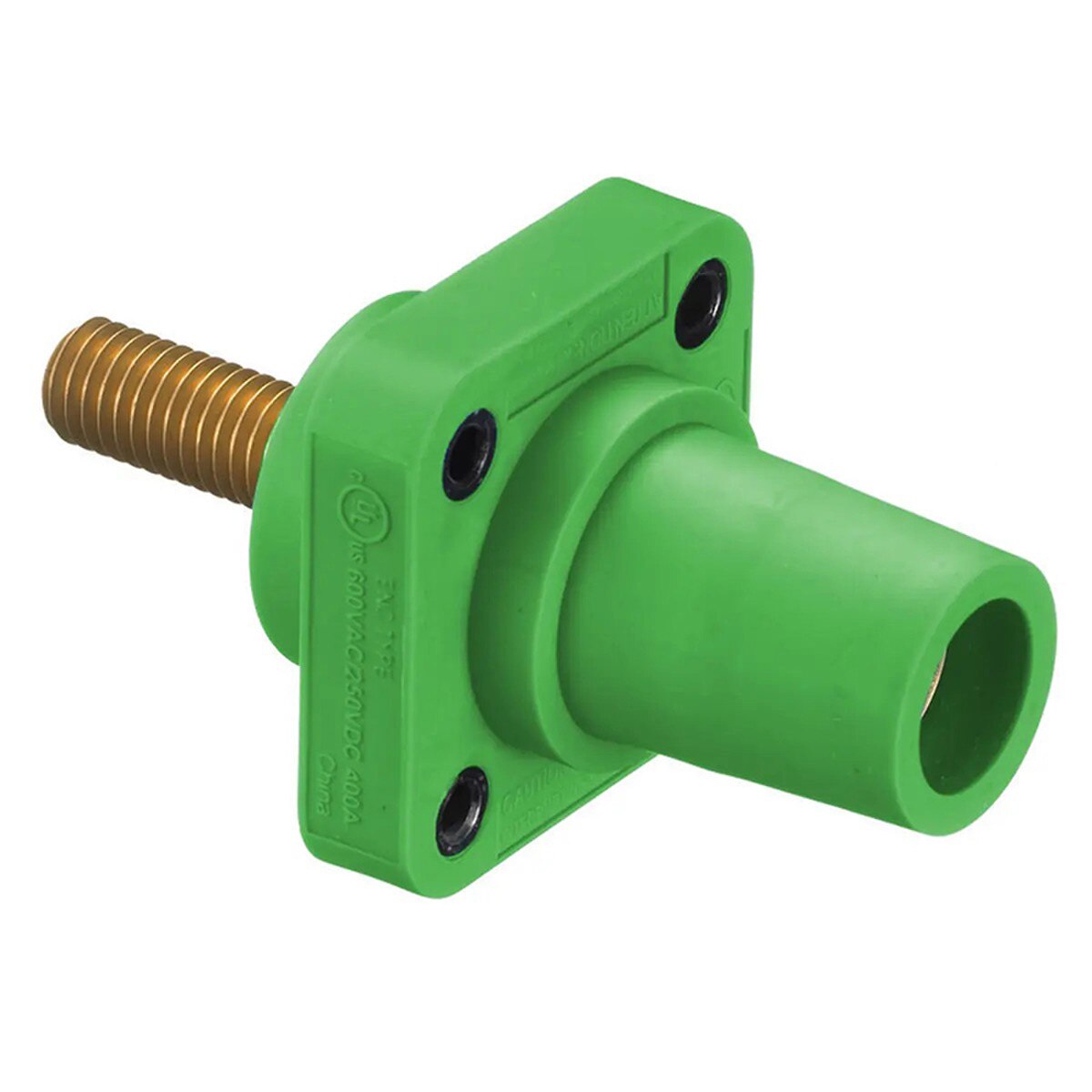

Hubbell Heavy Duty Single Pole Female Receptacle, 300/400A 600V AC/DC, Single Conductor, Threaded Mounting Holes

Heavy Duty Products, Single Pole Devices, Industrial Grade, Female Receptacle, 300/400A 600V AC/DC, Single Conductor, Threaded Mounting Holes, Stud Termination, Green

Hubbell Wiring Device–Kellems offers a full line of innovative, high quality, Series 15 and Series 16 single pole plugs, receptacles and accessories for the most demanding environments. Single pole devices are the right choice for supplying temporary electrical power distribution for entertainment, theme parks, carnival equipment, concerts, movie making and numerous other applications requiring temporary power. Single pole devices have been designed with ease of assembly and disassembly in mind, no special tools are required. A high strength non-conductive retaining screw is all that is needed to securely lock the contacts to the insulated sleeve.

• Industrial Grade
• Female Receptacle
• 300/400A 600V AC/DC
• Standard

General:

• Application: High Ampacity Connections
• Catalog Number: HBLFRSCGN
• Color: Green
• EU RoHS Indicator: Yes
• Material: Elastomer / Elastomeric
• Material - Mounting Hardware: Threaded Thru-Hole
• Number Of Poles: 1-Pole
• OEM Brand Name: Hubbell Wiring Device-Kellems
• Style: Stud Type, Threaded Hole Mounting, Female
• Type: Receptacle
• UPC: 783585093628

Specifications:

• Base Compound - Thermoplastic Elastomer
• Contact Material - Brass
• Mounting Hole - 4x Ø .20"
• Retaining Screw Material - Nylon
• Termination - 1/2-13 UNC-2A Threaded Stud

Electrical Ratings:

• Amperage Rating: 400 A
• Connectivity: Stud Type
• Phase: Single Phase
• Wattage: 240000

Conductor Related:

• Number Of Wires: 1-Wire
• Wire Size: #4 AWG to #4/0 AWG

Certifications And Compliance:

• EU RoHS Indicator: Yes
• Nema Rating: Non-NEMA

Industry Standard(s):

• National Electric Code (NEC), ANSI/NFPA 70
• UL and cUL Listed
• UL Enclosure Types 3R, 4X, 12

Configuration:

• Number Of Poles: 1-Pole

Logistics:

• Carton Quantity: 25
