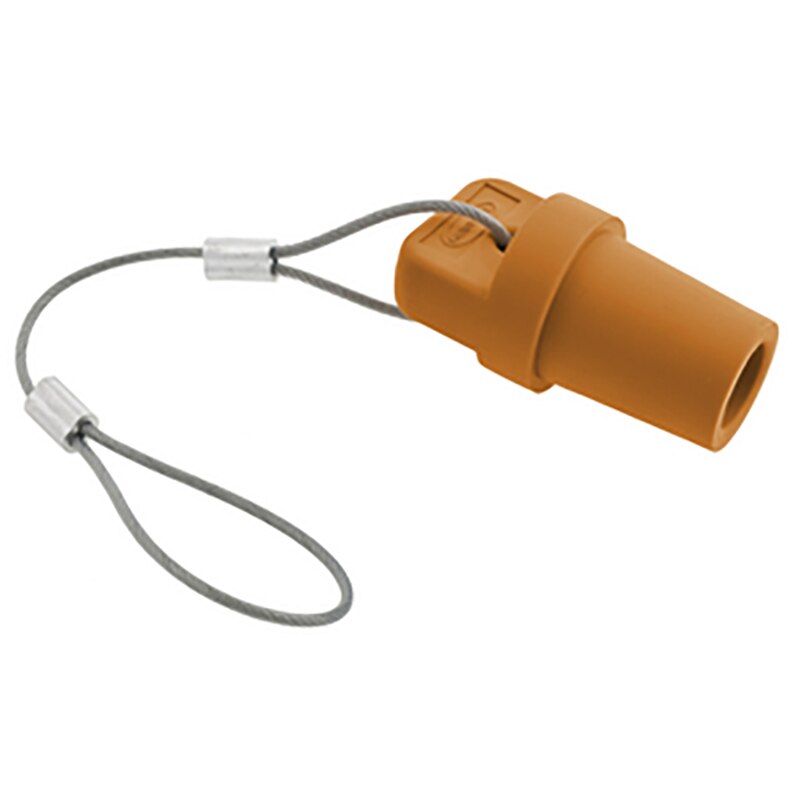

Hubbell Male Protective Cap - Orange

Heavy Duty Single Pole Industrial Grade Male Device Cap, for 300/400A 600V AC/DC, Single Conductor

Hubbell Wiring Device–Kellems offers a full line of innovative, high quality, Series 15 and Series 16 single pole plugs, receptacles and accessories for the most demanding environments. Single pole devices are the right choice for supplying temporary electrical power distribution for entertainment, theme parks, carnival equipment, concerts, movie making and numerous other applications requiring temporary power. Single pole devices have been designed with ease of assembly and disassembly in mind, no special tools are required. A high strength non-conductive retaining screw is all that is needed to securely lock the contacts to the insulated sleeve.

General:

• Color: Orange
• EU RoHS Indicator: No
• Series: Series 16
• Style: Male
• Type: Protective Cap
• UPC: 783585112916

Electrical Ratings:

• Amperage Rating: 400 A
• Current / Amperage Rating: 400 A
• Voltage Rating Description: 600V AC/DC

Industry Standard(s):

• National Electric Code (NEC), ANSI/NFPA 70
• UL and cUL Listed
• UL Enclosure Types 3R, 4X, 12

Logistics:

• Carton Quantity: 10

Hubbell HBLMCAPO Installation Manual.pdf
Hubbell HBLMCAPO Specifications.pdf
Hubbell HBLMCAPO Dimensional Drawing.pdf
Hubbell HBLMCAPO Warranty.pdf
