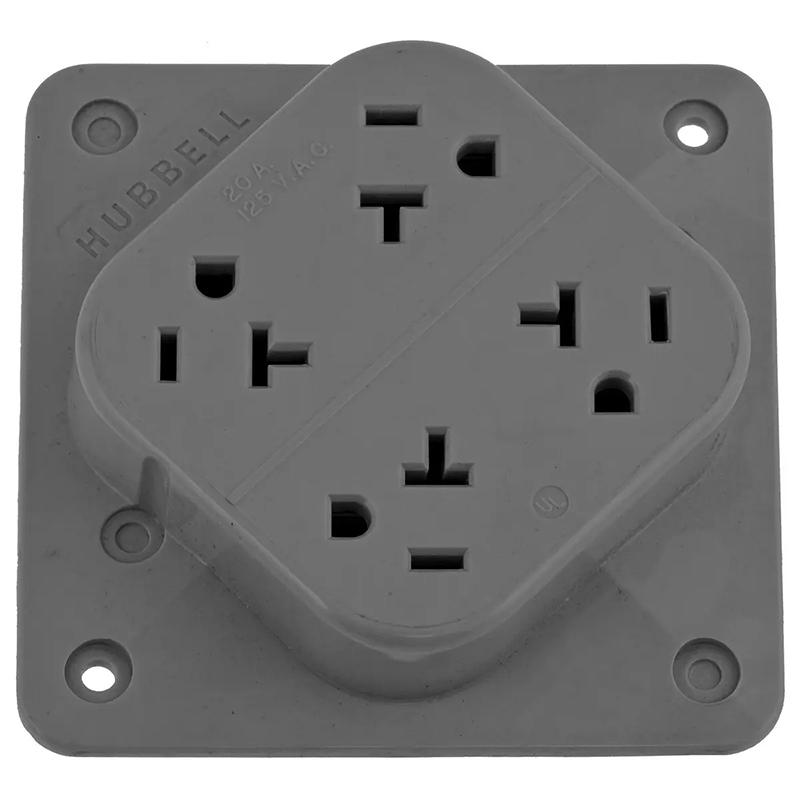

Hubbell Straight Blade Receptacles, 4-Plex, 2-Pole 3-Wire Grounding, 20A 125V, 5- 20R - Gray

(0)No Reviews yet
$32.19
SKU: Hubbell HBL420GY

Details

Straight Blade Devices, Receptacles, 4-Plex, Commercial/Industrial Grade, 2-Pole 3-Wire Grounding, 20A 125V, 5- 20R, Gray, Single Pack


  • Anchor hole and loop feature secures solid wire for fast, easy terminations
  • Triple wipe contacts
  • Easily accessible break-off tabs for split wiring
  • Three conductors energize all four outlets
  • 4 Receptacles in one

General:

  • Application: Industrial
  • Color: Gray
  • Environmental Conditions: Indoor Dry Unless Protected By Additional Means
  • Horsepower - Maximum: 1
  • Item Type: 4-PLEX
  • Material: Polycarbonate
  • Material - Mounting Hardware: Screw Mounting
  • Number Of Poles: 2-Pole
  • OEM Brand Name: Hubbell Wiring Device-Kellems
  • Operating Temperature: Maximum continuous 75°C and minimum -40°C without Impact
  • Series: 4-Outlet Receptacle
  • UPC: 783585014531

Performance:

  • Electrical: Current Interrupting: Capable of withstanding a fault level of 1000A, per UL498
  • Dielectric Voltage: Withstands 2,000V minimum
  • Mechanical: Product Identification: Ratings are a permanent part of the device
  • Terminal Accommodation: #12 AWG stranded or solid copper conductor only
  • Terminal Identification: Terminals identified in accordance with UL 498 and CSA
  • Environmental: Flammability: UL 94 V-2
  • Operating Temperatures: Maximum continuous 75°C ,minimum -40°C (w/o impact)

Dimensions:

  • Dimensions: 4.30 in x 0.92 in x 4.30 in
  • Display Size: Standard Sized Product
  • Height: 4.30 in
  • Length: 4.30 in
  • Weight: 0.4 lb
  • Width: 0.92 in

Electrical Ratings:

  • Amperage Rating: 20 A
  • Connectivity: Screw Terminals
  • Current / Amperage Rating: 20 A
  • Current Rating: 20 A
  • Dielectric Strength: Withstands 2,000V minimum
  • Phase: Single Phase
  • Voltage Rating: 125 V
  • Voltage Rating Description: 125 V
  • Wattage: 2500 W

Conductor Related:

  • Number Of Wires: 3-Wire
  • Wire Size: #12 AWG

Certifications and Compliance:

  • Certified to CSA 22.2, No. 42 File 285
  • Listed to UL Standard 498 File E2186
  • NEMA® WD-6 Compliant
  • Nema Rating: 5-20R

Logistics:

  • Carton Quantity: 5


Hubbell HBL420GY Instruction Manual.pdf
Hubbell HBL420GY Specifications.pdf
Hubbell HBL420GY Dimensional Drawing.pdf
Hubbell HBL420GY Warranty.pdf
