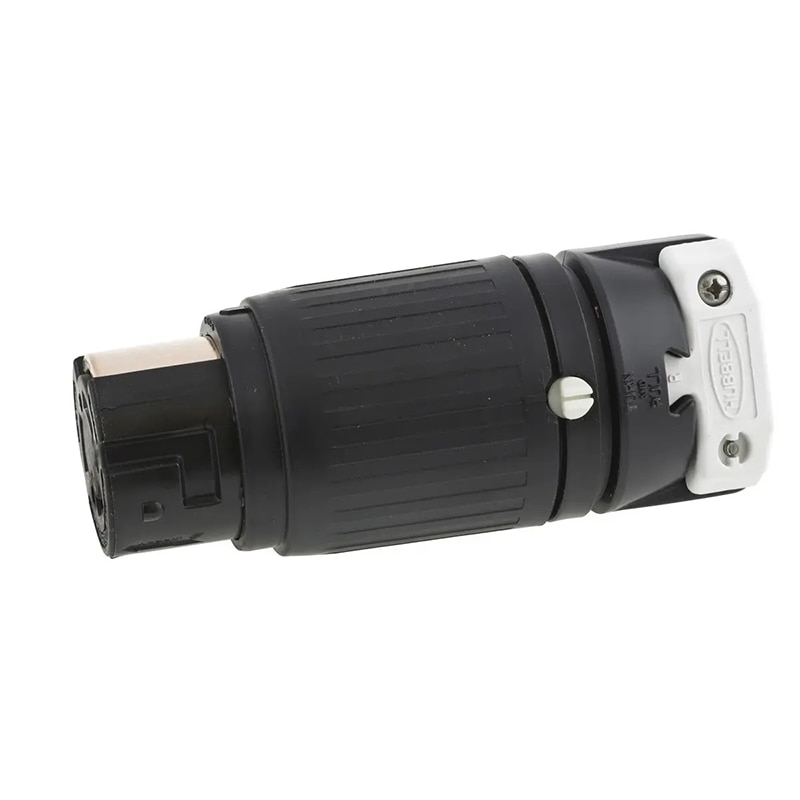

Hubbell Twist-Lock Industrial, Female Insulgrip® Connector Body, 50A 250V DC/600V AC, 3-Pole 4-Wire Grounding, Non-NEMA

Locking Devices, Twist-Lock®, Industrial, Female Insulgrip® Connector Body, 50A 250V DC/600V AC, 3-Pole 4-Wire Grounding, Non-NEMA, Screw Terminal, Nylon housing thermoplastic polyester interior, Black

Hubbell’s 50 amp Twist-Lock® devices feature a heavy duty design built for heavy duty applications. These Hubbell 50 amp Twist-Lock plugs and connector bodies are built to go where you need power, even in some of the harshest environments. On the outside, 50 amp plugs and connectors are made of super tough nylon for better impact resistance. On the plug, the stainless steel shroud not only provides protection and durability, but safety as well. That’s because the rigid construction restricts distortion, thus minimizing the possibility of mating incorrect devices. On the inside are the kinds of features that separate Hubbell from all the rest. The cord grip has been designed with offset gripping jaws to securely hold the conductors – not just the cord jacket. Hubbell’s box terminals speed wiring and provide a superior termination. The plug’s thermoplastic polyester interior provides excellent heat resistance without compromising strength. In all, it’s the combination of function and performance that Hubbell demands of all its products. That is why we will never add a feature that compromises performance.

• Box terminal with hex socket threaded slug, permits high clamping pressure on conductors without damaging strands
• Heavy duty two-piece external cord clamp provides maximum strain relief
• Box terminal with hex socket threaded slug, permits high clamping pressure on conductors without damaging strands
• Thermoplastic polyester interior provides heat resistance and impact strength
• Oversized contacts minimize operating temperature
• Standard Product

General:

• Application: Heavy Duty Industrial
• Catalog Number: HBL7764C
• Color: Black, White
• Cord Range: .830"-1.250"(21.08-31.75)
• EU RoHS Indicator: No
• Material: Nylon
• Material - Mounting Hardware: Cord Mounted
• Number Of Poles: 3-Pole
• OEM Brand Name: Hubbell Wiring Device-Kellems
• Operating Temperature: Maximum continuous 75°C and minimum -40°C without Impact
• Type: Connector Body
• UPC: 783585237848

Specifications:

• Contacts - Brass
• Cord Grip - Polyester
• Housing - Nylon
• Terminal Retainer - Thermoplastic polyester
• Terminal Screws - Stainless Steel

Dimensions:

• Dimensions: 2.56 in x 2.56 in x 6.50 in
• Height: 6.5 in
• Length: 2.56 in
• Weight: 1.05 lb
• Width: 2.56 in

Electrical Ratings:

• Amperage Rating: 50 A
• Connectivity: Pressure Terminal Screws
• Dielectric Strength: Withstands 2,000V minimum
• Voltage Rating: 250 VDC/600 VAC

Conductor Related:

• Cable Range: 0.830 - 1.250 in
• Number Of Wires: 4-Wire
• Wire Size: #8 AWG to #4 AWG

Certifications And Compliance:

• EU RoHS Indicator: No

Industry Standard(s):

• Certified to CSA C22.2 No.42
• Listed to UL 498

Operational:

• Operating Temperature: Maximum continuous 75°C and minimum -40°C without Impact

Configuration:

• Number Of Poles: 3-Pole

Logistics:

• Carton Quantity: 10
• Pallet Quantity: 1360
