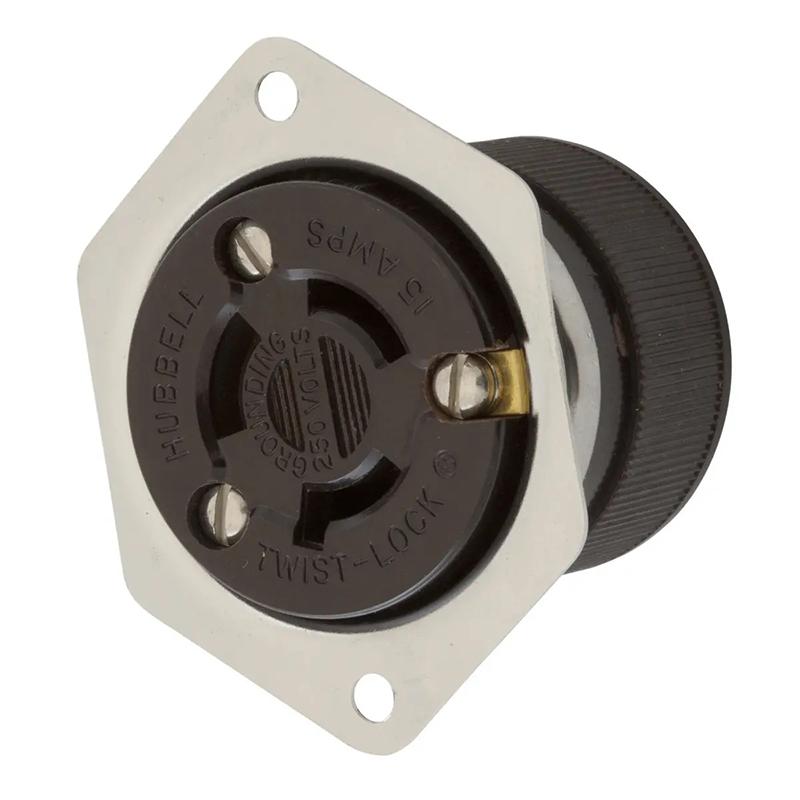

Hubbell Twist-Lock Industrial, Flanged Receptacle, 15A 250V, 2-Pole 3-Wire Grounding, L6-15R, Screw Terminal - White

Locking Devices, Twist-Lock®, Industrial, Flanged Receptacle, 15A 250V, 2-Pole 3-Wire Grounding, NEMA L6-15R, Screw Terminal, Stainless steel casing, Black/Stainless.

• Heat resistant thermoset construction
• Stainless steel casing
• #8-32 terminal screws
• Mounting screws included
• Metallic Flange

General:

• Catalog Number: HBL4585
• Color: EU RoHS Indicator: Yes
• Material: Stainless Steel
• Material - Mounting Hardware: Screw Mounting
• Number Of Poles: 2-Pole
• OEM Brand Name: Hubbell Wiring Device-Kellems
• Operating Temperature: Maximum continuous 75°C and minimum -40°C without Impact
• Type: Flanged Receptacle
• UPC: 783585236698

Specifications:

• Blades - Brass
• Flange - Stainless steel
• Mounting Screw - Nickel plated brass
• Terminal Screws - Brass

Dimensions:

• Dimensions: 2.31 in x 1.75 in x 1.36 in
• Height: 1.36 in
• Length: 2.31 in
• Weight: 0.15 lb
• Width: 1.75 in

Electrical Ratings:

• Amperage Rating: 15 A
• Connectivity: Screw Terminals
• Dielectric Strength: Withstands 2,000V minimum
• Phase: Single Phase
• Voltage Rating: 250 V

Conductor Related:

• Number Of Wires: 3-Wire
• Wire Size: #18 AWG to #10 AWG

Certifications And Compliance:

• EU RoHS Indicator: Yes
• Nema Rating: L6-15R

Industry Standard(s):

• Certified to CSA C22.2 No.42
• Fed. Spec. W-C-596
• Listed to UL 498

Operational:

• Operating Temperature: Maximum continuous 75°C and minimum -40°C without Impact

Configuration:

• Number Of Poles: 2-Pole

Logistics:

• Carton Quantity: 10
