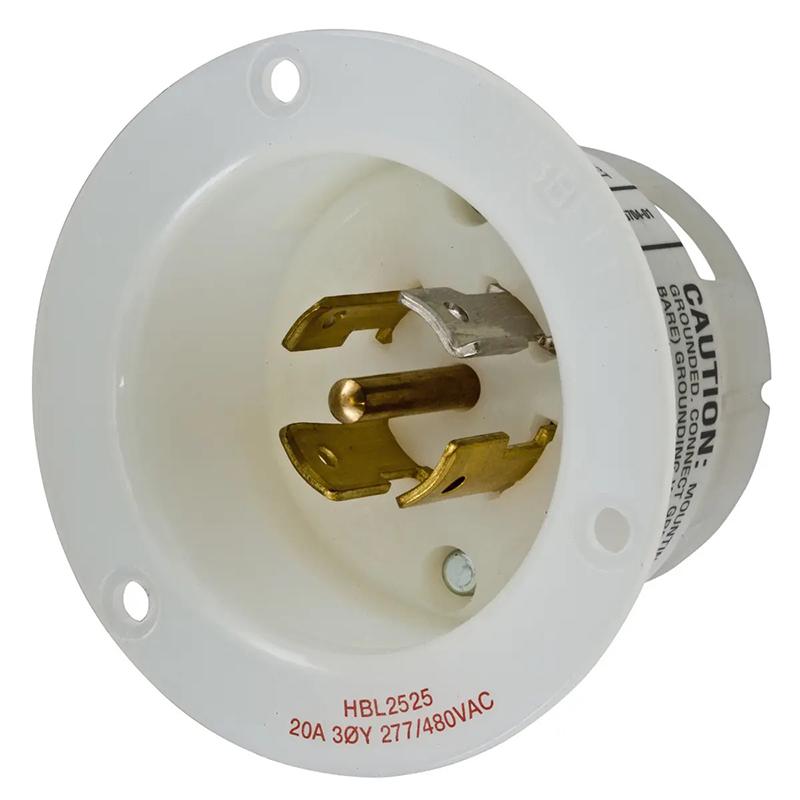

Hubbell Twist-Lock Industrial Flanged Inlet, 20A 3-Phase Wye 277/480V AC, 4-Pole 5-Wire Grounding, L22-20P, Screw Terminal - White

Locking Devices, Twist-Lock®, Industrial, Insulgrip® Flanged Inlet, 20A 3-Phase Wye 277/480V AC, 4-Pole 5-Wire Grounding, NEMA L22-20P, Screw Terminal, Nylon casing, Back wired, White

• Back wired terminations for ease of installation
• #10-32 Multiple drive terminal screws (Slotted, Phillips, Robertson)
• Mounting screws included
• Standard Product

General:

• Catalog Number: HBL2525
• Color: White
• EU RoHS Indicator: Yes
• Material: Nylon
• Material - Mounting Hardware: Screw Mounting
• Number Of Poles: 4-Pole
• OEM Brand Name: Hubbell Wiring Device-Kellems
• Operating Temperature: Maximum continuous 75°C and minimum -40°C without Impact
• Type: Flanged Inlet
• UPC: 783585038629

Specifications:

• Assembly Screws - Steel - nickel plated
• Blades - Brass
• Housing - Nylon
• Mounting Screw - Nickel plated brass
• Terminal Clamp - Cold rolled steel – nickel plated
• Terminal Retainer - Clear polycarbonate
• Terminal Screws - #10-32 Brass (Phillips / Slotted / Robertson)

Dimensions:

• Dimensions: 3.06 in x 3.06 in x 2.27 in
• Height: 2.27 in
• Length: 3.06 in
• Weight: 0.25 lb
• Width: 3.06 in

Electrical Ratings:

• Amperage Rating: 20 A
• Connectivity: Back Wired Screw Terminals
• Dielectric Strength: Withstands 2,000V minimum
• Phase: 3 Phase WYE
• Voltage Rating: 3 Phase WYE 277/480 VAC

Conductor Related:

• Number Of Wires: 5-Wire
• Wire Size: #16 AWG to #8 AWG

Certifications And Compliance:

• EU RoHS Indicator: Yes
• Nema Rating: L22-20P

Industry Standard(s):

• Certified to CSA C22.2 No.42
• Fed.Spec. W-C-596
• Listed to UL 498

Operational:

• Operating Temperature: Maximum continuous 75°C and minimum -40°C without Impact

Configuration:

• Number Of Poles: 4-Pole

Logistics:

• Carton Quantity: 10
