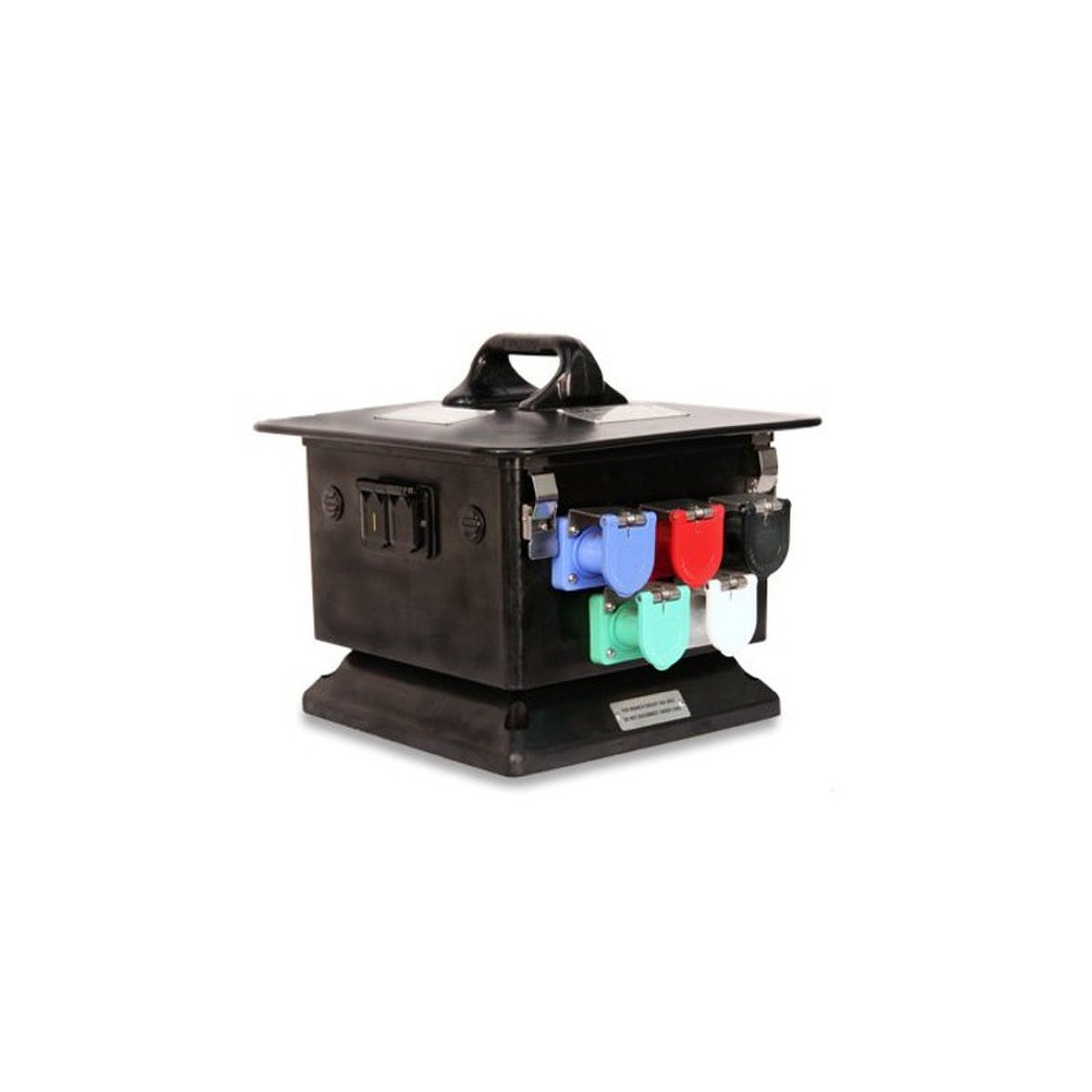

Lex 100A-250A Rubber Enclosure - Panel Mount Cam Inlet Reverse Ground

(0)No Reviews yet
$4,381.02
SKU: Lex DB250LP-AW-S3-RG

Details

Provides a main disconnect and over current protection for portable power distribution systems. The current trip setting is adjustable, allowing it to protect a variety of systems with different cable sizes.

Features:
  • Adjustable trip setting allows the box to protect a variety of systems with different cable sizes
  • Adjustable electronic circuit breaker will not nuisance trip due to high ambient temperatures
  • Heavy-duty molded rubber enclosure is fully insulated and resistant to shock, impact and corrosion
  • Circuit breakers are mounted under hinged lid for enhanced protection
  • Stackable and compact for easy storage and convenient portability
  • Elevated base keeps receptacles above ground level
  • Reverse Ground
Specifications:
  • Rating: 100-250 Amp, 3 Phase (H,H,H,N,G), 4 Pole, 5 Wire, 120/208Y VAC
  • Environmental Rating: TYPE 3R Rainproof
  • Input: (1) set of (5) 16 Series Cam-type panel mount inlets
  • Output: (1) set of (5) 16 Series Cam-type panel mount outlets, protected by an adjustable circuit breaker
  • (1) NEMA 5-20, 20 Amp, 2 Pole, 3 Wire,120/208Y VAC duplex receptacle
  • Over current Protection: (1) 100-250 Amp adjustable electronic circuit breaker
  • Feed Thru: None
  • (1) 20 Amp, Single Pole circuit breaker
  • Overall Dimensions: 14.25" L x 14.25" W x 14.15" H
  • Weight: 38lbs
