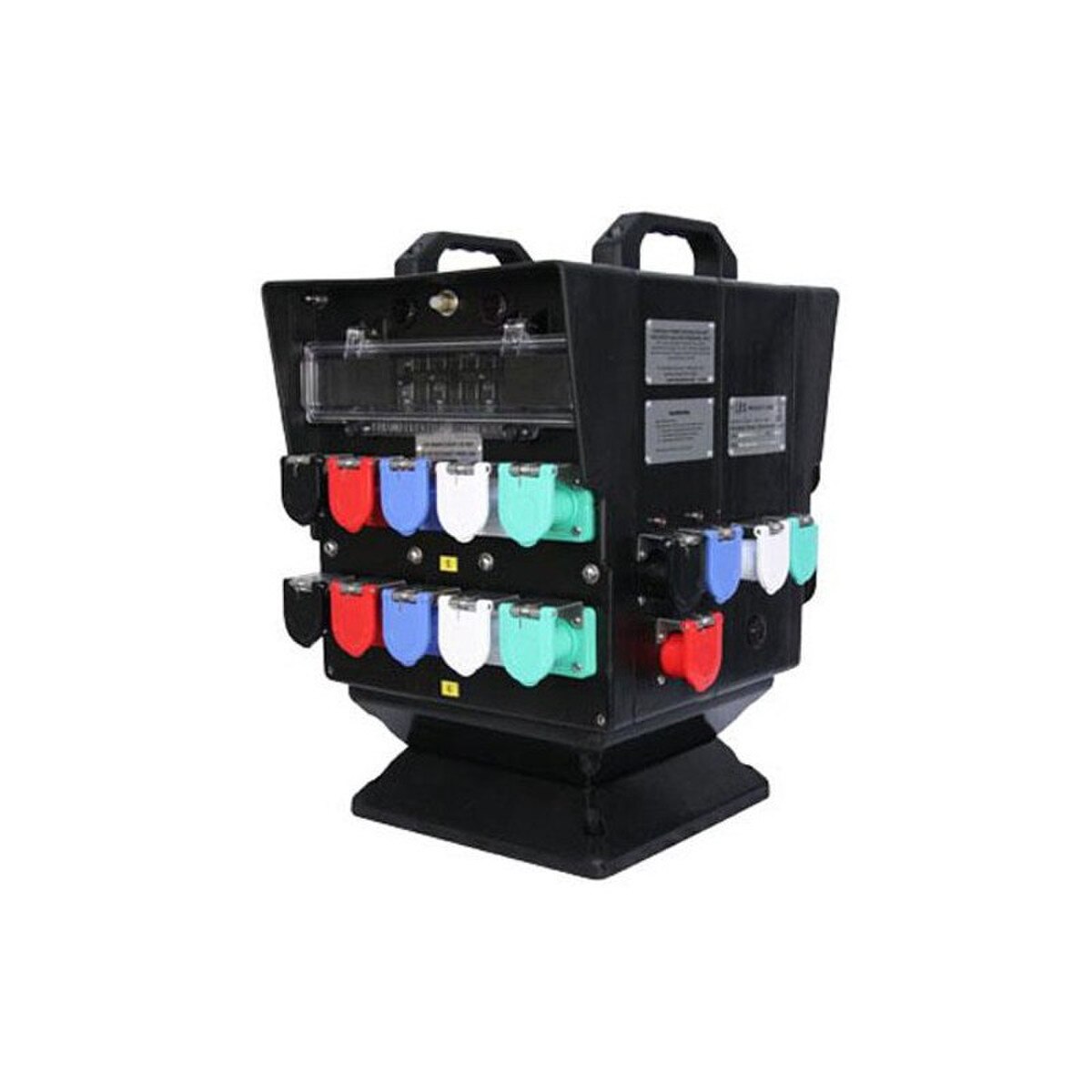

Lex 400A Cam Panel Mount Inlet - Duplex Receptacles - Reverse Ground & Neutral

Description:
400 Amp, 3 Phase, 4 Pole, 5 Wire, 120/208Y VAC, Hammerhead Enclosure, (1) set of (5) 16 Series Cam-type color-coded panel mount inlets to (4) sets of (5) 16 Series Cam-type color-coded panel mount outlets and (2) NEMA 5-20, 20 Amp duplex receptacles, NEMA 3R Weather Resistant.

Typical Application:
This Hammerhead portable power distribution box breaks 400 Amp, 3 Phase, 4 Pole, 5 Wire power into (4) sets of 100 Amp, 3 Phase, 4 Pole, 5 Wire overcurrent protected circuits to power shelters, small concerts and other portable distribution units. The (2) NEMA 5-20, 20 Amp duplex receptacles provide convenient power for small tools, lights and fans.

Features & Benefits

• Heavy-duty molded rubber enclosure is fully insulated and resistant to shock, impact and corrosion
• Breakers mounted under hinged window for easy access and enhanced safety
• Compact for convenient portability
• Elevated base keeps receptacles above ground level

Specifications

• Rating 400 Amp, 3 Phase (H,H,H,N,G), 4 Pole, 5 Wire, 120/208Y VAC
• Environmental Rating NEMA 3R Weather Resistant
• Input (1) set of (5) 16 Series Cam-type color-coded panel mount inlets
• Output (4) sets of (5) 16 Series Cam-type colorcoded
• panel mount outlets; (2) NEMA 5-20, 20 Amp, 2 Pole, 3 Wire,
• 120 VAC duplex receptacles
• Feed Thru None
• Overcurrent Protection (2) 20 Amp, Single Pole branch-rated circuit breakers; (4) 100 Amp, 3 Pole branch-rated circuit breakers
• Dimensions 15" x 18" x 22"
