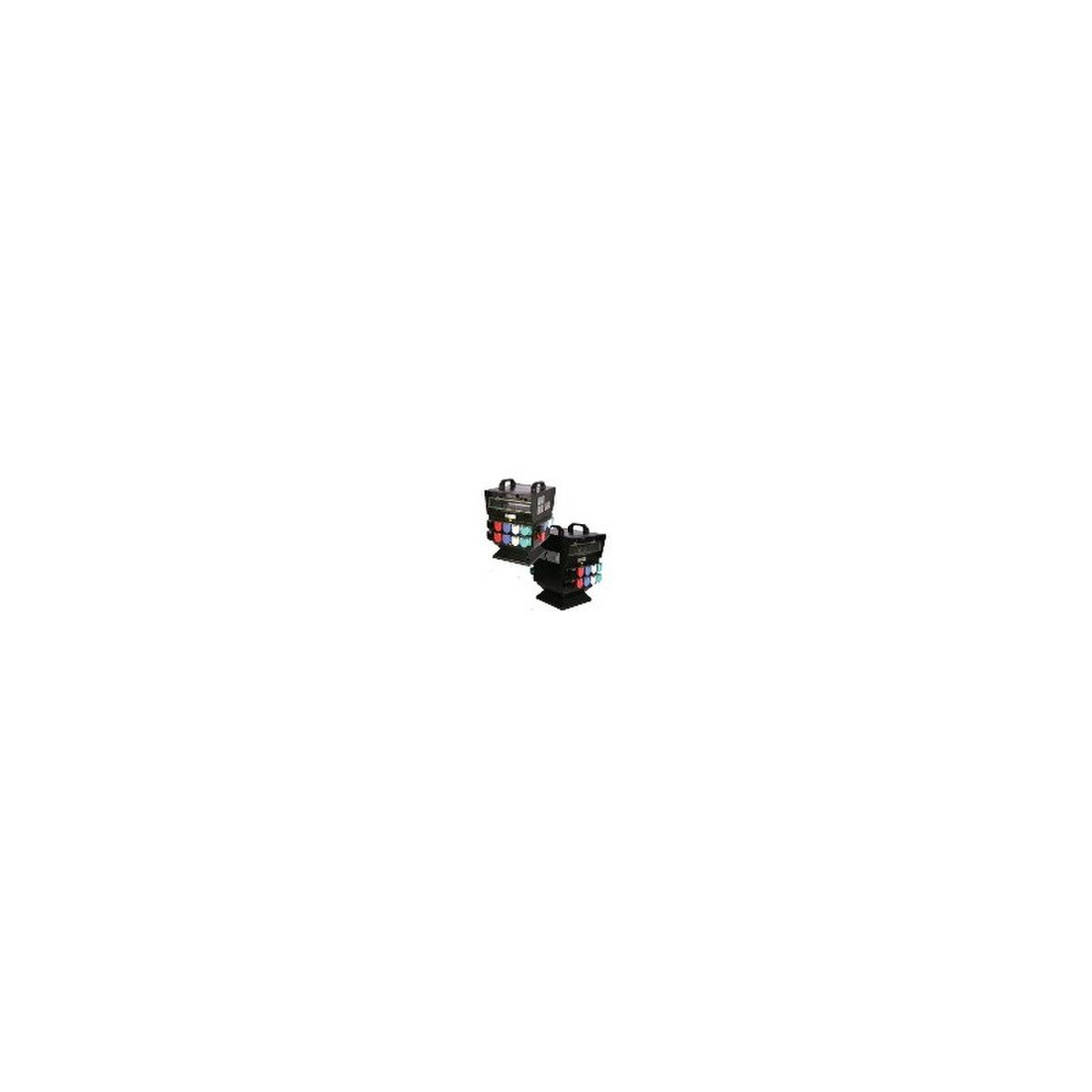

Lex 400A Cam Panel Mount Inlet - Splitter Box - GFCI Duplex Receptacles - Reverse Ground and Neutral
Details
Description: 400 Amp, 3 Phase, 4 Pole, 5 Wire, 120/208Y VAC, Hammerhead Enclosure, (1) set of (5) 16 Series Cam-type color-coded panel mount inlets to (4) sets of (5) 16 Series Cam-type color-coded panel mount outlets and (2) NEMA 5-20, 20 Amp GFCI duplex receptacles, NEMA 3R Weather Resistant.
Typical Application: This Hammerhead portable power distribution box breaks 400 Amp, 3 Phase, 4 Pole, 5 Wire power into (4) sets of 100 Amp, 3 Phase, 4 Pole, 5 Wire overcurrent protected circuits to power shelters, small concerts and other portable distribution units. The (2) NEMA 5-20, 20 Amp duplex receptacles provide convenient power for small tools, lights and fans.
Features & Benefits
Specifications
Typical Application: This Hammerhead portable power distribution box breaks 400 Amp, 3 Phase, 4 Pole, 5 Wire power into (4) sets of 100 Amp, 3 Phase, 4 Pole, 5 Wire overcurrent protected circuits to power shelters, small concerts and other portable distribution units. The (2) NEMA 5-20, 20 Amp duplex receptacles provide convenient power for small tools, lights and fans.
Features & Benefits
- Heavy-duty molded rubber enclosure is fully insulated and resistant to shock, impact and corrosion
- Breakers mounted under hinged window for easy access and enhanced safety
- Compact for convenient portability
- Elevated base keeps receptacles above ground level
Specifications
- Rating 400 Amp, 3 Phase (H,H,H,N,G), 4 Pole, 5 Wire, 120/208Y VAC
- Environmental Rating NEMA 3R Weather Resistant
- Input (1) set of (5) 16 Series Cam-type colorcoded panel mount inlets
- Output (4) sets of (5) 16 Series Cam-type colorcoded panel mount outlets (2) NEMA 5-20, 20 Amp, 2 Pole, 3 Wire, 120 VAC, GFCI duplex receptacles
- Feed Thru None
- Overcurrent Protection (2) 20 Amp, Single Pole branch-rated circuit breakers (4) 100 Amp, 3 Pole branch-rated circuit breakers
- Dimensions 15" x 18" x 22"
