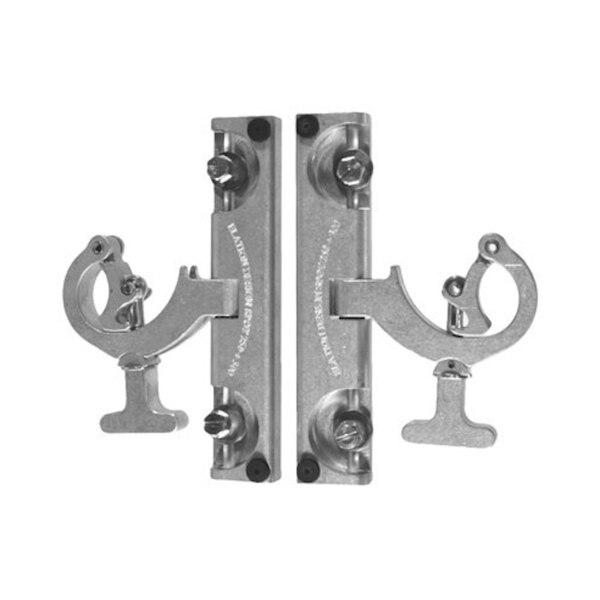

Light Source Elation 250 Spot Mega-Folder - Aluminum Finish - Light Source MF-ELATION250SPOT

The Mega-Folder is designed for moving yoke intelligent lights. It will fold flat to go into your case, or for use as a floor stand. Fold it up to use it as a truss clamp.


The Mega-Folder fastens from 1" OD truss tube to 2" OD truss tube. It fastens to your fixtures with either a 1/2" bolt or the quarter turn cam-locks used on omega brackets. The Mega-Folder is designed to be used in pairs. Load rated at 400 pounds.

This product is designed for use with the Elation 250 Spot lighting fixture.

Specifications:

• Minimum Size: 1" tubing, 3/4" pipe, 1.050" OD pipe
• Maximum Size: 2" OD truss tube, 1.5" pipe, 1.90" OD pipe
• Safe Vertical Working Load: 400 lbs (182 kg)
• Weight: 2.4 lbs
