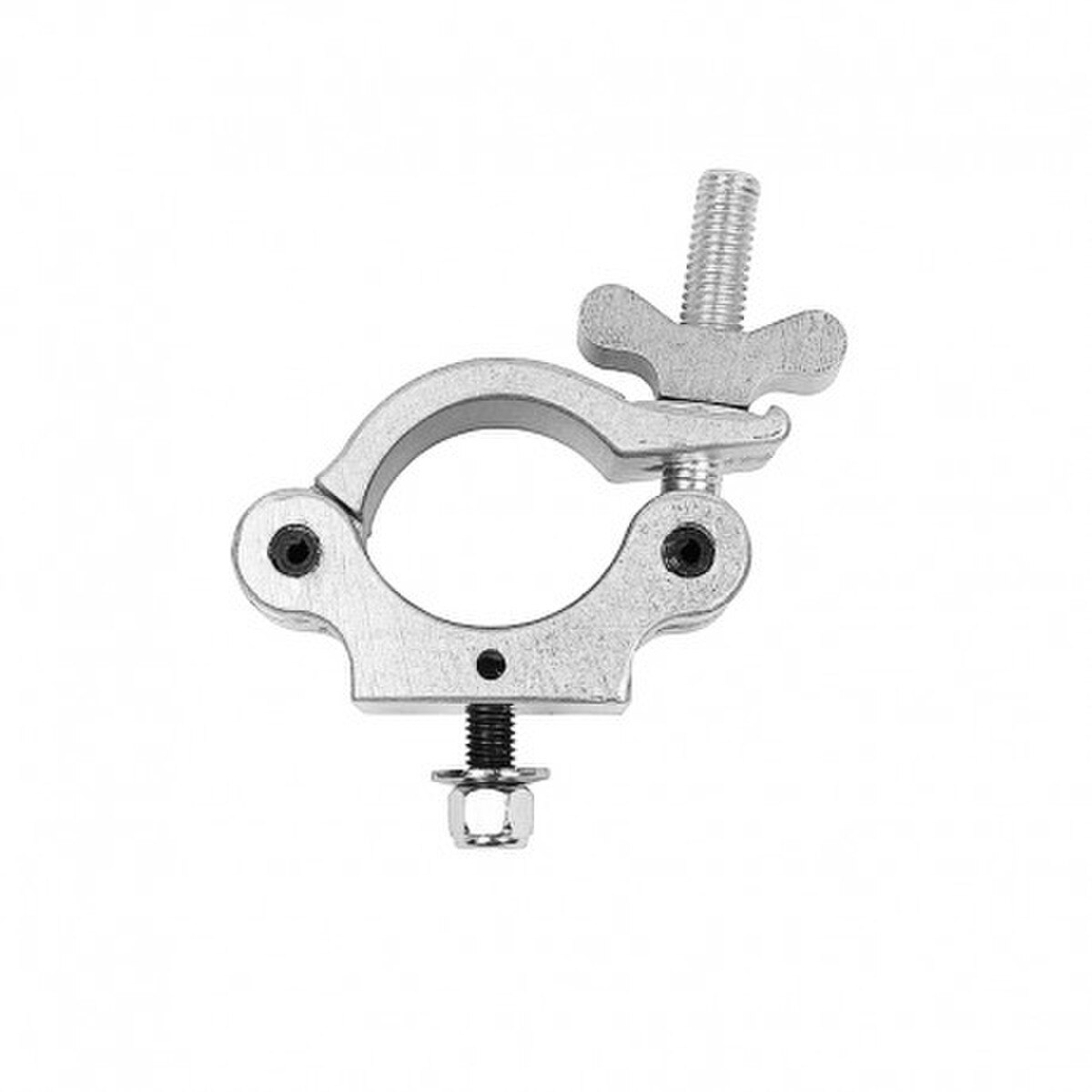

Light Source Mega Coupler with 3/8in. Hex Head Bolt - Aluminum Finish - Light Source MLM3/8

(0)No Reviews yet
$31.64
QuantityPrice
1 – 11$31.64
12 – 23$30.06
24 – 35$29.27
36 – 47$28.48
48 +$27.69
SKU: Light Source MLM3-8

Details

Light Source's Mega-Coupler has solid nut tabs that wont break off. The Mega-Coupler uses standard half inch by 1-1/4 inch long hex head grade 8 bolts to secure your load.

The bolt head locks into a hex milled pocket so that you can tighten the nyloc nut while the clamp is installed. It has an industry compatible 14 mm thick base. The Mega-Coupler fastens from (1-1/4" Pipe) 1.66" OD to 2" OD truss tubes.


Specifications:

  • Minimum Size: 1.25" pipe, 1.66" OD pipe
  • Maximum Size: 1.5" pipe, 1.90" OD pipe, 2" OD truss tube
  • Safe Vertical Working Load: 1,100 lbs (500kg)
  • Hardware:
    • 3/8 x 1.5" Hex Head grade 8 zinc plated steel bolt with nylock nut
    • 1" Belleville Washer
  • Weight: 1.2 lbs

Quick_Reference_Guide_51721_File_1.pdf
