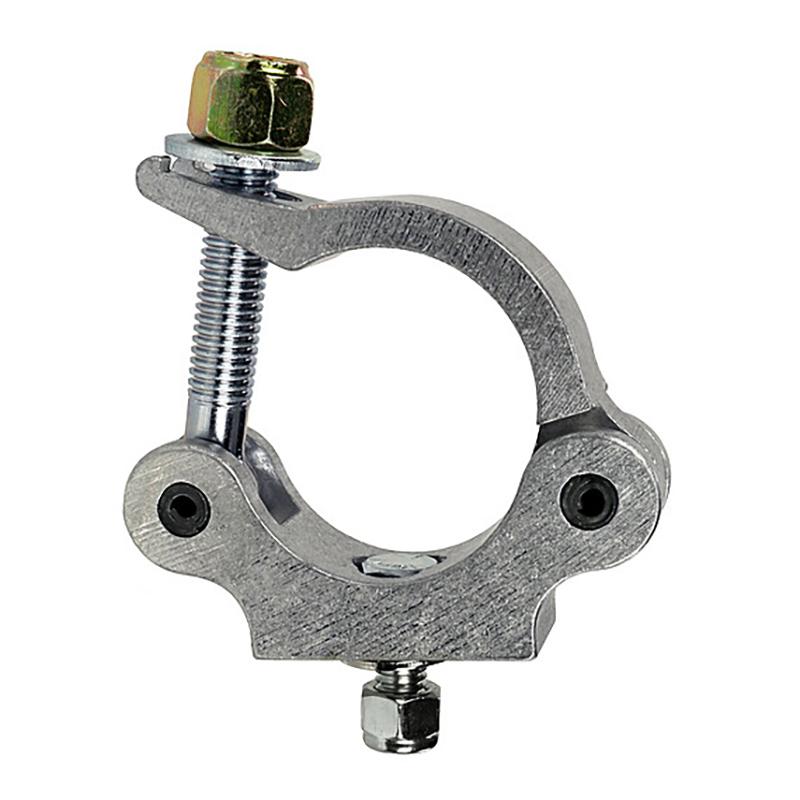

Light Source Mega-Slim Coupler with 3/8" x 1" Long Hex Head Bolt with Nylock Nut - Silver

The Mega Slim Coupler is a lower profile option for smaller light fixtures. It is half the size of our standard Mega-Coupler and weighs 30% less; yet fits the same as the Mega-Coupler.

The Mega Slim will fasten from 1-1/4" pipe (1.66 OD) to 2.050 OD Truss Tube. It has a wide wing nut for easy fastening of the coupler to the pipe or tube as well as a hex pocket for 3/8" bolt. Includes 3/8"x1" zinc plated bolt with nylock nut and spring washer. The bolt fits flush into the Coupler.

The Mega Slim Coupler is also available with a 3/8" or 1/2" Flat Head Countersunk Bolt.

Specifications:
Minimum Size:

• 1.25" pipe, 1.66 OD pipe

Maximum Size:

• 1.5" pipe, 1.90 OD pipe, 2.050" OD Truss Tube

Working Load Limit:

• 500 lbs

Hardware:

• 3/8" x 1" Hex Cap Screw Belleville Washer Nylock Nut

Weight:

• 0.65 lbs.
