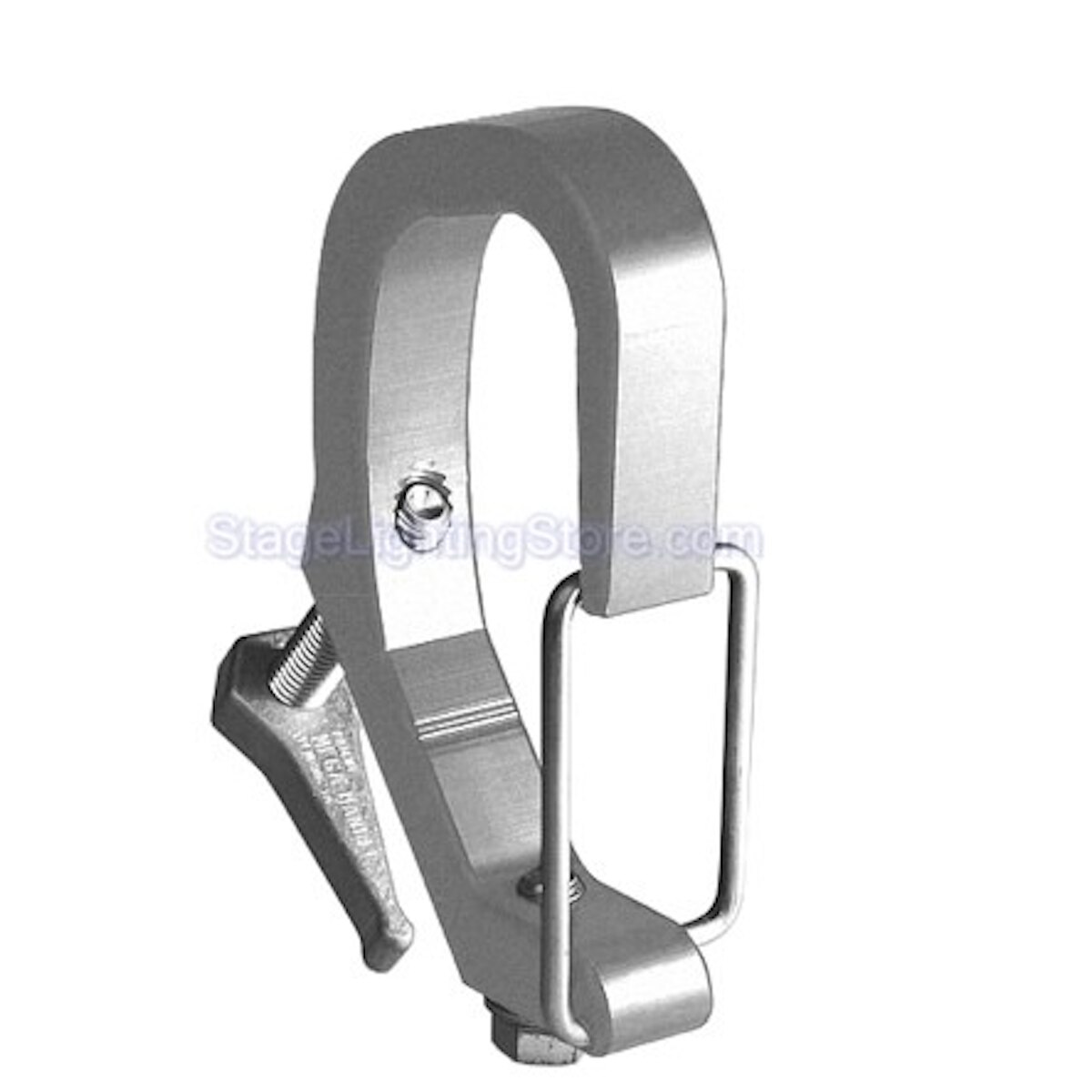

Light Source Safety-Clamp - Aluminum Finish - Light Source MYM
Details
Perfect for high catwalks and educational facilities with less experienced crews. Snaps onto the pipe with a carabiner style latch and cannot fall off (except off the end of the pipe!) Easily fastens to 1-1/4" pipe (1.66" OD), 1-1/2" pipe (1.9" OD), and 2" truss tube with included handle.
Specifications:
- Minimum Size: 1.25"pipe, 1.66" OD
- Maximum Size: 1.5" pipe, 1.9" OD
- Safe Vertical Working Load: 250 lbs
- Hardware: 1/2" -13 tpi x 1" Grade 5 hex head bolt
- Dimensions: 6 3/8" tall x 4" wide x 1" thick. Add 1/2" to width for safety latch.
- Weight: 1.2 lbs
Spec_Sheet_51721_File_2.pdf
Quick_Reference_Guide_51721_File_1.pdf
