Lightronics Rack Mount Dimmer - 8 Channel 2400W DMX-512 5-Pin with Socapex Outlet Panel
Details

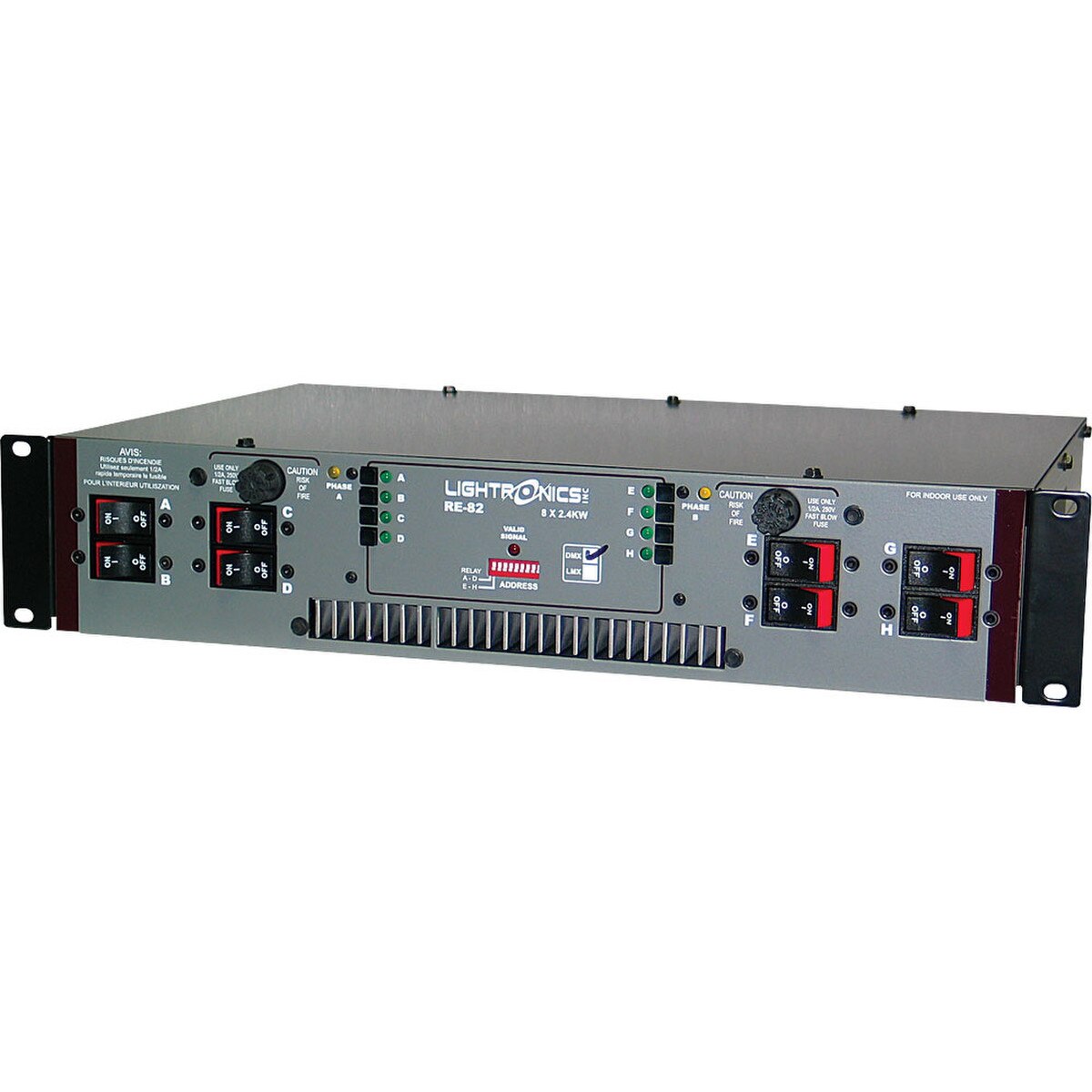

The RE82D is an 8 channel rack mount dimmer with a maximum capacity of 2,400W per channel giving a total of 19,200W. It is suitable for church, stage, theater, school, night club, live performances and other event and artistic applications.
The RE82D is controlled by a lighting console. The unit uses the DMX-512 control protocol. Channels A - D and/or channels E - H may be switched to operate in relay mode. In relay mode, channels are either full on or full off (non-dim) depending on console fader position. The unit is overcurrent and overtemperature protected. A fan is used to ensure proper cooling. Dimming channels may be reassigned in multiples of 4 channels via switches in the front panel.
Specifications:
- 8 Channels
- 2400W per Channel
- Fast Acting Magnetic Circuit Breakers
- Dim/Non-Dim Mode by Channel
- 120/240V 80 Amp
- DMX-512 Protocol
- UL-508 Compliant
Options:
- 230V - 230 Volt Operation
- ST - Stagepin Outlet Panel
- SO - Socapex Outlet Panel *Non UL-508 Compliant
- PL - Powerlock Outlet Panel *Non UL-508 Compliant
- DP - Edison Duplex Outlet Panel
- XT - Terminal / Barrier Connector Strip with Knockout Cover
Lightronics RE82D - SO cutsheet.pdf
Lightronics RE82D - SO - ST Manual.pdf
