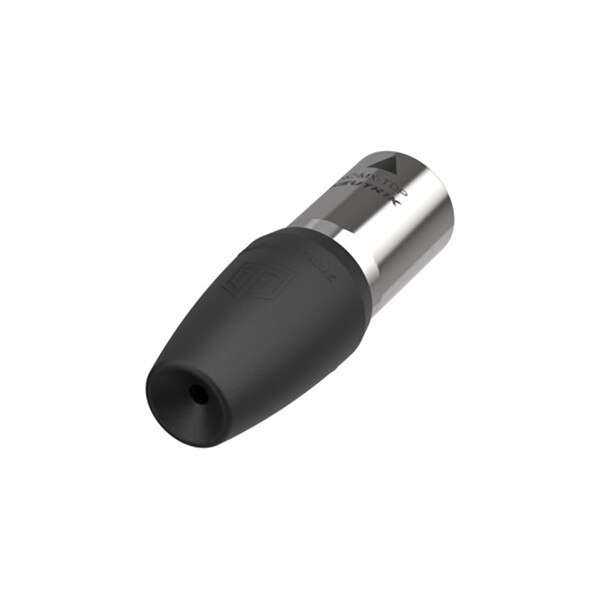

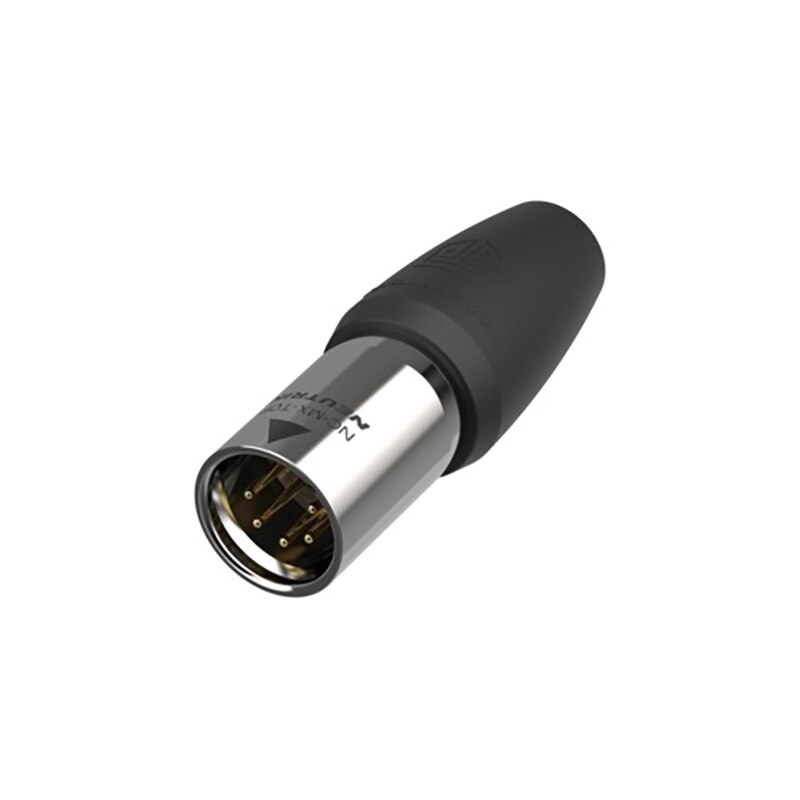

Neutrik NC5MX1-TOP 5 Pole Male Cable Connector

5 pole male cable connector, TRUE OUTDOOR PROTECTION (TOP), gold contacts

The X-TOP series is a "heavy-duty" XLR cable connector for outdoor use. Outdoor protected by mating with related cable/chassis connector of the XLR TOP range (IP65).

Gold contacts are standard.

Features & Benefits:

• Heavy-duty sealed XLR connector range for harsh and demanding environment
• Outdoor protection according to IP65
• Uses high impact UV resistant materials
• TOP-Approved in consideration of UL50E

Technical Information:

• Title: NC5MX1-TOP
• Connection Type: XLR
• Gender: male

Electrical:

• Capacitance between contacts: ≤ 4 pF
• Contact resistance: ≤ 3 mΩ
• Dielectric strength: 1,5 kVdc
• Insulation resistance: > 10 GΩ (initial)
• Rated current per contact: 7.5 A
• Rated voltage: < 50 V

Mechanical:

• Cable O.D.: 5.0 - 8.0 mm
• Insertion force: ≤ 20 N
• Withdrawal force: ≤ 20 N
• Lifetime: > 1000 mating cycles
• Wiresize: max. 1.0 mm²
• Wiresize: max. 18 AWG
• Wiring: Solder contacts
• Locking device: Latch lock

Material:

• Bushing: UV-resistant rubber
• Contact plating: Gold (Au) over Nickel (Ni)
• Contacts: Brass (CuZn39Pb3)
• Insert: Polyamide (PA 66)
• Locking element: Stainless steel
• Shell: Stainless steel
• Strain relief: Polyacetal

Environmental:

• Approvals: UL
• Flammability: UL 94 V-0
• Standard compliance: IEC 61076-2-103
• Protection class: IP65, UL50E enclosure type 4 (mated)
• Solderability: Complies with IEC 68-2-20
• Temperature range: -30 °C to +80 °C
