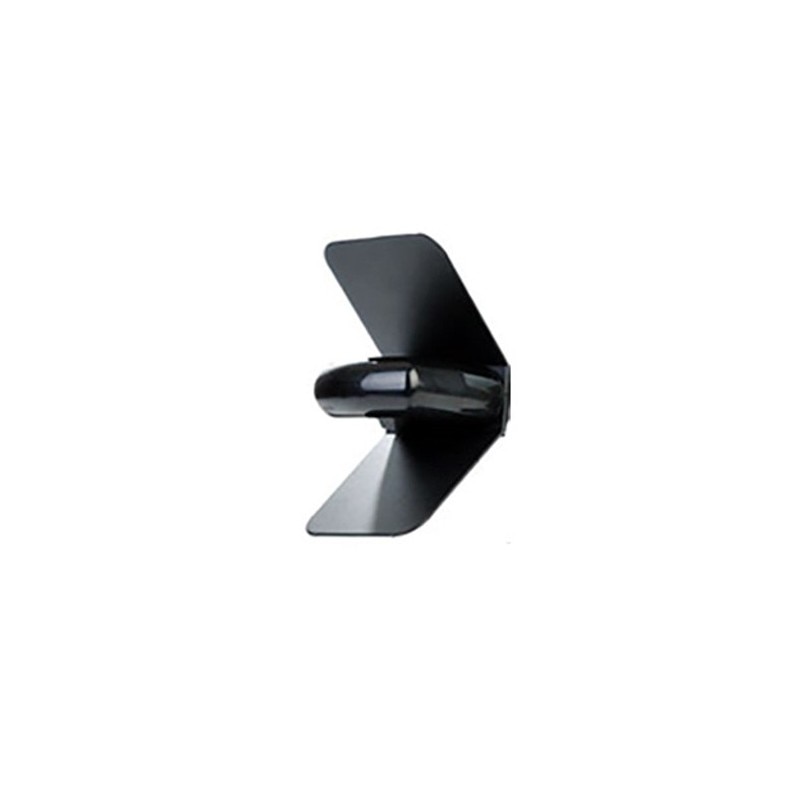

Pliant Technologies 2.4GHz 9 dBi Directional Corner Reflector Antenna

9 dBi Directional corner reflector antenna with N connector


Features:

• 9 dBi Mini model for 2.4 GHz applications
• Small aperture; minimizes wind loading
• Split balun feed provides superior bandwidth & gain performance

Specifications:

• Frequency: 2300 - 2600 MHz
• Gain: 9dBi
• Bandwidth@2:1 VSWR: 200 MHz or better
• Impedance: 50 Ohm nominal
• Maximum Power: 100 Watts
• Beamwidth: 75o El, 65o Az
• Front-to-Back ratio: 22 dB or better
• SCR11-SCR14 Panel Size: 7" x 7" ea. (178mm x 178mm)
• Aperture: 3" x 5.5" (76 mmx140 mm)
• Panel Size: 3" x 3" ea. (76 mm x 76 mm)Lightning Protection: DC grounded, external protection recommended
• Max Wind Velocity: 125+ mph (200 kph)
• Operating Temp: -40o to +85o C
• Material: Powder-coated aluminum, ABS plastic radome
• Weight: 1 lbs. (0.5 kg)
• Pole Mounting: Hardware included
• Mounting Dimension: Mounts up to 2" (51 mm) diameter mast
• Connector: N female, attached at rear of antenna

Warranty:

• Two Year Parts and Labor
